SN74LVC244ANSR

SN74LVC244ANSR Overview

This product is manufactured by Texas Instruments. Polarity type: Non-Inverting Supply Voltage - Max: 3.6 V Supply Voltage - Min: 1.65 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. SO-20 package/case type is utilized by this product. Reel packaging for easy dispensing t's a Buffer/Line Driver The height of the product is 1.95 mm. 12.6 mm long The output type is 3-State. Texas Instruments is a trusted brand for quality electronics The product uses the LVC logic family. CMOS. This product is equipped with 8 for efficient performance. Maximum supply current: 1 uA This product has a - 24 mA, ensuring reliable performance in demanding applications. Single-Ended is the input signal type. Low Level Output Current is 24 mA 1.65 V to 3.6 V operating supply voltage range 500 mW (1/2 W) Buffers & Line Drivers product type The propagation delay time is 6.7 ns at 2.7 V, 5.7 ns at 3.3 V. 2000 of 100 Logic ICs as subcategory 1. 0.009408 oz of Unit Weight

SN74LVC244ANSR Image

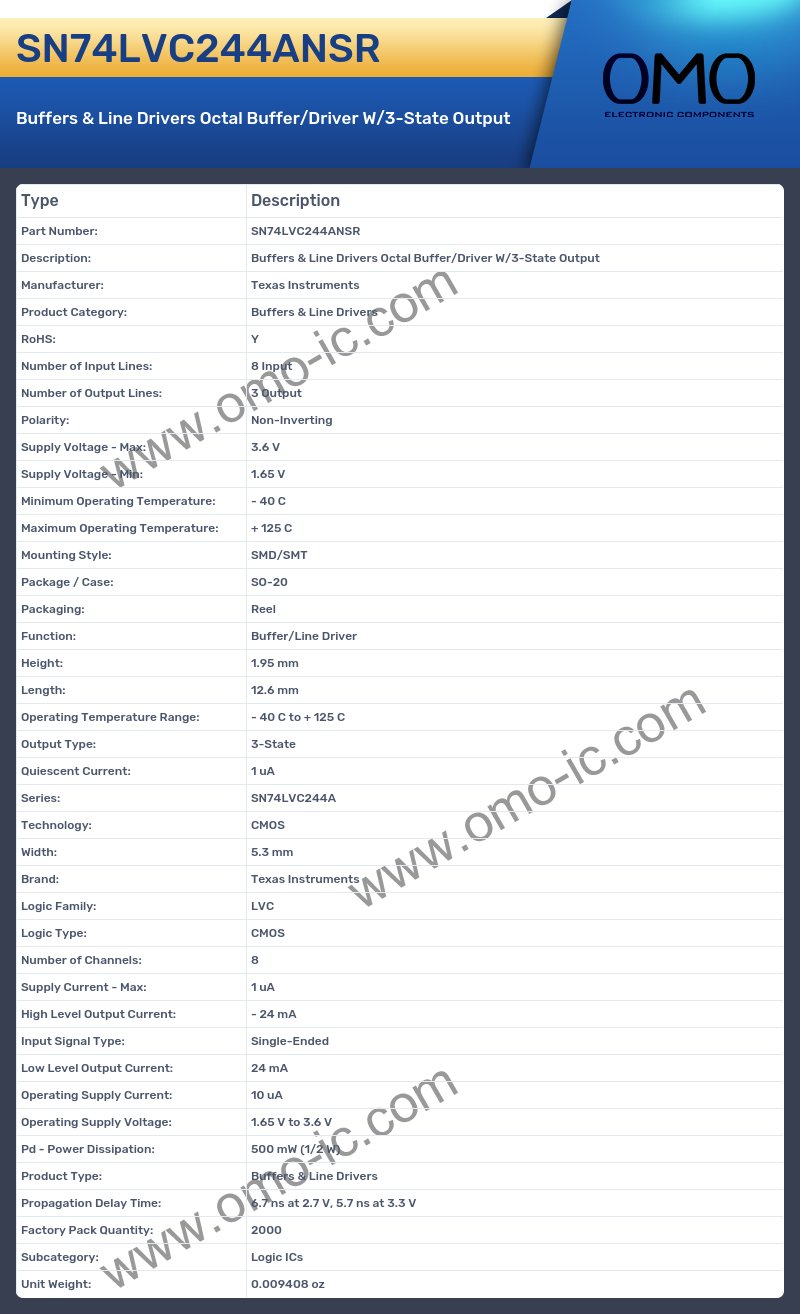

SN74LVC244ANSR Specifications

• Manufacturer: Texas Instruments
• Product Category: Buffers & Line Drivers
• RoHS: Y
• Number of Input Lines: 8 Input
• Number of Output Lines: 3 Output
• Polarity: Non-Inverting
• Supply Voltage - Max: 3.6 V
• Supply Voltage - Min: 1.65 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: SO-20
• Packaging: Reel
• Function: Buffer/Line Driver
• Height: 1.95 mm
• Length: 12.6 mm
• Operating Temperature Range: - 40 C to + 125 C
• Output Type: 3-State
• Quiescent Current: 1 uA
• Series: SN74LVC244A
• Technology: CMOS
• Width: 5.3 mm
• Brand: Texas Instruments
• Logic Family: LVC
• Logic Type: CMOS
• Number of Channels: 8
• Supply Current - Max: 1 uA
• High Level Output Current: - 24 mA
• Input Signal Type: Single-Ended
• Low Level Output Current: 24 mA
• Operating Supply Current: 10 uA
• Operating Supply Voltage: 1.65 V to 3.6 V
• Pd - Power Dissipation: 500 mW (1/2 W)
• Product Type: Buffers & Line Drivers
• Propagation Delay Time: 6.7 ns at 2.7 V, 5.7 ns at 3.3 V
• Factory Pack Quantity: 2000
• Subcategory: Logic ICs
• Unit Weight: 0.009408 oz
