SN74S04N

SN74S04N Overview

This product is manufactured by Texas Instruments. This product has 6 Circuit circuit. The product uses the S logic family. Bipolar. Supply Voltage - Max: 5.25 V Supply Voltage - Min: 4.75 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The product can operate at a maximum temperature of SMD/SMT. PDIP-14 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Inverter TTL input type The output type is CMOS. Texas Instruments is a trusted brand for quality electronics This product has a - 1 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 20 mA 5 V operating supply voltage range Inverters product type The propagation delay time is 5 ns. 25 of 100 Logic ICs as subcategory 1. 0.032734 oz of Unit Weight

SN74S04N Image

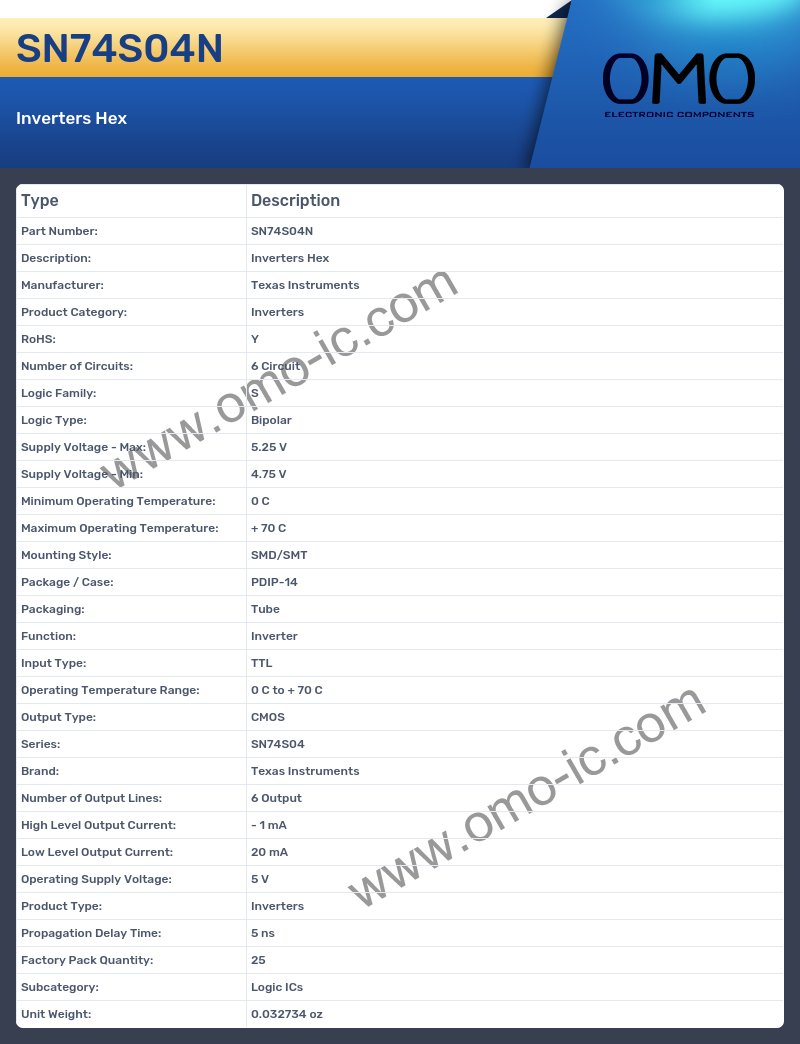

SN74S04N Specifications

• Manufacturer: Texas Instruments
• Product Category: Inverters
• RoHS: Y
• Number of Circuits: 6 Circuit
• Logic Family: S
• Logic Type: Bipolar
• Supply Voltage - Max: 5.25 V
• Supply Voltage - Min: 4.75 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Mounting Style: SMD/SMT
• Package / Case: PDIP-14
• Packaging: Tube
• Function: Inverter
• Input Type: TTL
• Operating Temperature Range: 0 C to + 70 C
• Output Type: CMOS
• Series: SN74S04
• Brand: Texas Instruments
• Number of Output Lines: 6 Output
• High Level Output Current: - 1 mA
• Low Level Output Current: 20 mA
• Operating Supply Voltage: 5 V
• Product Type: Inverters
• Propagation Delay Time: 5 ns
• Factory Pack Quantity: 25
• Subcategory: Logic ICs
• Unit Weight: 0.032734 oz
