STGWA80H65DFB

STGWA80H65DFB Overview

This product is manufactured by STMicroelectronics. TO-247-3 package/case type is utilized by this product. The product can operate at a maximum temperature of Through Hole. This product has a Single configuration. The maximum 650 V. The 2 V. Maximum gate emitter voltage is 20 V Continuous Collector Current at 25 C is 120 A 469 W The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 175 C. Max continuous collector current of 80 A The height of the product is 5.3 mm. 20.3 mm long STMicroelectronics is a trusted brand for quality electronics Gate-Emitter Leakage Current: 250 nA IGBT Transistors product type 600 of 100 IGBTs as subcategory 1. 1.340411 oz of Unit Weight

STGWA80H65DFB Image

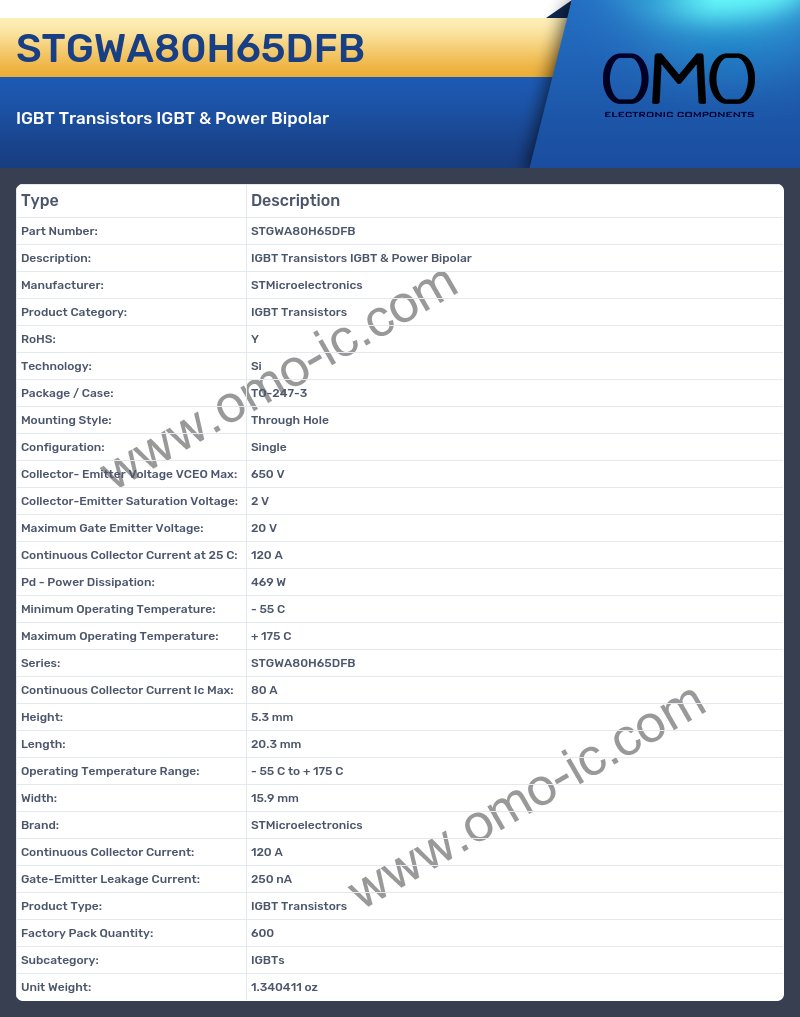

STGWA80H65DFB Specifications

• Manufacturer: STMicroelectronics
• Product Category: IGBT Transistors
• RoHS: Y
• Technology: Si
• Package / Case: TO-247-3
• Mounting Style: Through Hole
• Configuration: Single
• Collector- Emitter Voltage VCEO Max: 650 V
• Collector-Emitter Saturation Voltage: 2 V
• Maximum Gate Emitter Voltage: 20 V
• Continuous Collector Current at 25 C: 120 A
• Pd - Power Dissipation: 469 W
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 175 C
• Series: STGWA80H65DFB
• Continuous Collector Current Ic Max: 80 A
• Height: 5.3 mm
• Length: 20.3 mm
• Operating Temperature Range: - 55 C to + 175 C
• Width: 15.9 mm
• Brand: STMicroelectronics
• Continuous Collector Current: 120 A
• Gate-Emitter Leakage Current: 250 nA
• Product Type: IGBT Transistors
• Factory Pack Quantity: 600
• Subcategory: IGBTs
• Unit Weight: 1.340411 oz
