STL260N3LLH6

STL260N3LLH6 Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. PowerFLAT-5x6-8 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 30 V 260 A continuous drain current Rds On value of 1.3 mOhms Gate-Source Threshold Voltage Range: 1 V Gate-Source Voltage: 20 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 175 C. 166 W This product has a Single configuration. The Channel Mode is set to Enhancement. The product's STripFET is Blue Gecko. Reel packaging for easy dispensing STMicroelectronics is a trusted brand for quality electronics 54 ns fall time MOSFET product type Rise Time is 32 ns. 3000 of 100 MOSFETs as subcategory Turn-off delay time is 107.5 ns. The typical turn-on delay time is 22.5 ns.

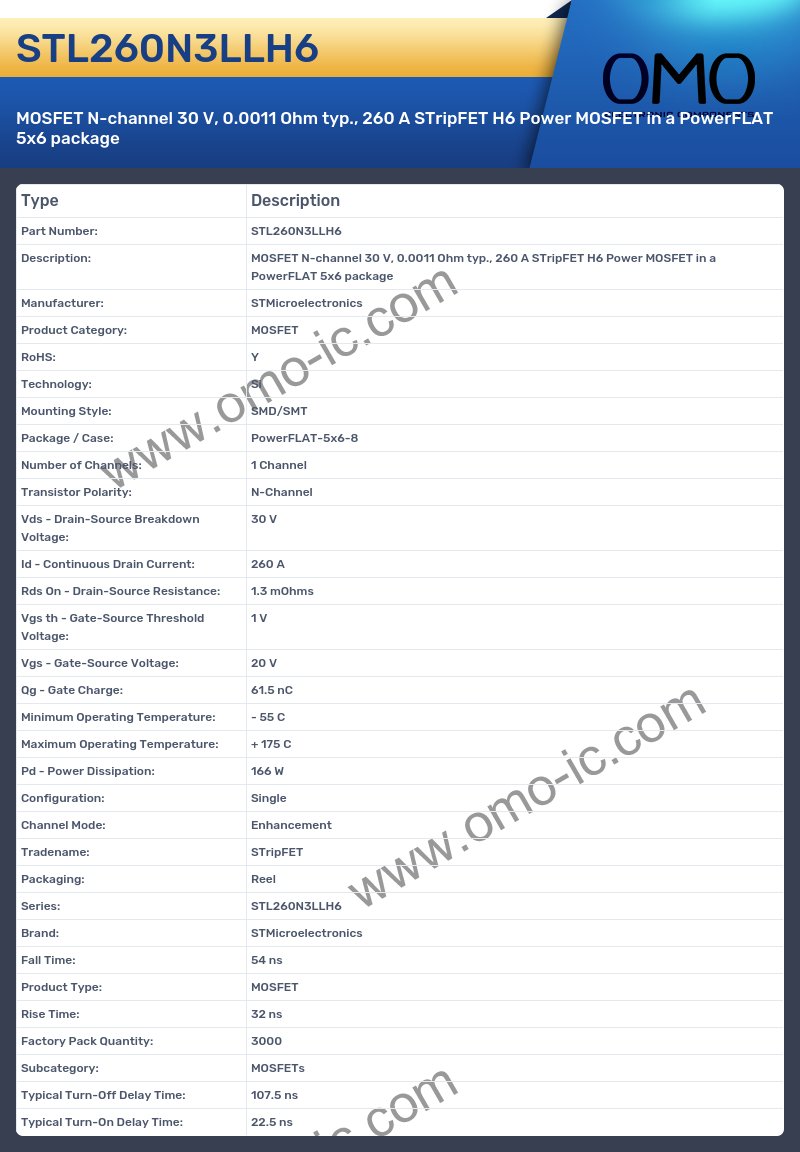

STL260N3LLH6 Image

STL260N3LLH6 Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: PowerFLAT-5x6-8
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 30 V
• Id - Continuous Drain Current: 260 A
• Rds On - Drain-Source Resistance: 1.3 mOhms
• Vgs th - Gate-Source Threshold Voltage: 1 V
• Vgs - Gate-Source Voltage: 20 V
• Qg - Gate Charge: 61.5 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 175 C
• Pd - Power Dissipation: 166 W
• Configuration: Single
• Channel Mode: Enhancement
• Tradename: STripFET
• Packaging: Reel
• Series: STL260N3LLH6
• Brand: STMicroelectronics
• Fall Time: 54 ns
• Product Type: MOSFET
• Rise Time: 32 ns
• Factory Pack Quantity: 3000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 107.5 ns
• Typical Turn-On Delay Time: 22.5 ns
