STP220N6F7

STP220N6F7 Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of Through Hole. TO-220-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 60 V 120 A continuous drain current Rds On value of 2.4 mOhms Gate-Source Threshold Voltage Range: 4 V Gate-Source Voltage: 20 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 175 C. 237 W This product has a Single configuration. The Channel Mode is set to Enhancement. The product's STripFET is Blue Gecko. Tube packaging for easy dispensing The height of the product is 4.6 mm. 15.75 mm long STMicroelectronics is a trusted brand for quality electronics 29 ns fall time MOSFET product type Rise Time is 103 ns. 1000 of 100 MOSFETs as subcategory Turn-off delay time is 54 ns. The typical turn-on delay time is 33 ns. 1. 0.011640 oz of Unit Weight

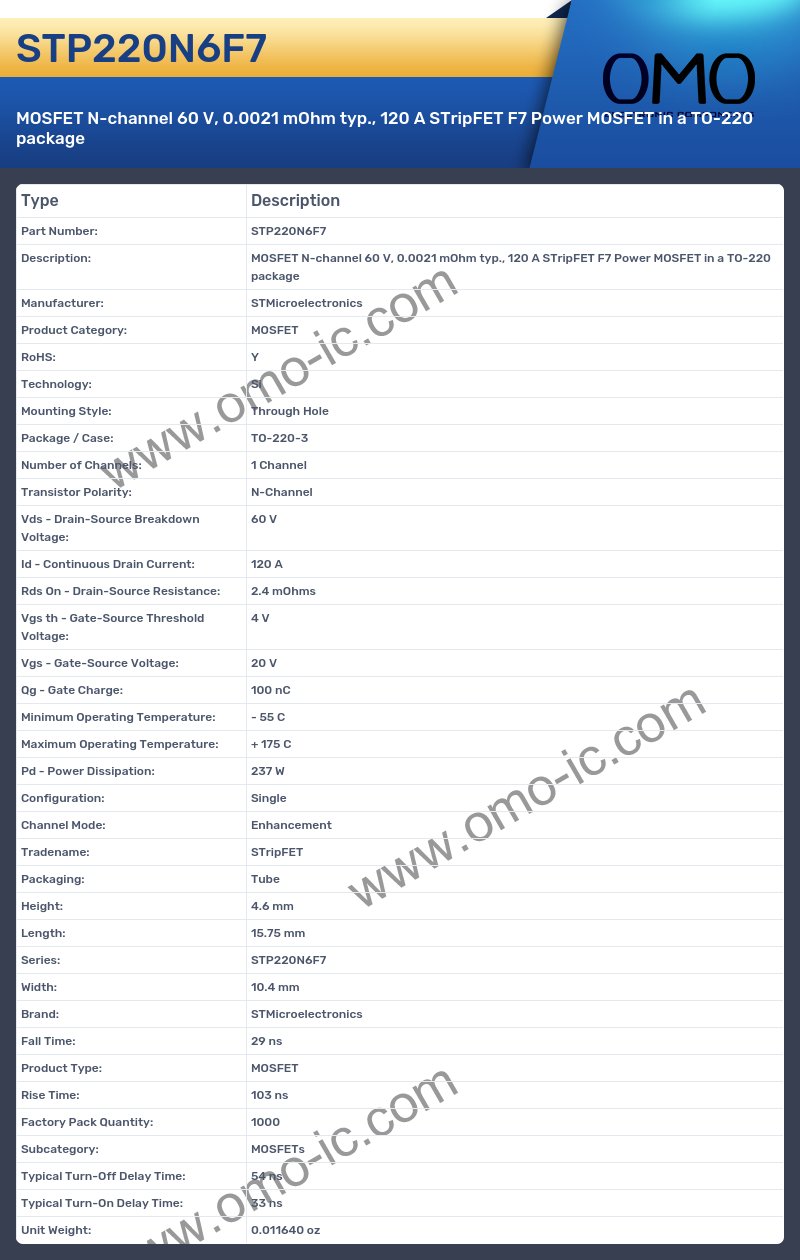

STP220N6F7 Image

STP220N6F7 Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: Through Hole
• Package / Case: TO-220-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 60 V
• Id - Continuous Drain Current: 120 A
• Rds On - Drain-Source Resistance: 2.4 mOhms
• Vgs th - Gate-Source Threshold Voltage: 4 V
• Vgs - Gate-Source Voltage: 20 V
• Qg - Gate Charge: 100 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 175 C
• Pd - Power Dissipation: 237 W
• Configuration: Single
• Channel Mode: Enhancement
• Tradename: STripFET
• Packaging: Tube
• Height: 4.6 mm
• Length: 15.75 mm
• Series: STP220N6F7
• Width: 10.4 mm
• Brand: STMicroelectronics
• Fall Time: 29 ns
• Product Type: MOSFET
• Rise Time: 103 ns
• Factory Pack Quantity: 1000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 54 ns
• Typical Turn-On Delay Time: 33 ns
• Unit Weight: 0.011640 oz
