STP62NS04Z

STP62NS04Z Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of Through Hole. TO-220-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 33 V 62 A continuous drain current Rds On value of 15 mOhms Gate-Source Threshold Voltage Range: 2 V Gate-Source Voltage: 10 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 175 C. 110 W This product has a Single configuration. The Channel Mode is set to Enhancement. The product's MESH OVERLAY is Blue Gecko. The height of the product is 9.15 mm. 10.4 mm long The Transistor Type is 1 N-Channel. This device belongs to the MOSFET type. STMicroelectronics is a trusted brand for quality electronics 42 ns fall time MOSFET product type Rise Time is 104 ns. 1000 of 100 MOSFETs as subcategory Turn-off delay time is 41 ns. The typical turn-on delay time is 13 ns. 1. 0.050717 oz of Unit Weight

STP62NS04Z Image

STP62NS04Z Specifications

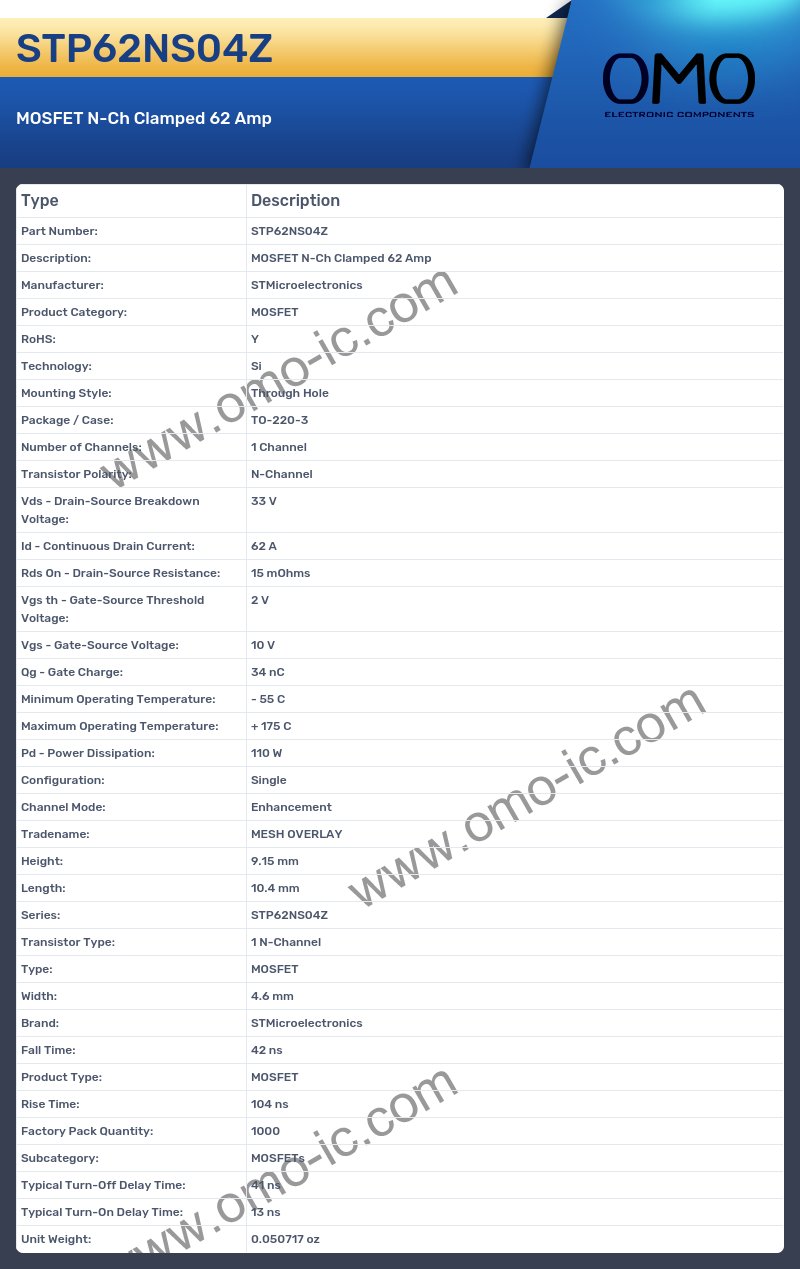

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: Through Hole
• Package / Case: TO-220-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 33 V
• Id - Continuous Drain Current: 62 A
• Rds On - Drain-Source Resistance: 15 mOhms
• Vgs th - Gate-Source Threshold Voltage: 2 V
• Vgs - Gate-Source Voltage: 10 V
• Qg - Gate Charge: 34 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 175 C
• Pd - Power Dissipation: 110 W
• Configuration: Single
• Channel Mode: Enhancement
• Tradename: MESH OVERLAY
• Height: 9.15 mm
• Length: 10.4 mm
• Series: STP62NS04Z
• Transistor Type: 1 N-Channel
• Type: MOSFET
• Width: 4.6 mm
• Brand: STMicroelectronics
• Fall Time: 42 ns
• Product Type: MOSFET
• Rise Time: 104 ns
• Factory Pack Quantity: 1000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 41 ns
• Typical Turn-On Delay Time: 13 ns
• Unit Weight: 0.050717 oz
