STP9NK60Z

STP9NK60Z Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of Through Hole. TO-220-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 600 V 7 A continuous drain current Rds On value of 950 mOhms Gate-Source Voltage: 30 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 125 W This product has a Single configuration. The Channel Mode is set to Enhancement. The product's SuperMESH is Blue Gecko. Tube packaging for easy dispensing The height of the product is 9.15 mm. 10.4 mm long The Transistor Type is 1 N-Channel. This device belongs to the MOSFET type. STMicroelectronics is a trusted brand for quality electronics 15 ns fall time MOSFET product type Rise Time is 17 ns. 1000 of 100 MOSFETs as subcategory Turn-off delay time is 43 ns. The typical turn-on delay time is 19 ns. 1. 0.050717 oz of Unit Weight

STP9NK60Z Image

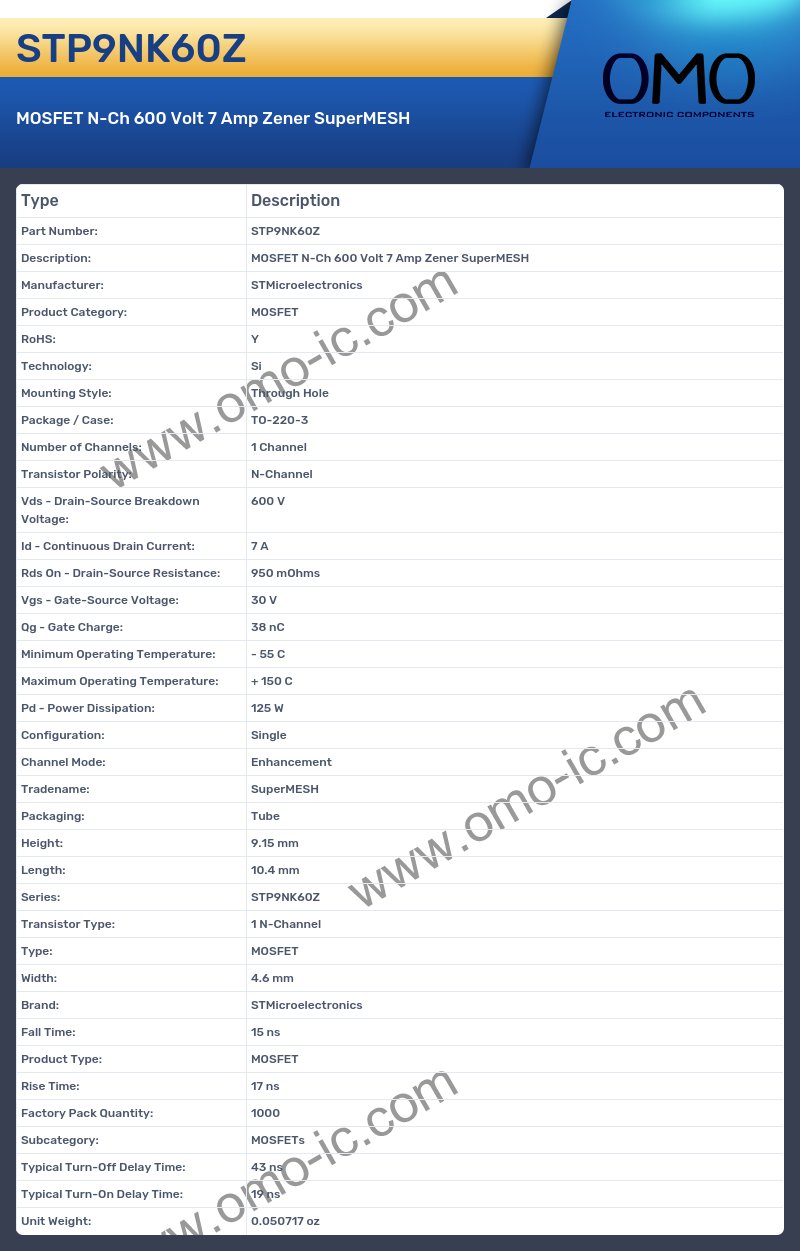

STP9NK60Z Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: Through Hole
• Package / Case: TO-220-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 600 V
• Id - Continuous Drain Current: 7 A
• Rds On - Drain-Source Resistance: 950 mOhms
• Vgs - Gate-Source Voltage: 30 V
• Qg - Gate Charge: 38 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 125 W
• Configuration: Single
• Channel Mode: Enhancement
• Tradename: SuperMESH
• Packaging: Tube
• Height: 9.15 mm
• Length: 10.4 mm
• Series: STP9NK60Z
• Transistor Type: 1 N-Channel
• Type: MOSFET
• Width: 4.6 mm
• Brand: STMicroelectronics
• Fall Time: 15 ns
• Product Type: MOSFET
• Rise Time: 17 ns
• Factory Pack Quantity: 1000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 43 ns
• Typical Turn-On Delay Time: 19 ns
• Unit Weight: 0.050717 oz
