STS4DNF60L

STS4DNF60L Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. SO-8 package/case type is utilized by this product. This product is equipped with 2 Channel for efficient performance. Vds rating of 60 V 4 A continuous drain current Rds On value of 55 mOhms Gate-Source Threshold Voltage Range: 1 V Gate-Source Voltage: 10 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 2 W This product has a Dual configuration. The Channel Mode is set to Enhancement. The product's STripFET is Blue Gecko. Reel packaging for easy dispensing The height of the product is 1.65 mm. 5 mm long The Transistor Type is 2 N-Channel Power MOSFET. This device belongs to the Power MOSFET type. STMicroelectronics is a trusted brand for quality electronics Minimum forward transconductance of 25 S 10 ns fall time MOSFET product type Rise Time is 28 ns. 2500 of 100 MOSFETs as subcategory Turn-off delay time is 45 ns. The typical turn-on delay time is 15 ns. 1. 0.002998 oz of Unit Weight

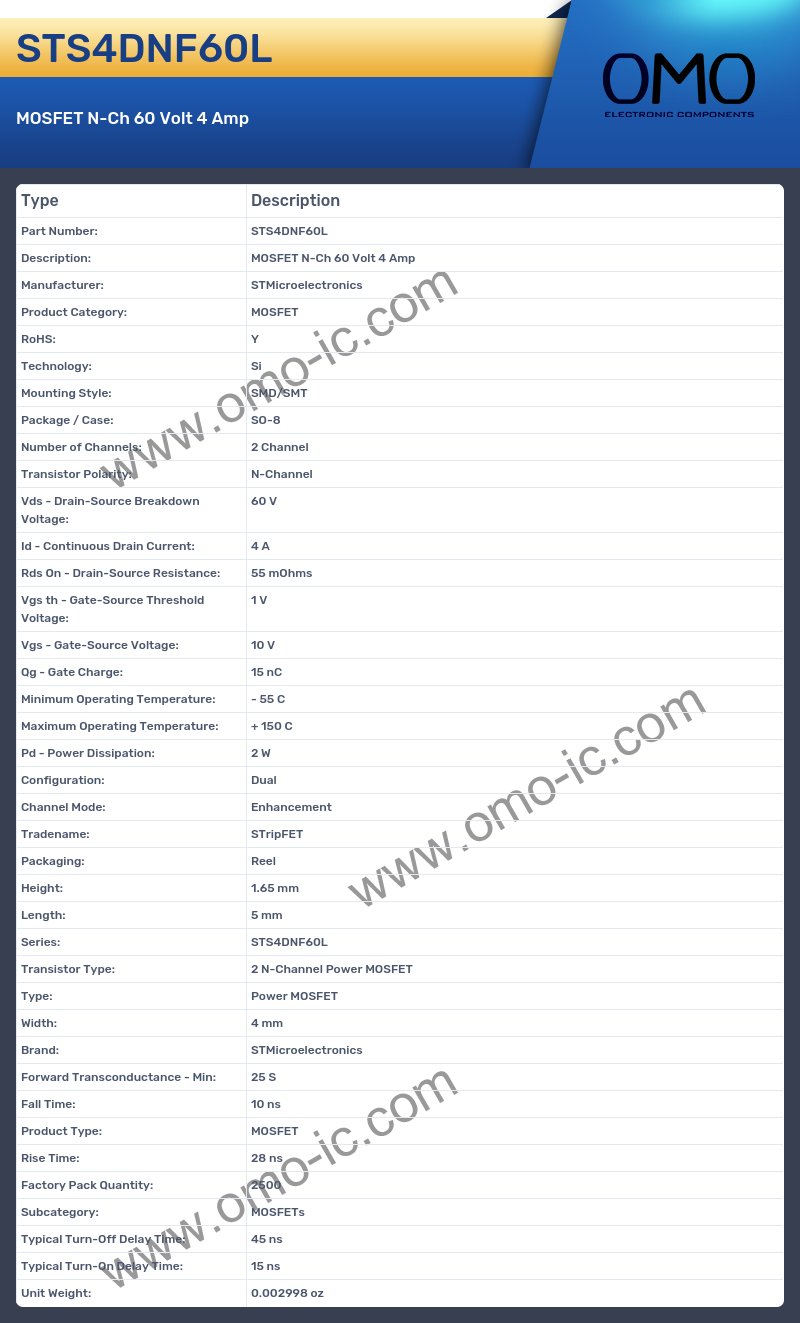

STS4DNF60L Image

STS4DNF60L Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: SO-8
• Number of Channels: 2 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 60 V
• Id - Continuous Drain Current: 4 A
• Rds On - Drain-Source Resistance: 55 mOhms
• Vgs th - Gate-Source Threshold Voltage: 1 V
• Vgs - Gate-Source Voltage: 10 V
• Qg - Gate Charge: 15 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 2 W
• Configuration: Dual
• Channel Mode: Enhancement
• Tradename: STripFET
• Packaging: Reel
• Height: 1.65 mm
• Length: 5 mm
• Series: STS4DNF60L
• Transistor Type: 2 N-Channel Power MOSFET
• Type: Power MOSFET
• Width: 4 mm
• Brand: STMicroelectronics
• Forward Transconductance - Min: 25 S
• Fall Time: 10 ns
• Product Type: MOSFET
• Rise Time: 28 ns
• Factory Pack Quantity: 2500
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 45 ns
• Typical Turn-On Delay Time: 15 ns
• Unit Weight: 0.002998 oz
