STV270N4F3

STV270N4F3 Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. PowerSO-10 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 40 V 270 A continuous drain current Rds On value of 1.25 Ohms Gate-Source Voltage: 20 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 175 C. 300 W This product has a Single configuration. The Channel Mode is set to Enhancement. The AEC-Q101 Qualification The product's STripFET is Blue Gecko. Reel packaging for easy dispensing The height of the product is 3.65 mm. 7.6 mm long The Transistor Type is 1 N-Channel. This device belongs to the Power MOSFETs type. STMicroelectronics is a trusted brand for quality electronics Minimum forward transconductance of 200 S 45 ns fall time MOSFET product type Rise Time is 180 ns. 600 of 100 MOSFETs as subcategory Turn-off delay time is 110 ns. The typical turn-on delay time is 25 ns.

STV270N4F3 Image

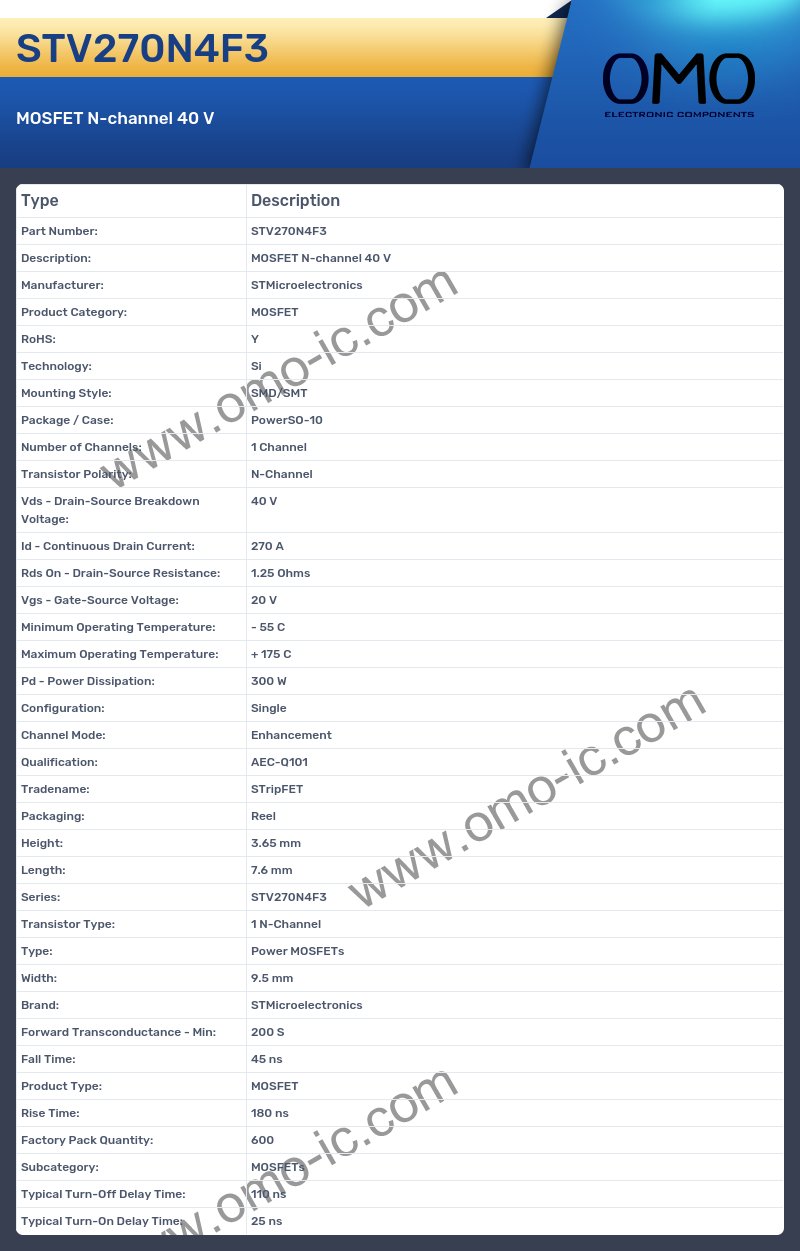

STV270N4F3 Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: PowerSO-10
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 40 V
• Id - Continuous Drain Current: 270 A
• Rds On - Drain-Source Resistance: 1.25 Ohms
• Vgs - Gate-Source Voltage: 20 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 175 C
• Pd - Power Dissipation: 300 W
• Configuration: Single
• Channel Mode: Enhancement
• Qualification: AEC-Q101
• Tradename: STripFET
• Packaging: Reel
• Height: 3.65 mm
• Length: 7.6 mm
• Series: STV270N4F3
• Transistor Type: 1 N-Channel
• Type: Power MOSFETs
• Width: 9.5 mm
• Brand: STMicroelectronics
• Forward Transconductance - Min: 200 S
• Fall Time: 45 ns
• Product Type: MOSFET
• Rise Time: 180 ns
• Factory Pack Quantity: 600
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 110 ns
• Typical Turn-On Delay Time: 25 ns
