STW56N65DM2

STW56N65DM2 Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of Through Hole. TO-247-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 650 V 48 A continuous drain current Rds On value of 58 mOhms Gate-Source Threshold Voltage Range: 3 V Gate-Source Voltage: 25 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 360 W This product has a Single configuration. The Channel Mode is set to Enhancement. The product's MDmesh is Blue Gecko. The Transistor Type is 1 N-Channel. STMicroelectronics is a trusted brand for quality electronics Minimum forward transconductance of - 7.7 ns fall time MOSFET product type Rise Time is 31 ns. 600 of 100 MOSFETs as subcategory Turn-off delay time is 157 ns. The typical turn-on delay time is 28 ns. 1. 1.340411 oz of Unit Weight

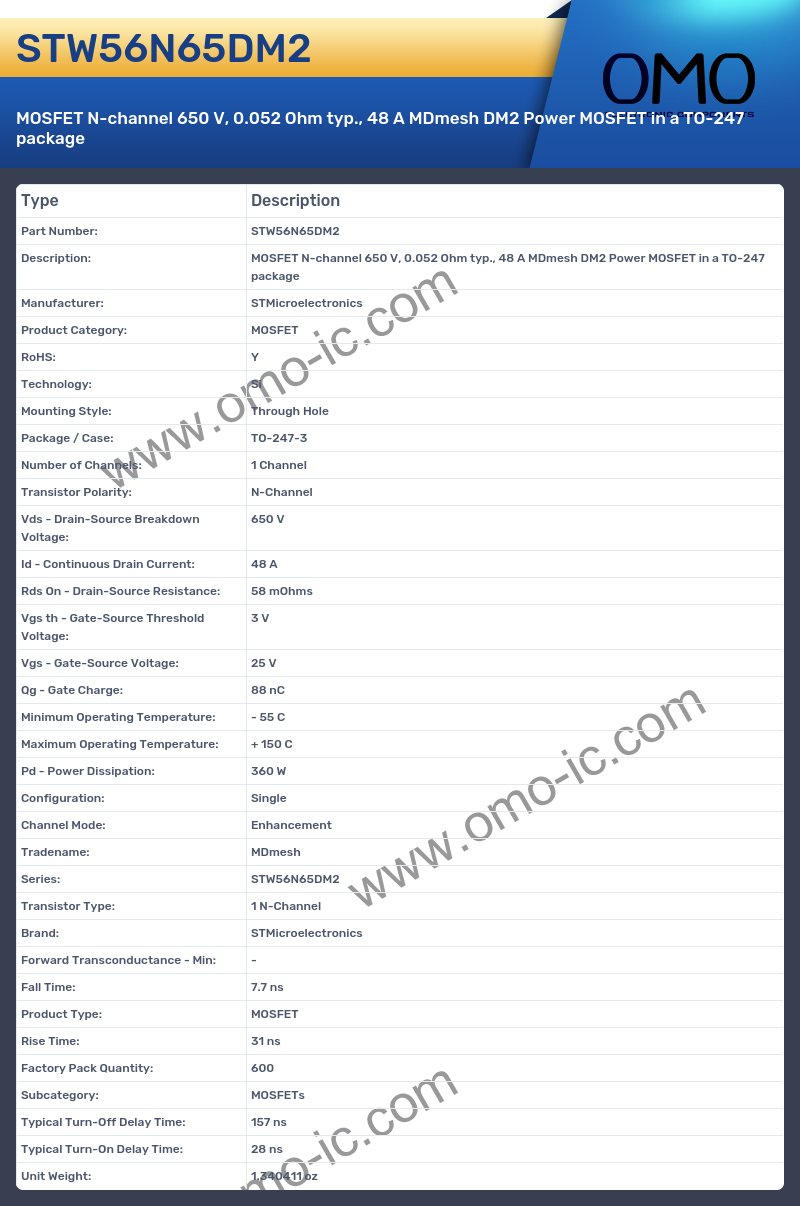

STW56N65DM2 Image

STW56N65DM2 Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: Through Hole
• Package / Case: TO-247-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 650 V
• Id - Continuous Drain Current: 48 A
• Rds On - Drain-Source Resistance: 58 mOhms
• Vgs th - Gate-Source Threshold Voltage: 3 V
• Vgs - Gate-Source Voltage: 25 V
• Qg - Gate Charge: 88 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 360 W
• Configuration: Single
• Channel Mode: Enhancement
• Tradename: MDmesh
• Series: STW56N65DM2
• Transistor Type: 1 N-Channel
• Brand: STMicroelectronics
• Forward Transconductance - Min: -
• Fall Time: 7.7 ns
• Product Type: MOSFET
• Rise Time: 31 ns
• Factory Pack Quantity: 600
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 157 ns
• Typical Turn-On Delay Time: 28 ns
• Unit Weight: 1.340411 oz
