TC4422ESM

TC4422ESM Overview

This product is manufactured by Microchip. MOSFET Gate Drivers This device belongs to the Low Side type. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. 1 Output is the number of outputs provided by this product. Output current: 2 A Rise Time is 60 ns. 60 ns fall time Supply Voltage - Min: 4.5 V Supply Voltage - Max: 18 V 750 mW The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing Microchip Technology is a trusted brand for quality electronics CMOS, TTL. 4.5 V to 18 V operating supply voltage range Gate Drivers product type 90 of 100 PMIC - Power Management ICs as subcategory 1. 0.019048 oz of Unit Weight

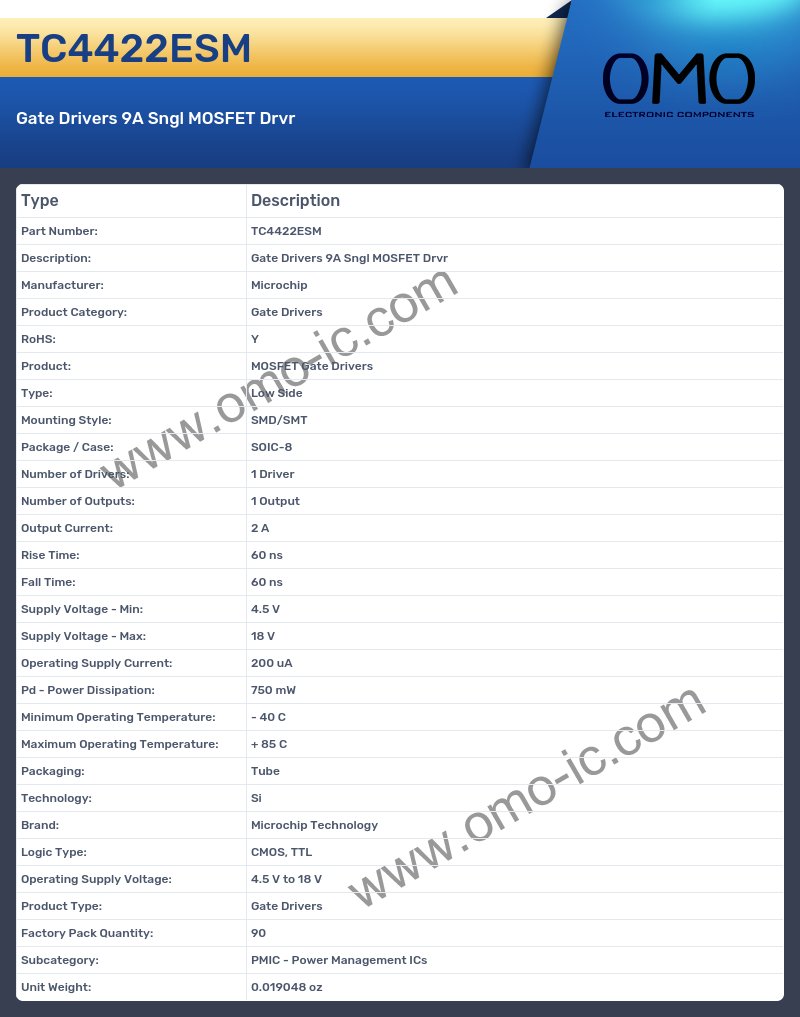

TC4422ESM Image

TC4422ESM Specifications

• Manufacturer: Microchip
• Product Category: Gate Drivers
• RoHS: Y
• Product: MOSFET Gate Drivers
• Type: Low Side
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Number of Drivers: 1 Driver
• Number of Outputs: 1 Output
• Output Current: 2 A
• Rise Time: 60 ns
• Fall Time: 60 ns
• Supply Voltage - Min: 4.5 V
• Supply Voltage - Max: 18 V
• Operating Supply Current: 200 uA
• Pd - Power Dissipation: 750 mW
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Technology: Si
• Brand: Microchip Technology
• Logic Type: CMOS, TTL
• Operating Supply Voltage: 4.5 V to 18 V
• Product Type: Gate Drivers
• Factory Pack Quantity: 90
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.019048 oz
