THS1030IPW

THS1030IPW Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. TSSOP-28 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 30 MS/s. Differential/Single-Ended input type Interface Type: Parallel Pipeline architecture External, Internal is the reference type. This product requires an 3.3 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 1 mm. 9.7 mm long This device belongs to the S/H ADC type. Texas Instruments is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. THS1030EVM is a versatile development platform for hardware and software The +/- 1 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within 2 LSB 3 V to 5.5 V operating supply voltage range 120 mW ADCs - Analog to Digital Converters product type 50 of 100 Data Converter ICs as subcategory THD is as low as - 53.1 dB. 1. 0.004145 oz of Unit Weight

THS1030IPW Image

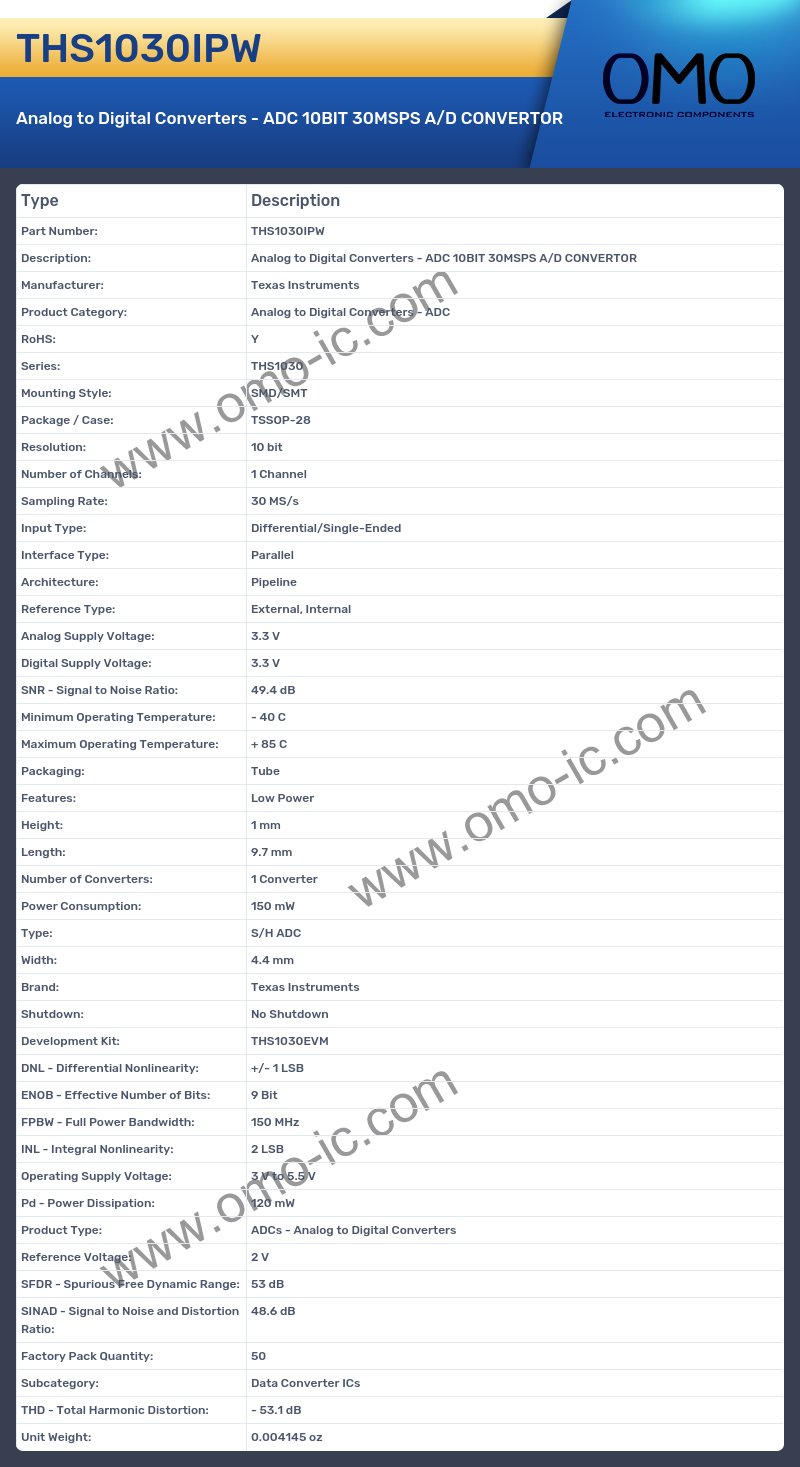

THS1030IPW Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: THS1030
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-28
• Resolution: 10 bit
• Number of Channels: 1 Channel
• Sampling Rate: 30 MS/s
• Input Type: Differential/Single-Ended
• Interface Type: Parallel
• Architecture: Pipeline
• Reference Type: External, Internal
• Analog Supply Voltage: 3.3 V
• Digital Supply Voltage: 3.3 V
• SNR - Signal to Noise Ratio: 49.4 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Features: Low Power
• Height: 1 mm
• Length: 9.7 mm
• Number of Converters: 1 Converter
• Power Consumption: 150 mW
• Type: S/H ADC
• Width: 4.4 mm
• Brand: Texas Instruments
• Shutdown: No Shutdown
• Development Kit: THS1030EVM
• DNL - Differential Nonlinearity: +/- 1 LSB
• ENOB - Effective Number of Bits: 9 Bit
• FPBW - Full Power Bandwidth: 150 MHz
• INL - Integral Nonlinearity: 2 LSB
• Operating Supply Voltage: 3 V to 5.5 V
• Pd - Power Dissipation: 120 mW
• Product Type: ADCs - Analog to Digital Converters
• Reference Voltage: 2 V
• SFDR - Spurious Free Dynamic Range: 53 dB
• SINAD - Signal to Noise and Distortion Ratio: 48.6 dB
• Factory Pack Quantity: 50
• Subcategory: Data Converter ICs
• THD - Total Harmonic Distortion: - 53.1 dB
• Unit Weight: 0.004145 oz
