TLC5510AINS

TLC5510AINS Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. SOP-24 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 20 MS/s. Single-Ended input type Interface Type: Parallel Half-Flash architecture External, Internal is the reference type. This product requires an 4.75 V to 5.25 V for proper operation. The minimum operating temperature of this product is - 20 C. The product can operate at a maximum temperature of + 75 C. Tube packaging for easy dispensing The height of the product is 1.95 mm. 15 mm long Texas Instruments is a trusted brand for quality electronics The +/- 0.75 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within +/- 1 LSB 4.75 V to 5.25 V operating supply voltage range ADCs - Analog to Digital Converters product type 34 of 100 Data Converter ICs as subcategory 1. 0.010857 oz of Unit Weight

TLC5510AINS Image

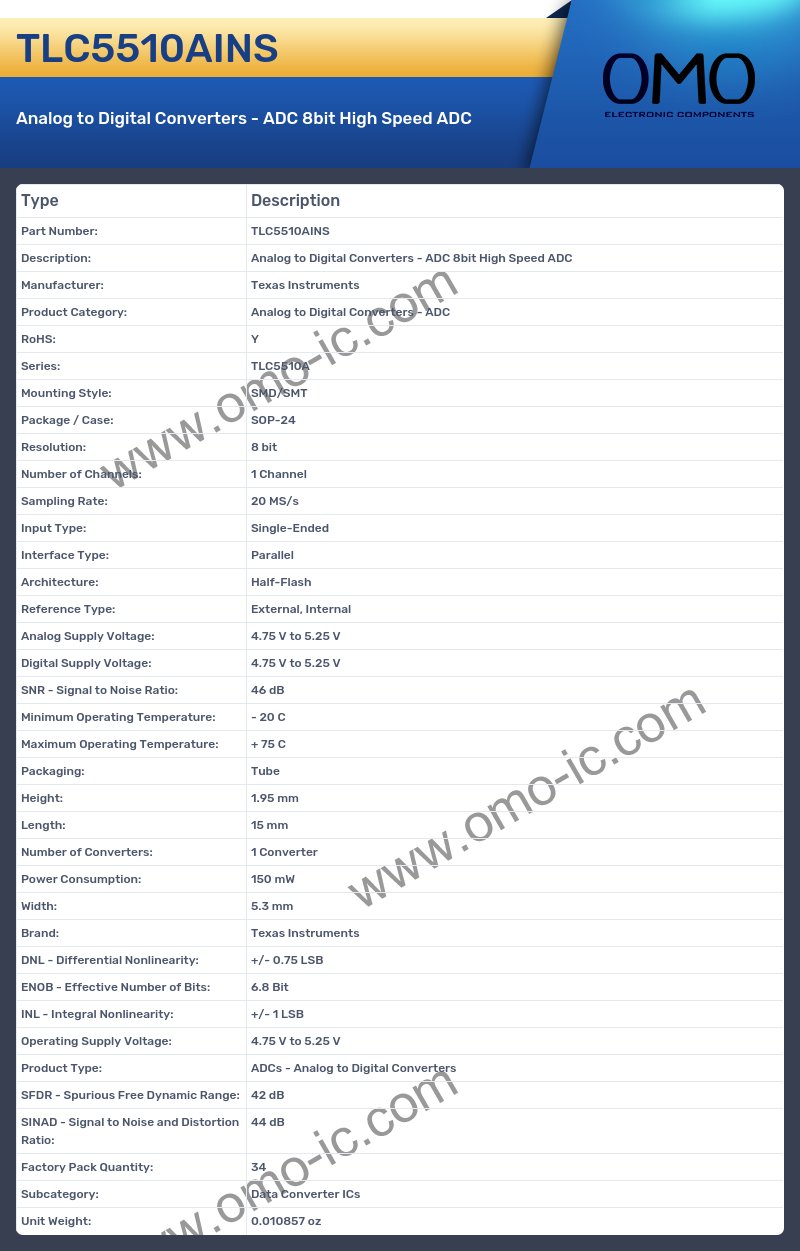

TLC5510AINS Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: TLC5510A
• Mounting Style: SMD/SMT
• Package / Case: SOP-24
• Resolution: 8 bit
• Number of Channels: 1 Channel
• Sampling Rate: 20 MS/s
• Input Type: Single-Ended
• Interface Type: Parallel
• Architecture: Half-Flash
• Reference Type: External, Internal
• Analog Supply Voltage: 4.75 V to 5.25 V
• Digital Supply Voltage: 4.75 V to 5.25 V
• SNR - Signal to Noise Ratio: 46 dB
• Minimum Operating Temperature: - 20 C
• Maximum Operating Temperature: + 75 C
• Packaging: Tube
• Height: 1.95 mm
• Length: 15 mm
• Number of Converters: 1 Converter
• Power Consumption: 150 mW
• Width: 5.3 mm
• Brand: Texas Instruments
• DNL - Differential Nonlinearity: +/- 0.75 LSB
• ENOB - Effective Number of Bits: 6.8 Bit
• INL - Integral Nonlinearity: +/- 1 LSB
• Operating Supply Voltage: 4.75 V to 5.25 V
• Product Type: ADCs - Analog to Digital Converters
• SFDR - Spurious Free Dynamic Range: 42 dB
• SINAD - Signal to Noise and Distortion Ratio: 44 dB
• Factory Pack Quantity: 34
• Subcategory: Data Converter ICs
• Unit Weight: 0.010857 oz
