TLV1504ID

TLV1504ID Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. SOP-16 package/case type is utilized by this product. This product is equipped with 4 Channel for efficient performance. The sampling rate of this product is 200 kS/s. Single-Ended input type Interface Type: SPI SAR architecture External, Internal is the reference type. This product requires an 2.7 V to 5.5 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 1.58 mm. 9.9 mm long Texas Instruments is a trusted brand for quality electronics The +/- 0.5 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within +/- 0.5 LSB 2.7 V to 5.5 V operating supply voltage range 1110 mW ADCs - Analog to Digital Converters product type 40 of 100 Data Converter ICs as subcategory 1. 0.005471 oz of Unit Weight

TLV1504ID Image

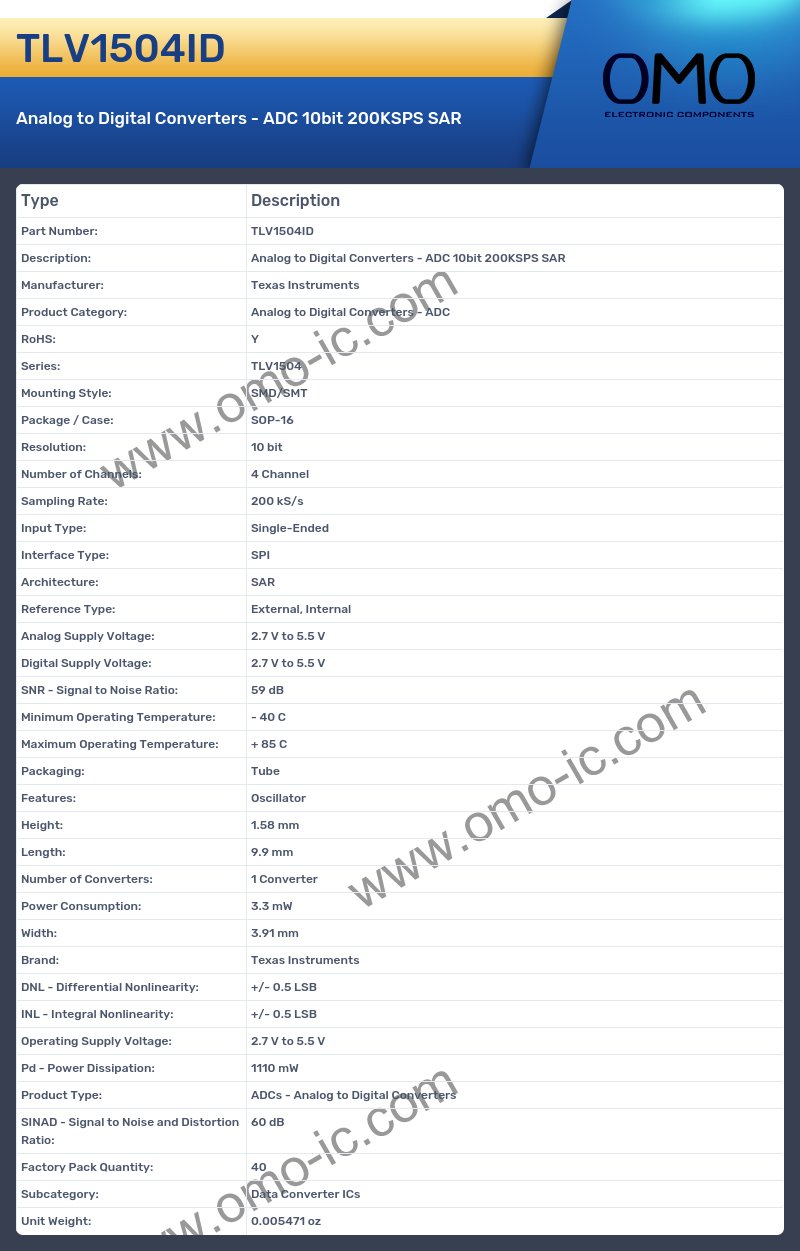

TLV1504ID Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: TLV1504
• Mounting Style: SMD/SMT
• Package / Case: SOP-16
• Resolution: 10 bit
• Number of Channels: 4 Channel
• Sampling Rate: 200 kS/s
• Input Type: Single-Ended
• Interface Type: SPI
• Architecture: SAR
• Reference Type: External, Internal
• Analog Supply Voltage: 2.7 V to 5.5 V
• Digital Supply Voltage: 2.7 V to 5.5 V
• SNR - Signal to Noise Ratio: 59 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Features: Oscillator
• Height: 1.58 mm
• Length: 9.9 mm
• Number of Converters: 1 Converter
• Power Consumption: 3.3 mW
• Width: 3.91 mm
• Brand: Texas Instruments
• DNL - Differential Nonlinearity: +/- 0.5 LSB
• INL - Integral Nonlinearity: +/- 0.5 LSB
• Operating Supply Voltage: 2.7 V to 5.5 V
• Pd - Power Dissipation: 1110 mW
• Product Type: ADCs - Analog to Digital Converters
• SINAD - Signal to Noise and Distortion Ratio: 60 dB
• Factory Pack Quantity: 40
• Subcategory: Data Converter ICs
• Unit Weight: 0.005471 oz
