TLV3701CD

TLV3701CD Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. The comparator type of this product is General Purpose for versatile use. This product is equipped with 1 Channel for efficient performance. The output type is Push-Pull. This product has an 100 pA of 5 uA for precise signal processing. Supply Voltage - Max: 16 V Supply Voltage - Min: 2.5 V 36 us response time The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing The height of the product is 1.58 mm. Rail-to-Rail input type 4.9 mm long Analog Comparators Supply Type: Single, Dual This device belongs to the Nano Power Comparator type. Texas Instruments is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. This product has a 88 dB of 50 dB, ensuring reliable signal acquisition. 1. The maximum dual supply voltage is +/- 8 V. 1.25 V minimum dual supply voltage 2.5 V to 16 V operating supply voltage range 710 mW Analog Comparators product type This product has a 105 dB of 50 dB, providing reliable power supply noise rejection. 75 of 100 Amplifier ICs as subcategory The product's LinCMOS is Blue Gecko. 1. 0.002561 oz of Unit Weight

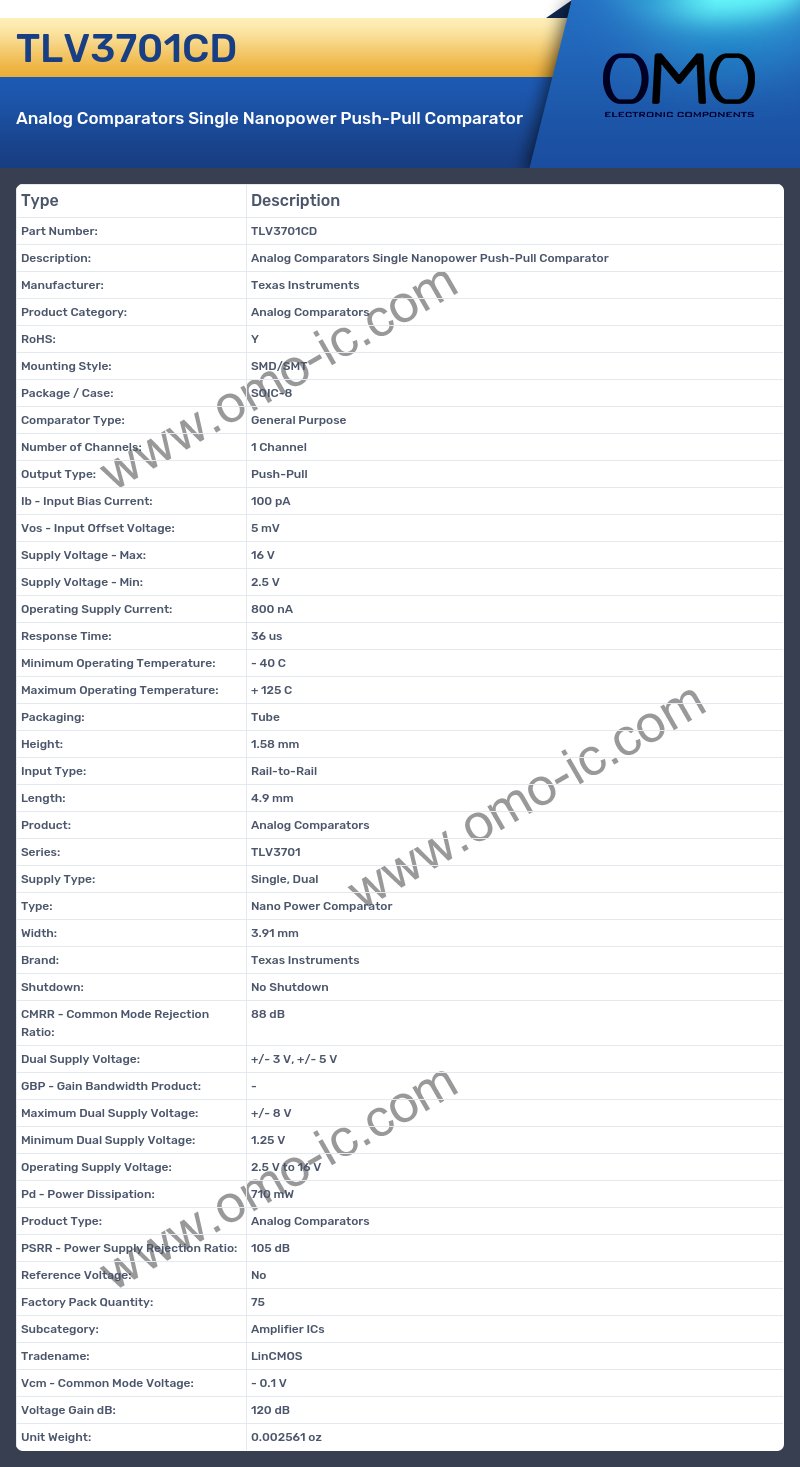

TLV3701CD Image

TLV3701CD Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog Comparators
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Comparator Type: General Purpose
• Number of Channels: 1 Channel
• Output Type: Push-Pull
• Ib - Input Bias Current: 100 pA
• Vos - Input Offset Voltage: 5 mV
• Supply Voltage - Max: 16 V
• Supply Voltage - Min: 2.5 V
• Operating Supply Current: 800 nA
• Response Time: 36 us
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Packaging: Tube
• Height: 1.58 mm
• Input Type: Rail-to-Rail
• Length: 4.9 mm
• Product: Analog Comparators
• Series: TLV3701
• Supply Type: Single, Dual
• Type: Nano Power Comparator
• Width: 3.91 mm
• Brand: Texas Instruments
• Shutdown: No Shutdown
• CMRR - Common Mode Rejection Ratio: 88 dB
• Dual Supply Voltage: +/- 3 V, +/- 5 V
• GBP - Gain Bandwidth Product: -
• Maximum Dual Supply Voltage: +/- 8 V
• Minimum Dual Supply Voltage: 1.25 V
• Operating Supply Voltage: 2.5 V to 16 V
• Pd - Power Dissipation: 710 mW
• Product Type: Analog Comparators
• PSRR - Power Supply Rejection Ratio: 105 dB
• Reference Voltage: No
• Factory Pack Quantity: 75
• Subcategory: Amplifier ICs
• Tradename: LinCMOS
• Vcm - Common Mode Voltage: - 0.1 V
• Voltage Gain dB: 120 dB
• Unit Weight: 0.002561 oz
