TP2104K1-G

TP2104K1-G Overview

This product is manufactured by Microchip. The product can operate at a maximum temperature of SMD/SMT. SOT-23-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 40 V 160 mA continuous drain current Rds On value of 6 Ohms Gate-Source Threshold Voltage Range: 1 V Gate-Source Voltage: 10 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 360 mW This product has a Single configuration. The Channel Mode is set to Enhancement. Reel packaging for easy dispensing The height of the product is 0.95 mm. 2.9 mm long MOSFET Small Signal The Transistor Type is 1 P-Channel. This device belongs to the FET type. Microchip Technology is a trusted brand for quality electronics Minimum forward transconductance of 150 mS 5 ns fall time MOSFET product type Rise Time is 4 ns. 3000 of 100 MOSFETs as subcategory Turn-off delay time is 5 ns. The typical turn-on delay time is 4 ns. 1. 0.000282 oz of Unit Weight

TP2104K1-G Image

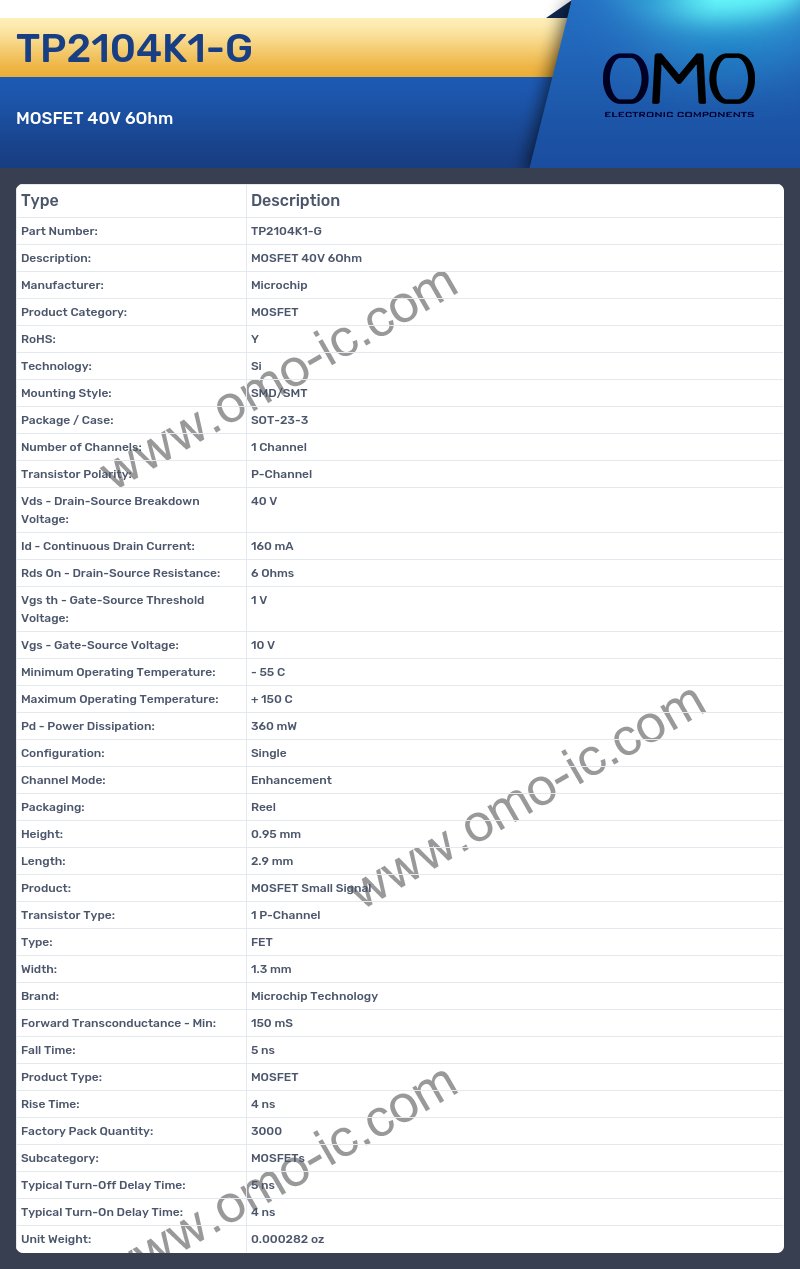

TP2104K1-G Specifications

• Manufacturer: Microchip
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: SOT-23-3
• Number of Channels: 1 Channel
• Transistor Polarity: P-Channel
• Vds - Drain-Source Breakdown Voltage: 40 V
• Id - Continuous Drain Current: 160 mA
• Rds On - Drain-Source Resistance: 6 Ohms
• Vgs th - Gate-Source Threshold Voltage: 1 V
• Vgs - Gate-Source Voltage: 10 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 360 mW
• Configuration: Single
• Channel Mode: Enhancement
• Packaging: Reel
• Height: 0.95 mm
• Length: 2.9 mm
• Product: MOSFET Small Signal
• Transistor Type: 1 P-Channel
• Type: FET
• Width: 1.3 mm
• Brand: Microchip Technology
• Forward Transconductance - Min: 150 mS
• Fall Time: 5 ns
• Product Type: MOSFET
• Rise Time: 4 ns
• Factory Pack Quantity: 3000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 5 ns
• Typical Turn-On Delay Time: 4 ns
• Unit Weight: 0.000282 oz
