TPA3120D2PWP

TPA3120D2PWP Overview

This product is manufactured by Texas Instruments. Audio Amplifiers Product Class is Class-D Output power: 20 W The product can operate at a maximum temperature of SMD/SMT. This device belongs to the 1-Channel Mono or 2-Channel Stereo type. HTSSOP-24 package/case type is utilized by this product. Load impedance of 8 Ohms is supported. THD plus Noise value is 0.08 %. Supply Voltage - Max: 30 V Supply Voltage - Min: 10 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 1.15 mm. Differential input type 7.8 mm long The output type is 1-Channel Mono, 2-Channel Stereo. Supply Type: Single Texas Instruments is a trusted brand for quality electronics 36 dB is 11.5 dB. This product is equipped with 2 Channel for efficient performance. TPA3120D2EVM is a versatile development platform for hardware and software Yes regarding Moisture Sensitivity 12 V, 15 V, 18 V, 24 V operating supply voltage range Output signal type is Differential, Single 4160 mW Audio Amplifiers product type This product has a 60 dB of 50 dB, providing reliable power supply noise rejection. 60 of 100 Audio ICs as subcategory 1. 0.003460 oz of Unit Weight

TPA3120D2PWP Image

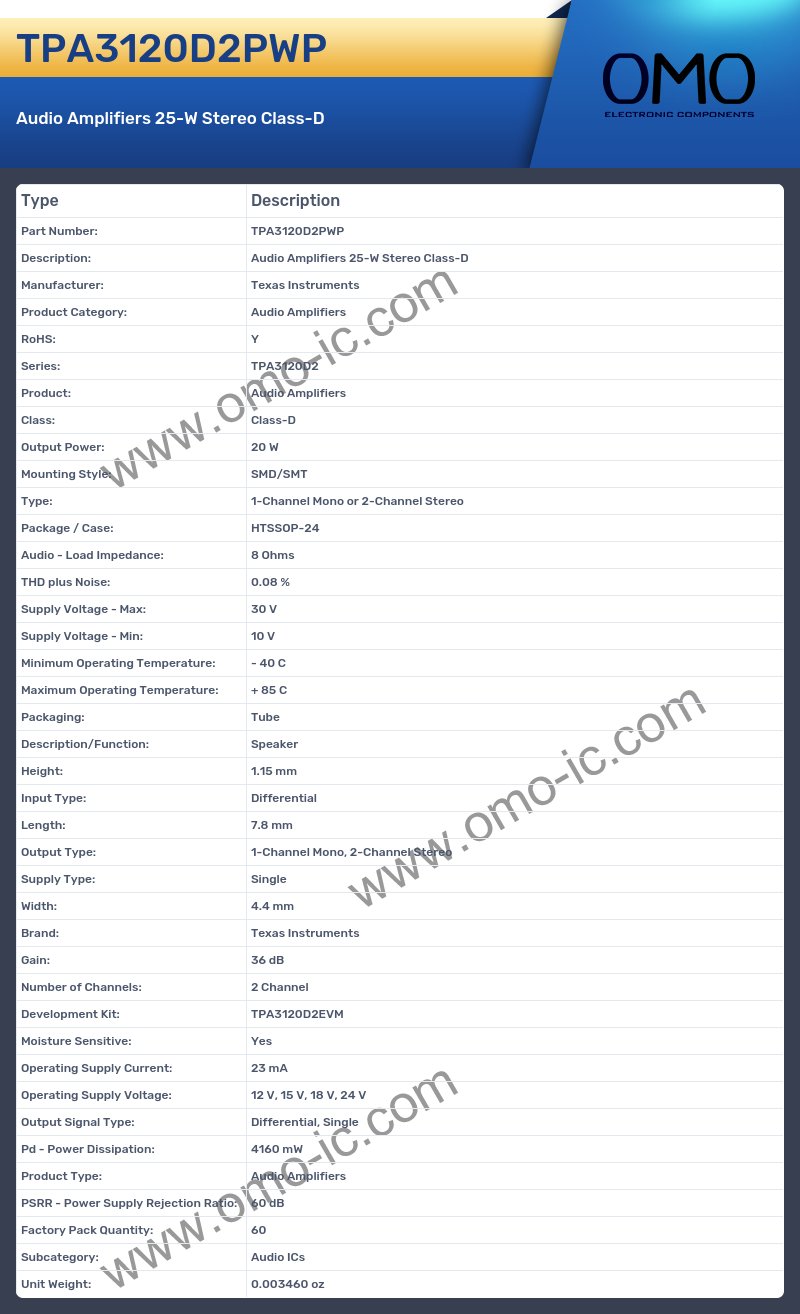

TPA3120D2PWP Specifications

• Manufacturer: Texas Instruments
• Product Category: Audio Amplifiers
• RoHS: Y
• Series: TPA3120D2
• Product: Audio Amplifiers
• Class: Class-D
• Output Power: 20 W
• Mounting Style: SMD/SMT
• Type: 1-Channel Mono or 2-Channel Stereo
• Package / Case: HTSSOP-24
• Audio - Load Impedance: 8 Ohms
• THD plus Noise: 0.08 %
• Supply Voltage - Max: 30 V
• Supply Voltage - Min: 10 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Description/Function: Speaker
• Height: 1.15 mm
• Input Type: Differential
• Length: 7.8 mm
• Output Type: 1-Channel Mono, 2-Channel Stereo
• Supply Type: Single
• Width: 4.4 mm
• Brand: Texas Instruments
• Gain: 36 dB
• Number of Channels: 2 Channel
• Development Kit: TPA3120D2EVM
• Moisture Sensitive: Yes
• Operating Supply Current: 23 mA
• Operating Supply Voltage: 12 V, 15 V, 18 V, 24 V
• Output Signal Type: Differential, Single
• Pd - Power Dissipation: 4160 mW
• Product Type: Audio Amplifiers
• PSRR - Power Supply Rejection Ratio: 60 dB
• Factory Pack Quantity: 60
• Subcategory: Audio ICs
• Unit Weight: 0.003460 oz
