TPIC2603DW

TPIC2603DW Overview

This product is manufactured by Texas Instruments. Half-Bridge Drivers This device belongs to the Inverting, Non-Inverting type. The product can operate at a maximum temperature of SMD/SMT. SOIC-24 package/case type is utilized by this product. Output current: 350 mA Rise Time is 30 ns. 30 ns fall time Supply Voltage - Min: 4.5 V Supply Voltage - Max: 5.5 V 1.75 W The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing Texas Instruments is a trusted brand for quality electronics 5 V operating supply voltage range Gate Drivers product type 25 of 100 PMIC - Power Management ICs as subcategory 1. 0.021006 oz of Unit Weight

TPIC2603DW Image

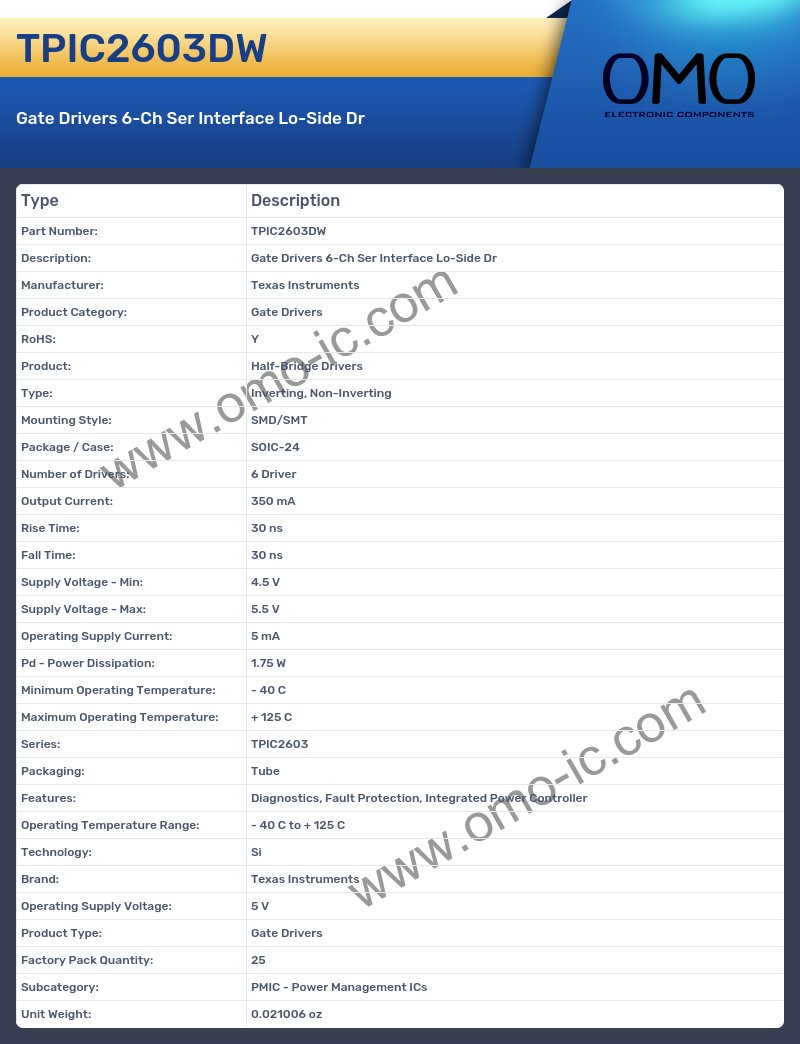

TPIC2603DW Specifications

• Manufacturer: Texas Instruments
• Product Category: Gate Drivers
• RoHS: Y
• Product: Half-Bridge Drivers
• Type: Inverting, Non-Inverting
• Mounting Style: SMD/SMT
• Package / Case: SOIC-24
• Number of Drivers: 6 Driver
• Output Current: 350 mA
• Rise Time: 30 ns
• Fall Time: 30 ns
• Supply Voltage - Min: 4.5 V
• Supply Voltage - Max: 5.5 V
• Operating Supply Current: 5 mA
• Pd - Power Dissipation: 1.75 W
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Series: TPIC2603
• Packaging: Tube
• Features: Diagnostics, Fault Protection, Integrated Power Controller
• Operating Temperature Range: - 40 C to + 125 C
• Technology: Si
• Brand: Texas Instruments
• Operating Supply Voltage: 5 V
• Product Type: Gate Drivers
• Factory Pack Quantity: 25
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.021006 oz
