TPS2836DG4

TPS2836DG4 Overview

This product is manufactured by Texas Instruments. This device belongs to the High Side, Low Side type. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. 2 Output is the number of outputs provided by this product. Output current: 2.4 A Rise Time is 50 ns. 40 ns fall time Supply Voltage - Min: 4.5 V Supply Voltage - Max: 15 V 600 mW The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing Texas Instruments is a trusted brand for quality electronics TTL. 4.5 V to 15 V operating supply voltage range Gate Drivers product type 75 of 100 PMIC - Power Management ICs as subcategory 1. 0.002677 oz of Unit Weight

TPS2836DG4 Image

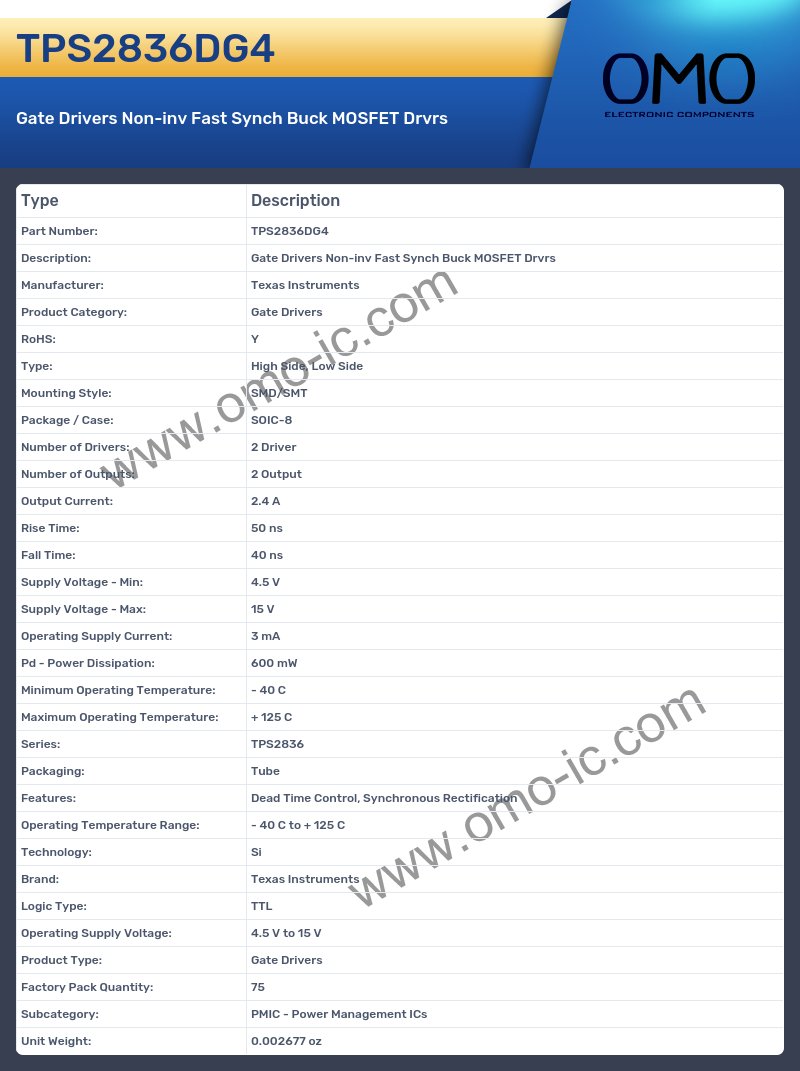

TPS2836DG4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Gate Drivers
• RoHS: Y
• Type: High Side, Low Side
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Number of Drivers: 2 Driver
• Number of Outputs: 2 Output
• Output Current: 2.4 A
• Rise Time: 50 ns
• Fall Time: 40 ns
• Supply Voltage - Min: 4.5 V
• Supply Voltage - Max: 15 V
• Operating Supply Current: 3 mA
• Pd - Power Dissipation: 600 mW
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Series: TPS2836
• Packaging: Tube
• Features: Dead Time Control, Synchronous Rectification
• Operating Temperature Range: - 40 C to + 125 C
• Technology: Si
• Brand: Texas Instruments
• Logic Type: TTL
• Operating Supply Voltage: 4.5 V to 15 V
• Product Type: Gate Drivers
• Factory Pack Quantity: 75
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.002677 oz
