TPS3514N

TPS3514N Overview

This product is manufactured by Texas Instruments. This device belongs to the Voltage Supervisory type. The product can operate at a maximum temperature of SMD/SMT. PDIP-14 package/case type is utilized by this product. 2.2 V, 3.5 V threshold voltage range The output type is Active-low,Open-drain. 300 ms. Supply Voltage - Max: 15 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 4.57 mm. 19.3 mm long Texas Instruments is a trusted brand for quality electronics 3.9 V, 6.1 V, 13.8 V is specified as a product attribute. The 2.2 V, 3.5 V, 9 V is a critical parameter in this product. 1512 mW Supervisory Circuits product type 25 of 100 PMIC - Power Management ICs as subcategory Supply Voltage - Min: 4.5 V 1. 0.032734 oz of Unit Weight

TPS3514N Image

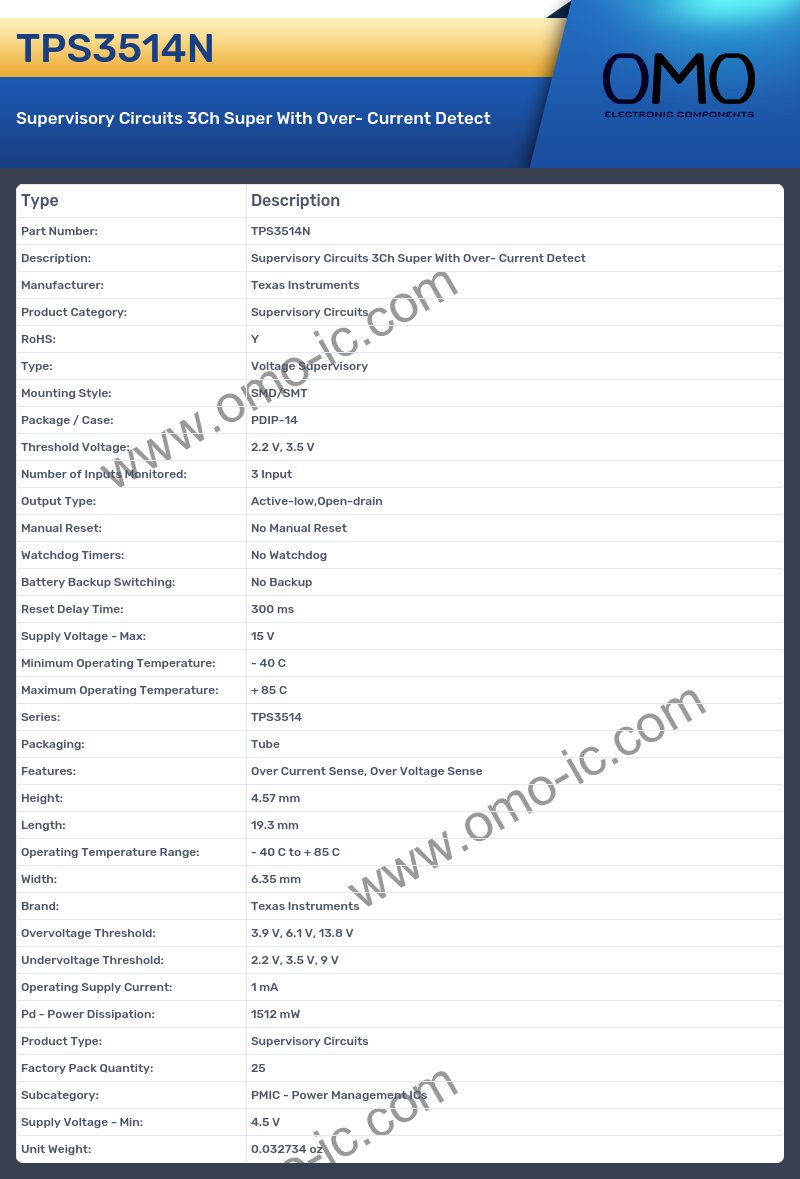

TPS3514N Specifications

• Manufacturer: Texas Instruments
• Product Category: Supervisory Circuits
• RoHS: Y
• Type: Voltage Supervisory
• Mounting Style: SMD/SMT
• Package / Case: PDIP-14
• Threshold Voltage: 2.2 V, 3.5 V
• Number of Inputs Monitored: 3 Input
• Output Type: Active-low,Open-drain
• Manual Reset: No Manual Reset
• Watchdog Timers: No Watchdog
• Battery Backup Switching: No Backup
• Reset Delay Time: 300 ms
• Supply Voltage - Max: 15 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Series: TPS3514
• Packaging: Tube
• Features: Over Current Sense, Over Voltage Sense
• Height: 4.57 mm
• Length: 19.3 mm
• Operating Temperature Range: - 40 C to + 85 C
• Width: 6.35 mm
• Brand: Texas Instruments
• Overvoltage Threshold: 3.9 V, 6.1 V, 13.8 V
• Undervoltage Threshold: 2.2 V, 3.5 V, 9 V
• Operating Supply Current: 1 mA
• Pd - Power Dissipation: 1512 mW
• Product Type: Supervisory Circuits
• Factory Pack Quantity: 25
• Subcategory: PMIC - Power Management ICs
• Supply Voltage - Min: 4.5 V
• Unit Weight: 0.032734 oz
