TSH80IDT Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. SO-8 package/case type is utilized by this product. Supply Voltage - Max: 12 V This product is equipped with 1 Channel for efficient performance. This product has a 72 dB of 50 dB, ensuring reliable signal acquisition. This product has an 15 uA of 5 uA for precise signal processing. Supply Voltage - Min: 4.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. This product does not have a No Shutdown feature, ensuring continuous operation. The AEC-Q100 Qualification Reel packaging for easy dispensing The amplifier type is High Speed Amplifier. The height of the product is 1.65 mm (Max). 5 mm (Max) long Operational Amplifiers Supply Type: Single, Dual STMicroelectronics is a trusted brand for quality electronics 1. The maximum dual supply voltage is +/- 6 V. +/- 2.25 V minimum dual supply voltage 4.5 V to 12 V, +/- 2.25 V to +/- 6 V operating supply voltage range Op Amps - Operational Amplifiers product type This product has a 75 dB of 50 dB, providing reliable power supply noise rejection. 2500 of 100 Amplifier ICs as subcategory 1. 0.017870 oz of Unit Weight

TSH80IDT Image

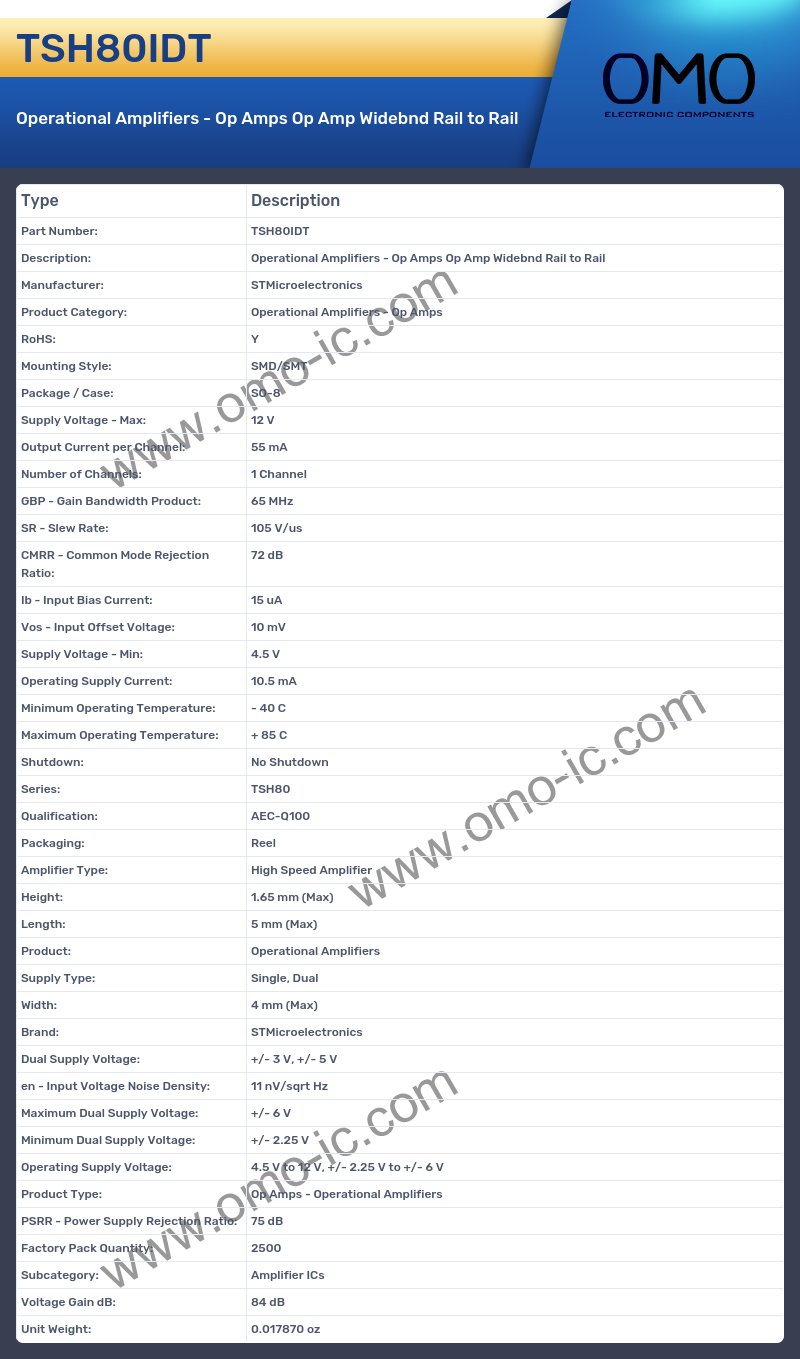

TSH80IDT Specifications

• Manufacturer: STMicroelectronics
• Product Category: Operational Amplifiers - Op Amps
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: SO-8
• Supply Voltage - Max: 12 V
• Output Current per Channel: 55 mA
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: 65 MHz
• SR - Slew Rate: 105 V/us
• CMRR - Common Mode Rejection Ratio: 72 dB
• Ib - Input Bias Current: 15 uA
• Vos - Input Offset Voltage: 10 mV
• Supply Voltage - Min: 4.5 V
• Operating Supply Current: 10.5 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Shutdown: No Shutdown
• Series: TSH80
• Qualification: AEC-Q100
• Packaging: Reel
• Amplifier Type: High Speed Amplifier
• Height: 1.65 mm (Max)
• Length: 5 mm (Max)
• Product: Operational Amplifiers
• Supply Type: Single, Dual
• Width: 4 mm (Max)
• Brand: STMicroelectronics
• Dual Supply Voltage: +/- 3 V, +/- 5 V
• en - Input Voltage Noise Density: 11 nV/sqrt Hz
• Maximum Dual Supply Voltage: +/- 6 V
• Minimum Dual Supply Voltage: +/- 2.25 V
• Operating Supply Voltage: 4.5 V to 12 V, +/- 2.25 V to +/- 6 V
• Product Type: Op Amps - Operational Amplifiers
• PSRR - Power Supply Rejection Ratio: 75 dB
• Factory Pack Quantity: 2500
• Subcategory: Amplifier ICs
• Voltage Gain dB: 84 dB
• Unit Weight: 0.017870 oz
