UC3706DW Overview

This product is manufactured by Texas Instruments. MOSFET Gate Drivers This device belongs to the Inverting, Non-Inverting type. The product can operate at a maximum temperature of SMD/SMT. SOIC-16 package/case type is utilized by this product. 2 Output is the number of outputs provided by this product. Output current: 1.5 A Rise Time is 40 ns. 30 ns fall time Supply Voltage - Min: 5 V Supply Voltage - Max: 40 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. Tube packaging for easy dispensing Texas Instruments is a trusted brand for quality electronics Yes regarding Moisture Sensitivity 20 V operating supply voltage range Gate Drivers product type 40 of 100 PMIC - Power Management ICs as subcategory 1. 0.016709 oz of Unit Weight

UC3706DW Image

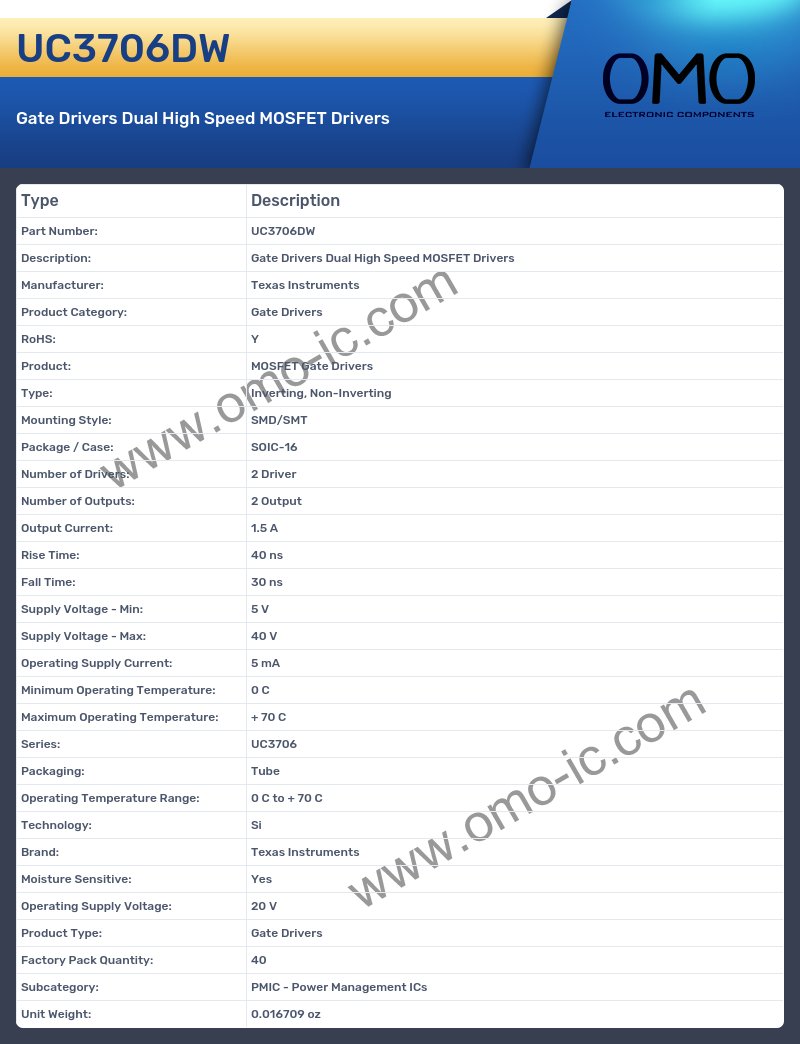

UC3706DW Specifications

• Manufacturer: Texas Instruments
• Product Category: Gate Drivers
• RoHS: Y
• Product: MOSFET Gate Drivers
• Type: Inverting, Non-Inverting
• Mounting Style: SMD/SMT
• Package / Case: SOIC-16
• Number of Drivers: 2 Driver
• Number of Outputs: 2 Output
• Output Current: 1.5 A
• Rise Time: 40 ns
• Fall Time: 30 ns
• Supply Voltage - Min: 5 V
• Supply Voltage - Max: 40 V
• Operating Supply Current: 5 mA
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Series: UC3706
• Packaging: Tube
• Operating Temperature Range: 0 C to + 70 C
• Technology: Si
• Brand: Texas Instruments
• Moisture Sensitive: Yes
• Operating Supply Voltage: 20 V
• Product Type: Gate Drivers
• Factory Pack Quantity: 40
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.016709 oz
