UC3706NG4

UC3706NG4 Overview

This product is manufactured by Texas Instruments. This device belongs to the Inverting type. The product can operate at a maximum temperature of Through Hole. PDIP-16 package/case type is utilized by this product. 2 Output is the number of outputs provided by this product. Rise Time is 140 ns. 130 ns fall time Supply Voltage - Min: 5 V 2000 mW The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. Tube packaging for easy dispensing Texas Instruments is a trusted brand for quality electronics Gate Drivers product type 25 of 100 PMIC - Power Management ICs as subcategory 1. 0.037172 oz of Unit Weight

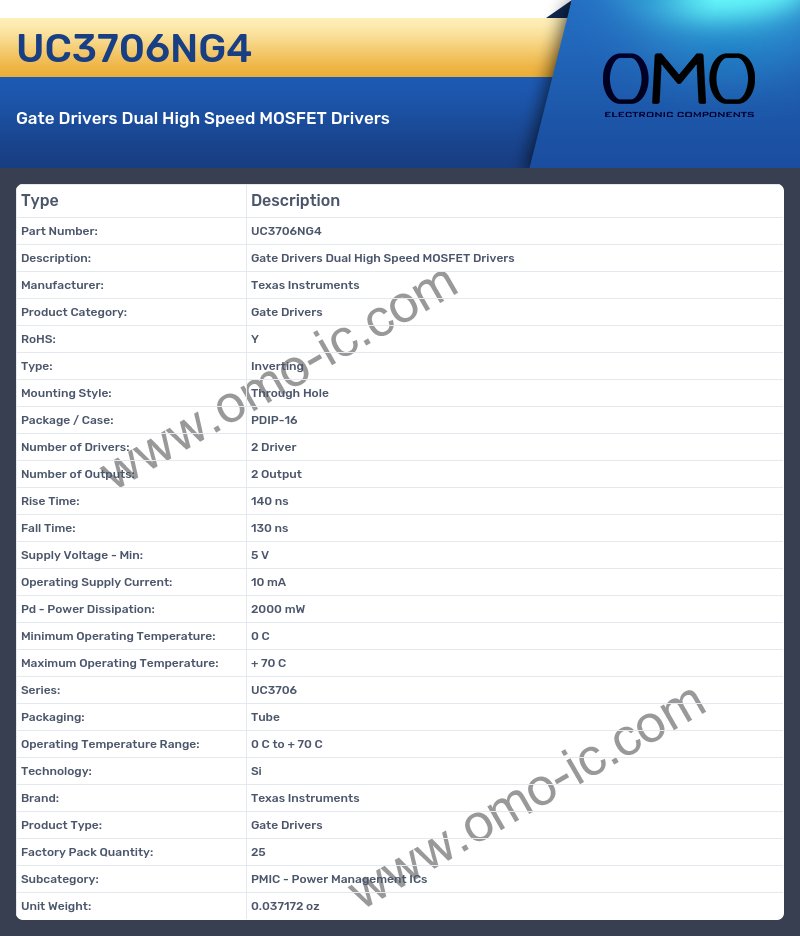

UC3706NG4 Image

UC3706NG4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Gate Drivers
• RoHS: Y
• Type: Inverting
• Mounting Style: Through Hole
• Package / Case: PDIP-16
• Number of Drivers: 2 Driver
• Number of Outputs: 2 Output
• Rise Time: 140 ns
• Fall Time: 130 ns
• Supply Voltage - Min: 5 V
• Operating Supply Current: 10 mA
• Pd - Power Dissipation: 2000 mW
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Series: UC3706
• Packaging: Tube
• Operating Temperature Range: 0 C to + 70 C
• Technology: Si
• Brand: Texas Instruments
• Product Type: Gate Drivers
• Factory Pack Quantity: 25
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.037172 oz
