UCC2305N

UCC2305N Overview

This product is manufactured by Texas Instruments. This product is equipped with 1 Channel for efficient performance. Output current: 1 mA 5 V to 18 V Input Voltage Maximum supply current: 1 mA The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of Through Hole. PDIP-28 package/case type is utilized by this product. Tube packaging for easy dispensing The output type is Current Mode. Texas Instruments is a trusted brand for quality electronics Boost, Flyback Topology 5 V to 18 V operating supply voltage range LED Lighting Drivers product type 13 of 100 Driver ICs as subcategory 1. 0.147798 oz of Unit Weight

UCC2305N Image

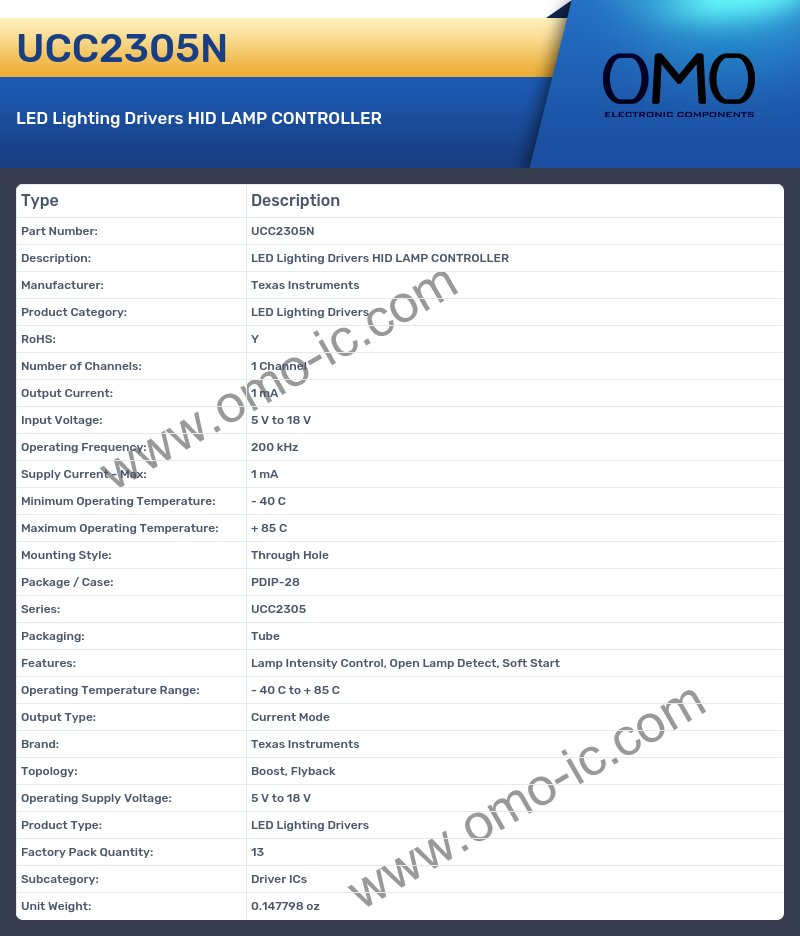

UCC2305N Specifications

• Manufacturer: Texas Instruments
• Product Category: LED Lighting Drivers
• RoHS: Y
• Number of Channels: 1 Channel
• Output Current: 1 mA
• Input Voltage: 5 V to 18 V
• Operating Frequency: 200 kHz
• Supply Current - Max: 1 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: Through Hole
• Package / Case: PDIP-28
• Series: UCC2305
• Packaging: Tube
• Features: Lamp Intensity Control, Open Lamp Detect, Soft Start
• Operating Temperature Range: - 40 C to + 85 C
• Output Type: Current Mode
• Brand: Texas Instruments
• Topology: Boost, Flyback
• Operating Supply Voltage: 5 V to 18 V
• Product Type: LED Lighting Drivers
• Factory Pack Quantity: 13
• Subcategory: Driver ICs
• Unit Weight: 0.147798 oz
