UCC2946DG4

UCC2946DG4 Overview

This product is manufactured by Texas Instruments. This device belongs to the Voltage Supervisory type. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. Adjustable threshold voltage range The output type is Active-low,Push-pull. Adjustable. Supply Voltage - Max: 5.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 1.58 mm. 5 mm long Texas Instruments is a trusted brand for quality electronics 1.26 V is specified as a product attribute. The Adjustable is a critical parameter in this product. No Chip Enable signal is supported. Yes regarding Moisture Sensitivity Supervisory Circuits product type 75 of 100 PMIC - Power Management ICs as subcategory Supply Voltage - Min: 2.1 V 1. 0.002561 oz of Unit Weight

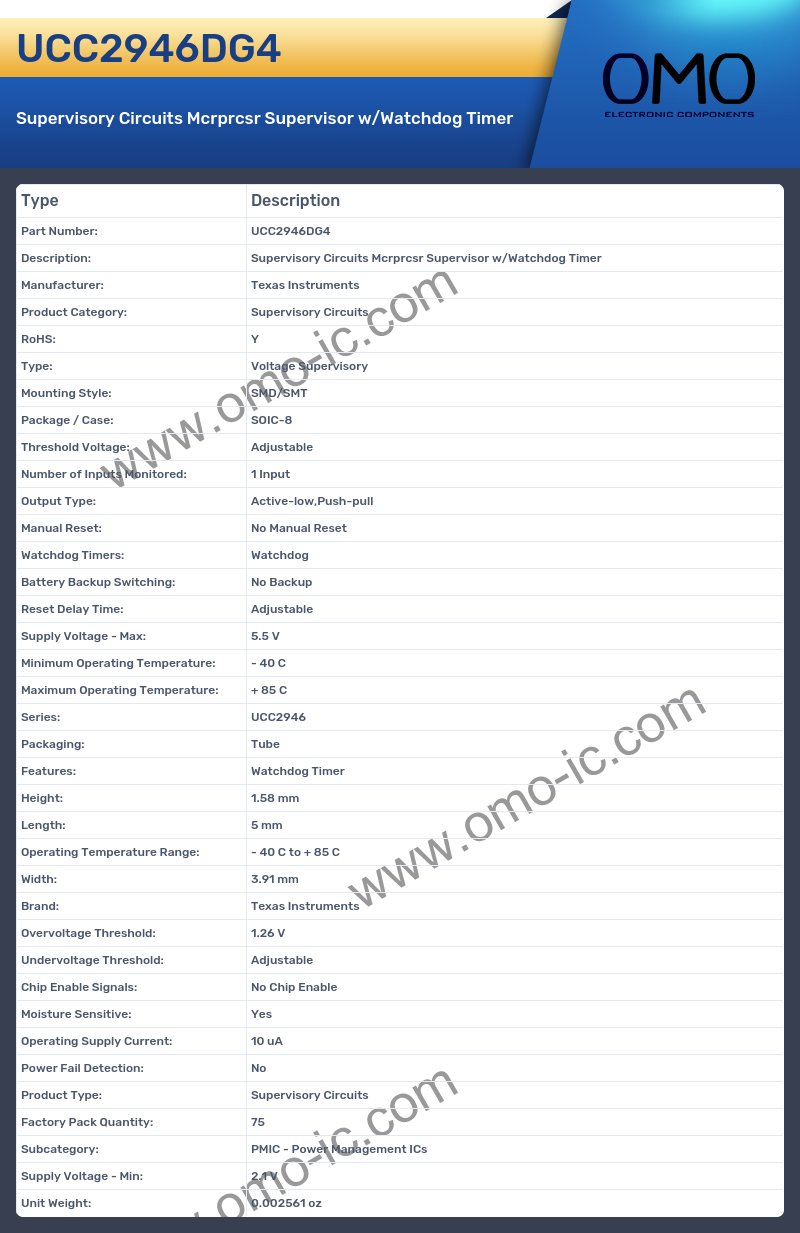

UCC2946DG4 Image

UCC2946DG4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Supervisory Circuits
• RoHS: Y
• Type: Voltage Supervisory
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Threshold Voltage: Adjustable
• Number of Inputs Monitored: 1 Input
• Output Type: Active-low,Push-pull
• Manual Reset: No Manual Reset
• Watchdog Timers: Watchdog
• Battery Backup Switching: No Backup
• Reset Delay Time: Adjustable
• Supply Voltage - Max: 5.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Series: UCC2946
• Packaging: Tube
• Features: Watchdog Timer
• Height: 1.58 mm
• Length: 5 mm
• Operating Temperature Range: - 40 C to + 85 C
• Width: 3.91 mm
• Brand: Texas Instruments
• Overvoltage Threshold: 1.26 V
• Undervoltage Threshold: Adjustable
• Chip Enable Signals: No Chip Enable
• Moisture Sensitive: Yes
• Operating Supply Current: 10 uA
• Power Fail Detection: No
• Product Type: Supervisory Circuits
• Factory Pack Quantity: 75
• Subcategory: PMIC - Power Management ICs
• Supply Voltage - Min: 2.1 V
• Unit Weight: 0.002561 oz
