VNP5N07-E

VNP5N07-E Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of Through Hole. TO-220-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. 5 A continuous drain current Rds On value of 200 mOhms Gate-Source Threshold Voltage Range: 800 mV 31 W This product has a Single configuration. The Channel Mode is set to Enhancement. The AEC-Q101 Qualification Tube packaging for easy dispensing The Transistor Type is 1 N-Channel OMNIFET Power MOSFET. This device belongs to the Power MOSFET type. STMicroelectronics is a trusted brand for quality electronics Minimum forward transconductance of 4 S 40 ns, 1100 ns fall time MOSFET product type Rise Time is 60 ns, 400 ns. 1000 of 100 MOSFETs as subcategory Turn-off delay time is 150 ns, 3900 ns. The typical turn-on delay time is 50 ns, 150 ns. 1. 0.011640 oz of Unit Weight

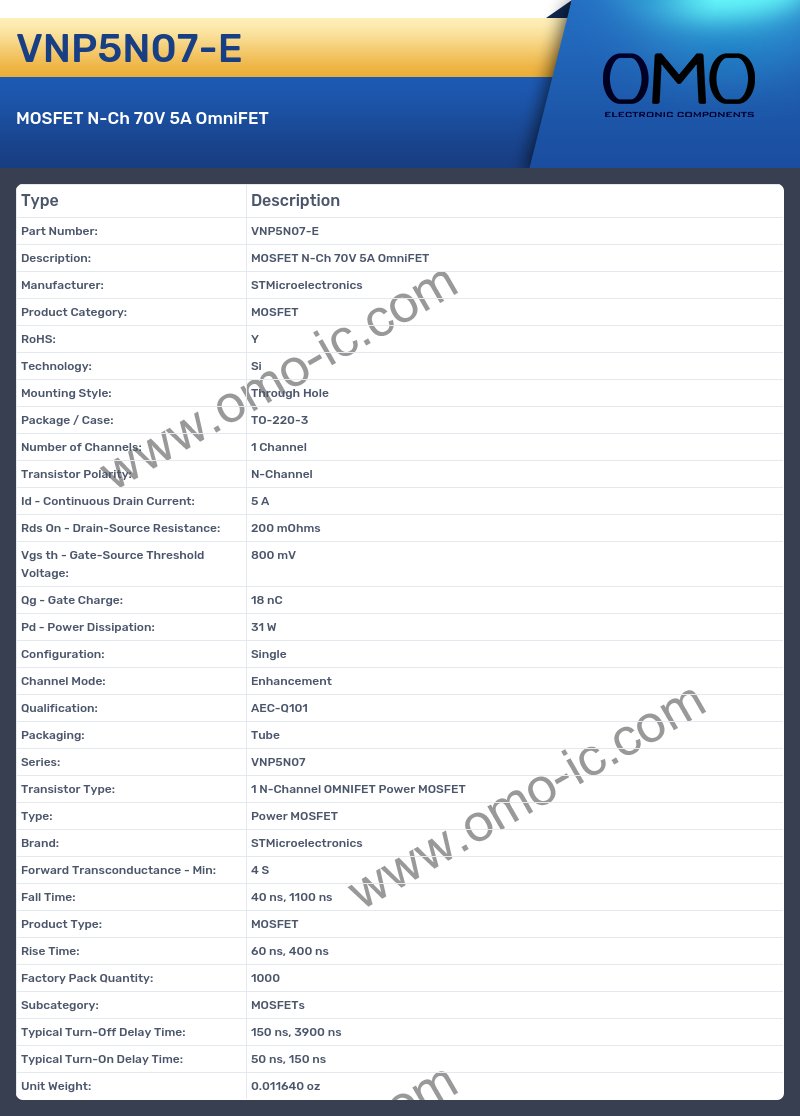

VNP5N07-E Image

VNP5N07-E Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: Through Hole
• Package / Case: TO-220-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Id - Continuous Drain Current: 5 A
• Rds On - Drain-Source Resistance: 200 mOhms
• Vgs th - Gate-Source Threshold Voltage: 800 mV
• Qg - Gate Charge: 18 nC
• Pd - Power Dissipation: 31 W
• Configuration: Single
• Channel Mode: Enhancement
• Qualification: AEC-Q101
• Packaging: Tube
• Series: VNP5N07
• Transistor Type: 1 N-Channel OMNIFET Power MOSFET
• Type: Power MOSFET
• Brand: STMicroelectronics
• Forward Transconductance - Min: 4 S
• Fall Time: 40 ns, 1100 ns
• Product Type: MOSFET
• Rise Time: 60 ns, 400 ns
• Factory Pack Quantity: 1000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 150 ns, 3900 ns
• Typical Turn-On Delay Time: 50 ns, 150 ns
• Unit Weight: 0.011640 oz
