ADS5409EVM

ADS5409EVM Overview

Product belongs to the ADS5409 series. This product is categorized as Evaluation Modules Type: ADC This product is designed ADS540x amplifier. This product's 900M. Data-Interface: DDR LVDS 12 bits 2 units Input range: 1 Vpp Included item: Board. IC package type: ADS5409 This product operates at a 5 V supply voltage for reliable performance. This product is an ADS5409 - 12 Bit 900M Samples per Second Analog to Digital Converter (ADC) Evaluation Board. This tool is designed for the ADS540x. GUI interface type

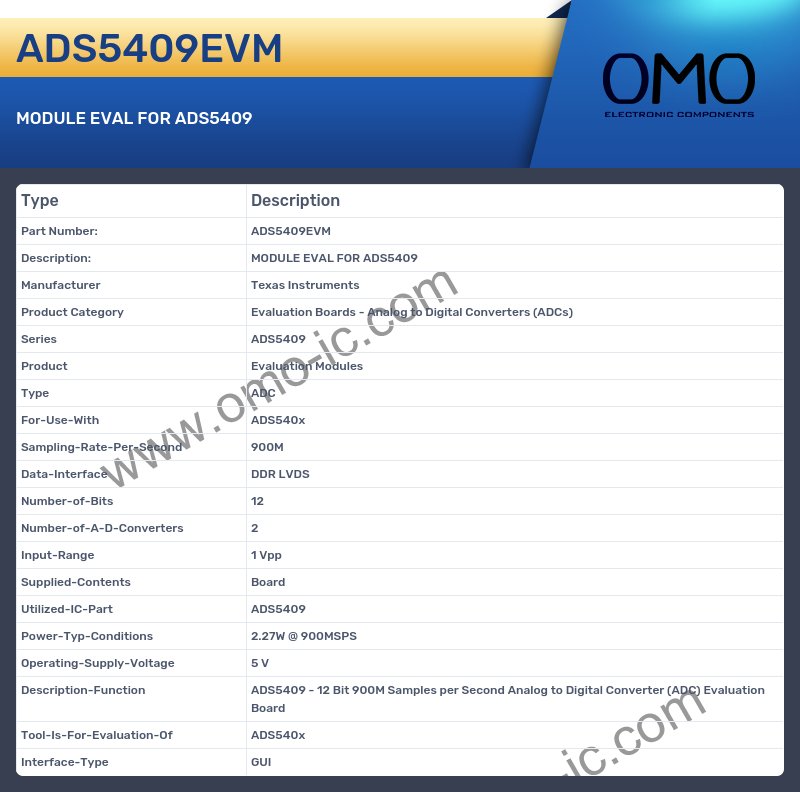

ADS5409EVM Image

ADS5409EVM Specifications

• Manufacturer Texas Instruments
• Product Category Evaluation Boards - Analog to Digital Converters (ADCs)
• Series ADS5409
• Product Evaluation Modules
• Type ADC
• For-Use-With ADS540x
• Sampling-Rate-Per-Second 900M
• Data-Interface DDR LVDS
• Number-of-Bits 12
• Number-of-A-D-Converters 2
• Input-Range 1 Vpp
• Supplied-Contents Board
• Utilized-IC-Part ADS5409
• Power-Typ-Conditions 2.27W @ 900MSPS
• Operating-Supply-Voltage 5 V
• Description-Function ADS5409 - 12 Bit 900M Samples per Second Analog to Digital Converter (ADC) Evaluation Board
• Tool-Is-For-Evaluation-Of ADS540x
• Interface-Type GUI
