ADS5500MPAPREP Overview

Product belongs to the ADS5500-EP series. This product is categorized as Analog to Digital Converters Cut Tape (CT) Alternate Packaging is the packaging method for this product Weight of 0.009108 oz SMD/SMT Mounting-Style HTQFP-64 The Differential for this product is CMOS/TTL. Operational temperature range: -55°C ~ 125°C Number of channels: 1 Channel Supplier device package: 64-HTQFP (10x10) This product's 125M. Data-Interface: Parallel 14 bits The Voltage-Supply-Analog is 3 V ~ 3.6 V. The Voltage Supply Digital for this product is 3 V ~ 3.6 V. Configuration S/H-ADC The architecture of this product is Pipelined . Internal is the reference type. 1 units Power-off control: 627 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C Parallel interface type Signal-to-Noise Ratio of 71.5 dB This product is also known as V62/05613-01XE and can be referred to by either part number. Number-of-Converters: 1 Converter 125 MS/s Sampling Rate Analog supply voltage: 3.3 V Digital Supply Voltage: 3 V to 3.6 V Integral Nonlinearity: +/- 8 LSB Differential nonlinearity: - 0.9 /1.1 LSB

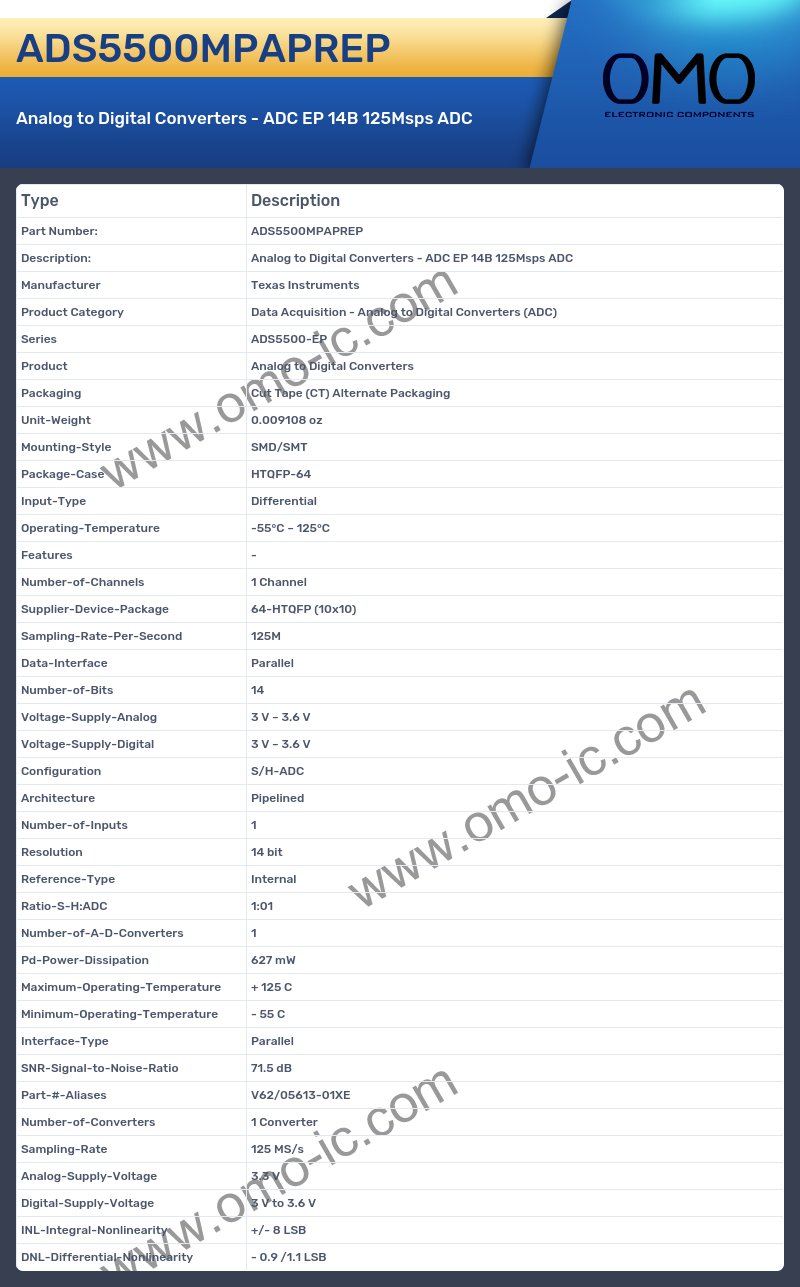

ADS5500MPAPREP Image

ADS5500MPAPREP Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS5500-EP
• Product Analog to Digital Converters
• Packaging Cut Tape (CT) Alternate Packaging
• Unit-Weight 0.009108 oz
• Mounting-Style SMD/SMT
• Package-Case HTQFP-64
• Input-Type Differential
• Operating-Temperature -55°C ~ 125°C
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 64-HTQFP (10x10)
• Sampling-Rate-Per-Second 125M
• Data-Interface Parallel
• Number-of-Bits 14
• Voltage-Supply-Analog 3 V ~ 3.6 V
• Voltage-Supply-Digital 3 V ~ 3.6 V
• Configuration S/H-ADC
• Architecture Pipelined
• Number-of-Inputs 1
• Resolution 14 bit
• Reference-Type Internal
• Ratio-S-H:ADC 1:01
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 627 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 71.5 dB
• Part-#-Aliases V62/05613-01XE
• Number-of-Converters 1 Converter
• Sampling-Rate 125 MS/s
• Analog-Supply-Voltage 3.3 V
• Digital-Supply-Voltage 3 V to 3.6 V
• INL-Integral-Nonlinearity +/- 8 LSB
• DNL-Differential-Nonlinearity - 0.9 /1.1 LSB
