ADS7804PB Overview

Product belongs to the ADS7804 series. This product is categorized as Analog to Digital Converters Tube is the packaging method for this product Weight of 0.072798 oz Through Hole Mounting-Style PDIP-28 The Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 1 Channel Supplier device package: 28-PDIP This product's 100k. Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. Configuration S/H-ADC The architecture of this product is SAR . External, Internal is the reference type. 1 units Power-off control: 100 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel interface type Signal-to-Noise Ratio of 72 dB Number-of-Converters: 1 Converter 100 kS/s Sampling Rate Analog supply voltage: 4.75 V to 5.25 V Digital Supply Voltage: 4.75 V to 5.25 V Integral Nonlinearity: +/- 0.45 LSB Differential nonlinearity: +/- 0.45 LSB

ADS7804PB Image

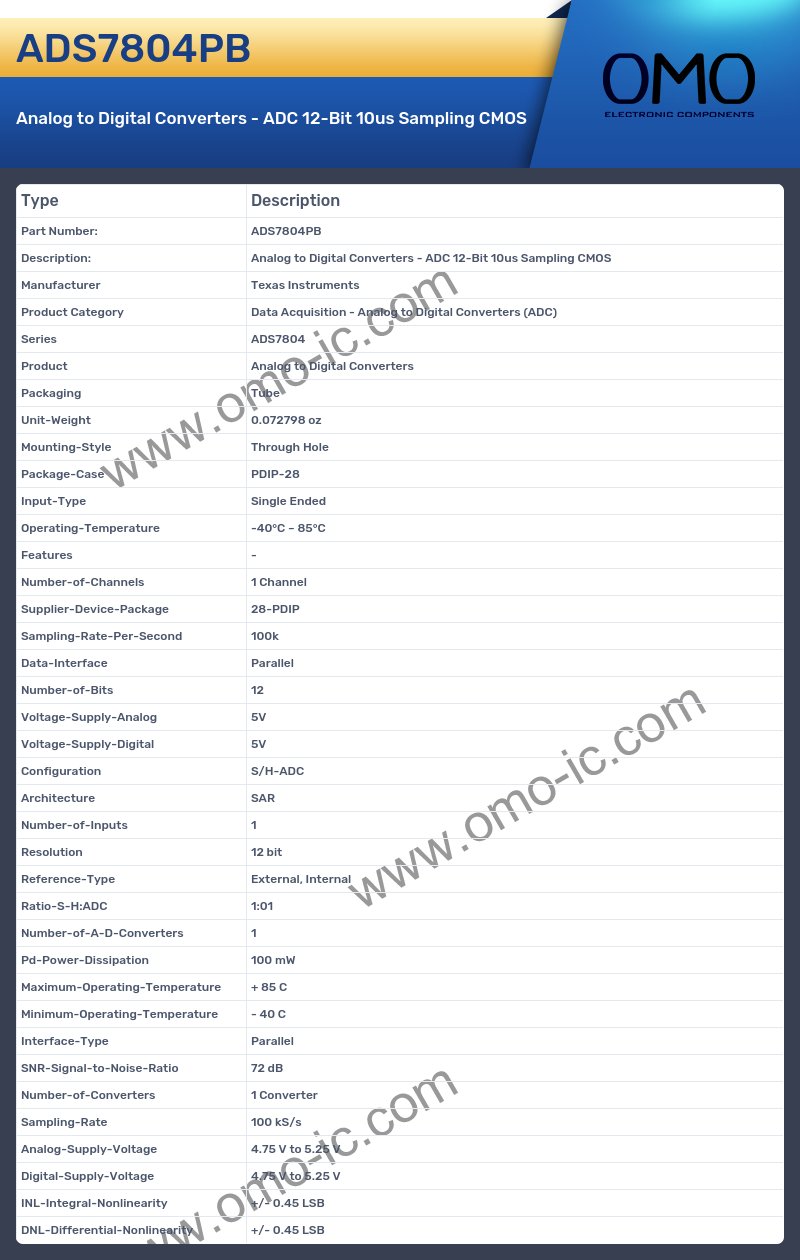

ADS7804PB Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS7804
• Product Analog to Digital Converters
• Packaging Tube
• Unit-Weight 0.072798 oz
• Mounting-Style Through Hole
• Package-Case PDIP-28
• Input-Type Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 28-PDIP
• Sampling-Rate-Per-Second 100k
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Configuration S/H-ADC
• Architecture SAR
• Number-of-Inputs 1
• Resolution 12 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1:01
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 100 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 72 dB
• Number-of-Converters 1 Converter
• Sampling-Rate 100 kS/s
• Analog-Supply-Voltage 4.75 V to 5.25 V
• Digital-Supply-Voltage 4.75 V to 5.25 V
• INL-Integral-Nonlinearity +/- 0.45 LSB
• DNL-Differential-Nonlinearity +/- 0.45 LSB
