ADS7957SDBTR

ADS7957SDBTR Overview

Product belongs to the microPOWER series. This product is categorized as Analog to Digital Converters Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.004374 oz SMD/SMT Mounting-Style TSSOP-38 The Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 125°C Number of channels: 16 Channel Supplier device package: 38-TSSOP This product's 1M. Data-Interface: SPI 10 bits The Voltage-Supply-Analog is 2.7 V ~ 5.25 V. The Voltage Supply Digital for this product is 1.7 V ~ 5.25 V. Configuration MUX-S/H-ADC The architecture of this product is SAR . External is the reference type. 1 units Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Serial SPI interface type Signal-to-Noise Ratio of 60 dB Number-of-Converters: 1 Converter 1 MS/s Sampling Rate Analog supply voltage: 2.7 V to 5.25 V Digital Supply Voltage: 1.7 V to 5.25 V Integral Nonlinearity: +/- 0.5 LSB Reference voltage is 2.51 V . Differential nonlinearity: +/- 0.5 LSB

ADS7957SDBTR Image

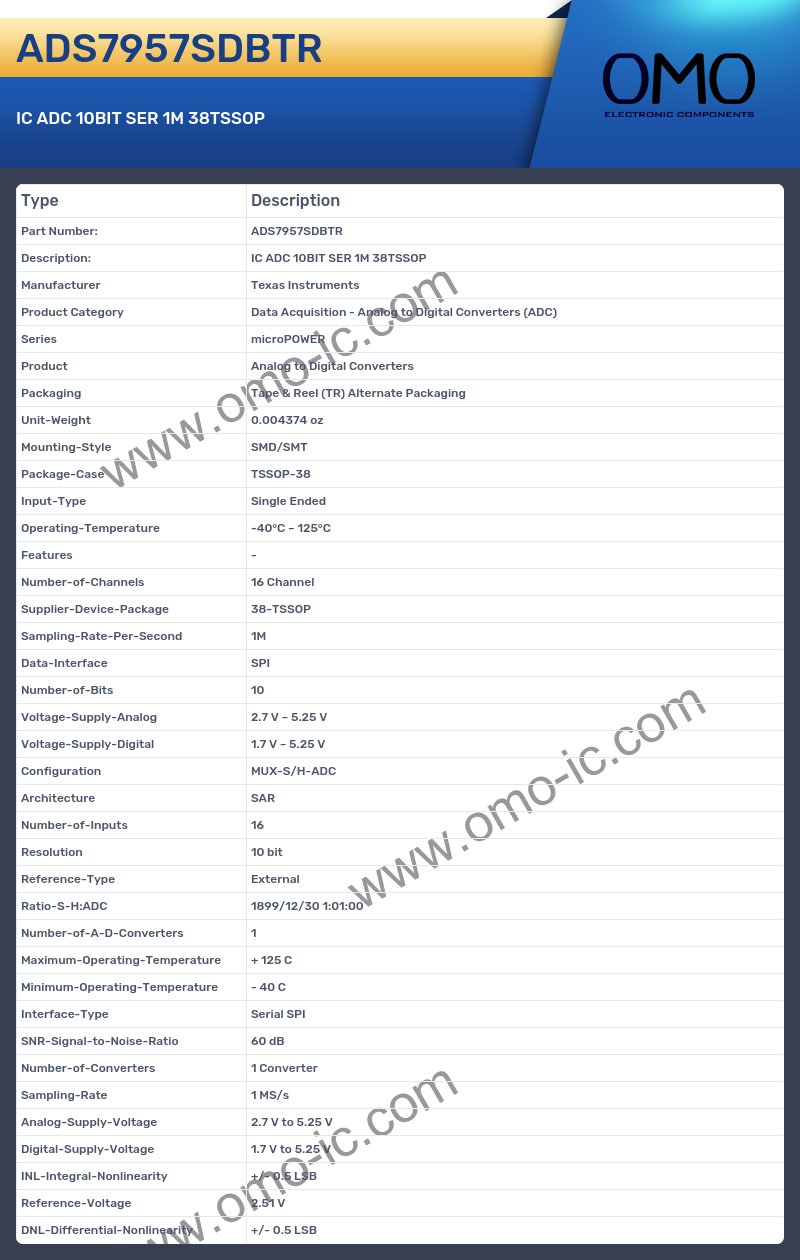

ADS7957SDBTR Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series microPOWER
• Product Analog to Digital Converters
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.004374 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-38
• Input-Type Single Ended
• Operating-Temperature -40°C ~ 125°C
• Features -
• Number-of-Channels 16 Channel
• Supplier-Device-Package 38-TSSOP
• Sampling-Rate-Per-Second 1M
• Data-Interface SPI
• Number-of-Bits 10
• Voltage-Supply-Analog 2.7 V ~ 5.25 V
• Voltage-Supply-Digital 1.7 V ~ 5.25 V
• Configuration MUX-S/H-ADC
• Architecture SAR
• Number-of-Inputs 16
• Resolution 10 bit
• Reference-Type External
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial SPI
• SNR-Signal-to-Noise-Ratio 60 dB
• Number-of-Converters 1 Converter
• Sampling-Rate 1 MS/s
• Analog-Supply-Voltage 2.7 V to 5.25 V
• Digital-Supply-Voltage 1.7 V to 5.25 V
• INL-Integral-Nonlinearity +/- 0.5 LSB
• Reference-Voltage 2.51 V
• DNL-Differential-Nonlinearity +/- 0.5 LSB
