CDC950DGG

CDC950DGG Overview

Product belongs to the CDC950 series. Type: Clock/Frequency Synthesizer Tube Alternate Packaging is the packaging method for this product Weight of 0.007873 oz SMD/SMT Mounting-Style TSSOP-48 Operational temperature range: 0°C ~ 85°C Surface Mount mounting type Voltage Supply Range: 3.135 V ~ 3.465 V Supplier device package: 48-TSSOP Input type: Clock, Crystal The CMOS, HSCL. 1 is 8. The Ratio-Input:Output for this product is 1899/12/30 1:20:00. Differential input and output are both available: No/Yes Maximum frequency of 133MHz Yes/No Divider-Multiplier Number-of-Outputs: 12 Output Power-off control: 730 mW Maximum operating temperature of + 85 C Minimum operating temperature: 0 C 200 mA is 92 nA. Maximum supply voltage of 3.465 V Minimum supply voltage is 3.135 V Maximum-Input-Frequency: 14 MHz Maximum output frequency is 133 MHz. HCLK is the output level. This product has an Crystal for easy integration with other devices.

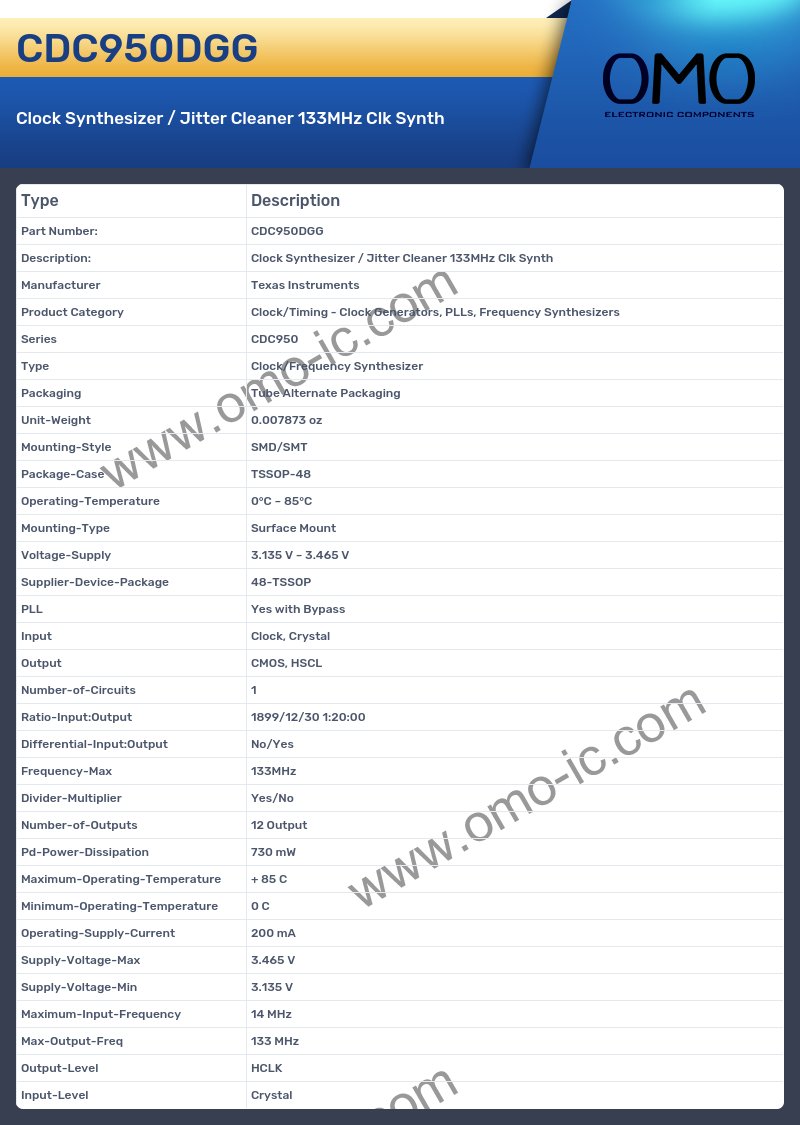

CDC950DGG Image

CDC950DGG Specifications

• Manufacturer Texas Instruments
• Product Category Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers
• Series CDC950
• Type Clock/Frequency Synthesizer
• Packaging Tube Alternate Packaging
• Unit-Weight 0.007873 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-48
• Operating-Temperature 0°C ~ 85°C
• Mounting-Type Surface Mount
• Voltage-Supply 3.135 V ~ 3.465 V
• Supplier-Device-Package 48-TSSOP
• PLL Yes with Bypass
• Input Clock, Crystal
• Output CMOS, HSCL
• Number-of-Circuits 1
• Ratio-Input:Output 1899/12/30 1:20:00
• Differential-Input:Output No/Yes
• Frequency-Max 133MHz
• Divider-Multiplier Yes/No
• Number-of-Outputs 12 Output
• Pd-Power-Dissipation 730 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 200 mA
• Supply-Voltage-Max 3.465 V
• Supply-Voltage-Min 3.135 V
• Maximum-Input-Frequency 14 MHz
• Max-Output-Freq 133 MHz
• Output-Level HCLK
• Input-Level Crystal
