CDCEL824PWR

CDCEL824PWR Overview

Product belongs to the CDCEL824 series. Type: Programmable 2-PLL Clock Synthesizer Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002222 oz SMD/SMT Mounting-Style TSSOP-16 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Voltage Supply Range: 1.7 V ~ 1.9 V Supplier device package: 16-HTSSOP Input type: LVCMOS, Crystal The LVCMOS. 1 is 8. The Ratio-Input:Output for this product is 1899/12/30 1:04:00. Differential input and output are both available: No/No Maximum frequency of 201MHz Yes/Yes Divider-Multiplier Number-of-Outputs: 4 Output Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 20 mA is 92 nA. Maximum supply voltage of 1.9 V Minimum supply voltage is 1.7 V Maximum-Input-Frequency: 130 MHz Maximum output frequency is 201 MHz. LVCMOS is the output level. This product has an Crystal LVCMOS for easy integration with other devices.

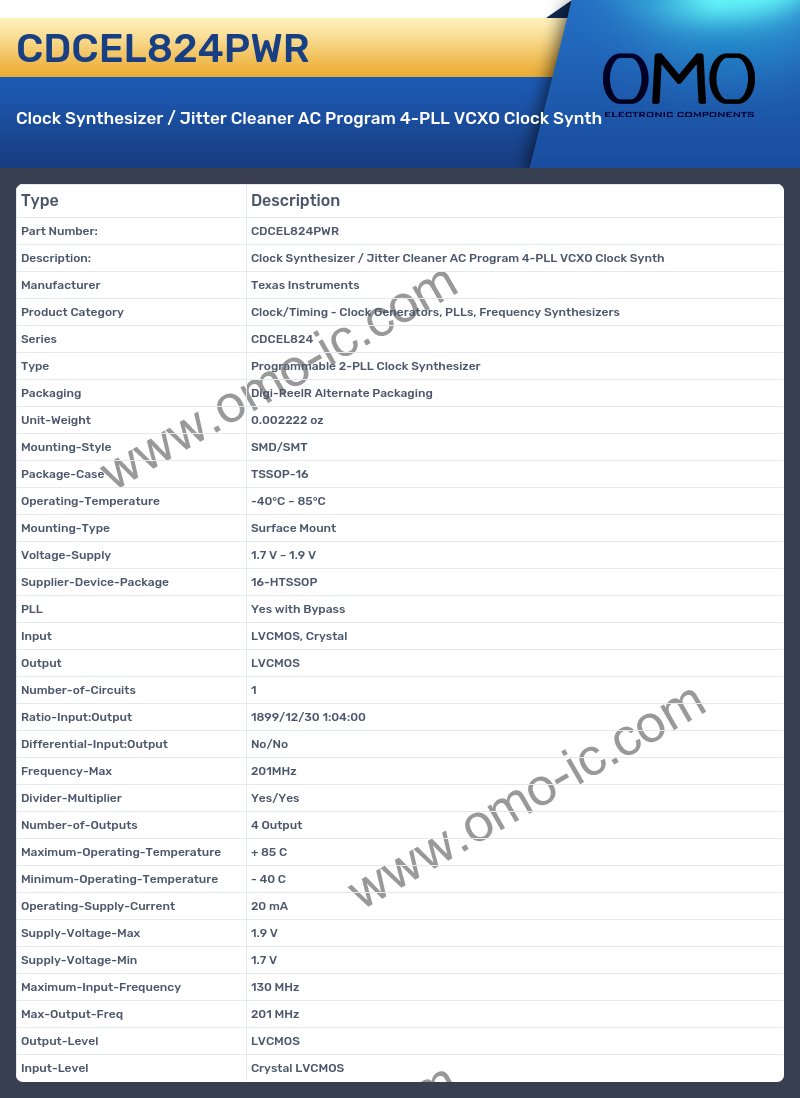

CDCEL824PWR Image

CDCEL824PWR Specifications

• Manufacturer Texas Instruments
• Product Category Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers
• Series CDCEL824
• Type Programmable 2-PLL Clock Synthesizer
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002222 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-16
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Voltage-Supply 1.7 V ~ 1.9 V
• Supplier-Device-Package 16-HTSSOP
• PLL Yes with Bypass
• Input LVCMOS, Crystal
• Output LVCMOS
• Number-of-Circuits 1
• Ratio-Input:Output 1899/12/30 1:04:00
• Differential-Input:Output No/No
• Frequency-Max 201MHz
• Divider-Multiplier Yes/Yes
• Number-of-Outputs 4 Output
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 20 mA
• Supply-Voltage-Max 1.9 V
• Supply-Voltage-Min 1.7 V
• Maximum-Input-Frequency 130 MHz
• Max-Output-Freq 201 MHz
• Output-Level LVCMOS
• Input-Level Crystal LVCMOS
