CSD18542KCS

CSD18542KCS Overview

Product belongs to the CSD18542KCS series. Tube is the packaging method for this product Weight of 0.211644 oz Through Hole Mounting-Style Trade name: NexFET. TO-220-3 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 200 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C This product has a 21 ns of 16 ns. This product has a 5 ns of 16 ns. This product's +/- 20 V. The ID of continuous drain current is 200 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 60 V. This product has a 1.5 V Vgs-th gate-source threshold voltage for efficient power management. The 5.1 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 18 ns This product has a 6 ns. Qg-Gate-Charge is 44 nC. This product features a 198 S of 500 S for high performance. This product operates in Enhancement channel mode for optimal performance.

CSD18542KCS Image

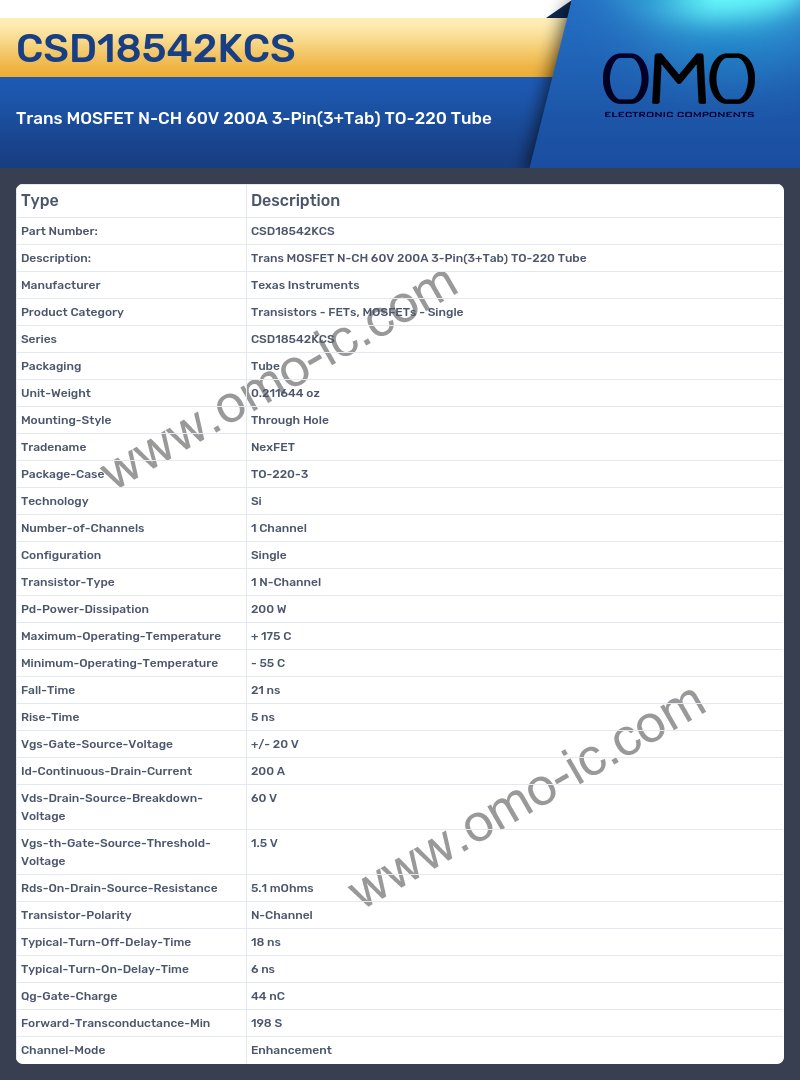

CSD18542KCS Specifications

• Manufacturer Texas Instruments
• Product Category Transistors - FETs, MOSFETs - Single
• Series CSD18542KCS
• Packaging Tube
• Unit-Weight 0.211644 oz
• Mounting-Style Through Hole
• Tradename NexFET
• Package-Case TO-220-3
• Technology Si
• Number-of-Channels 1 Channel
• Configuration Single
• Transistor-Type 1 N-Channel
• Pd-Power-Dissipation 200 W
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 21 ns
• Rise-Time 5 ns
• Vgs-Gate-Source-Voltage +/- 20 V
• Id-Continuous-Drain-Current 200 A
• Vds-Drain-Source-Breakdown-Voltage 60 V
• Vgs-th-Gate-Source-Threshold-Voltage 1.5 V
• Rds-On-Drain-Source-Resistance 5.1 mOhms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 18 ns
• Typical-Turn-On-Delay-Time 6 ns
• Qg-Gate-Charge 44 nC
• Forward-Transconductance-Min 198 S
• Channel-Mode Enhancement
