| Mfr. #: | CSD19534KCS |
|---|---|
| 製造商: | Texas Instruments |
| 描述: | MOSFET N-CH 100V 100A TO220 |
| 生命週期: | 製造商新產品 |
| 數據表: | CSD19534KCS 數據表 |
Product belongs to the CSD19534KCS series. Tube is the packaging method for this product Weight of 0.211644 oz Through Hole Mounting-Style Trade name: NexFET. TO-220-3 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 118 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C This product has a 1 ns of 16 ns. This product has a 2 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 54 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 100 V. This product has a 2.4 V Vgs-th gate-source threshold voltage for efficient power management. The 16.3 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 9 ns This product has a 6 ns. Qg-Gate-Charge is 16.4 nC.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

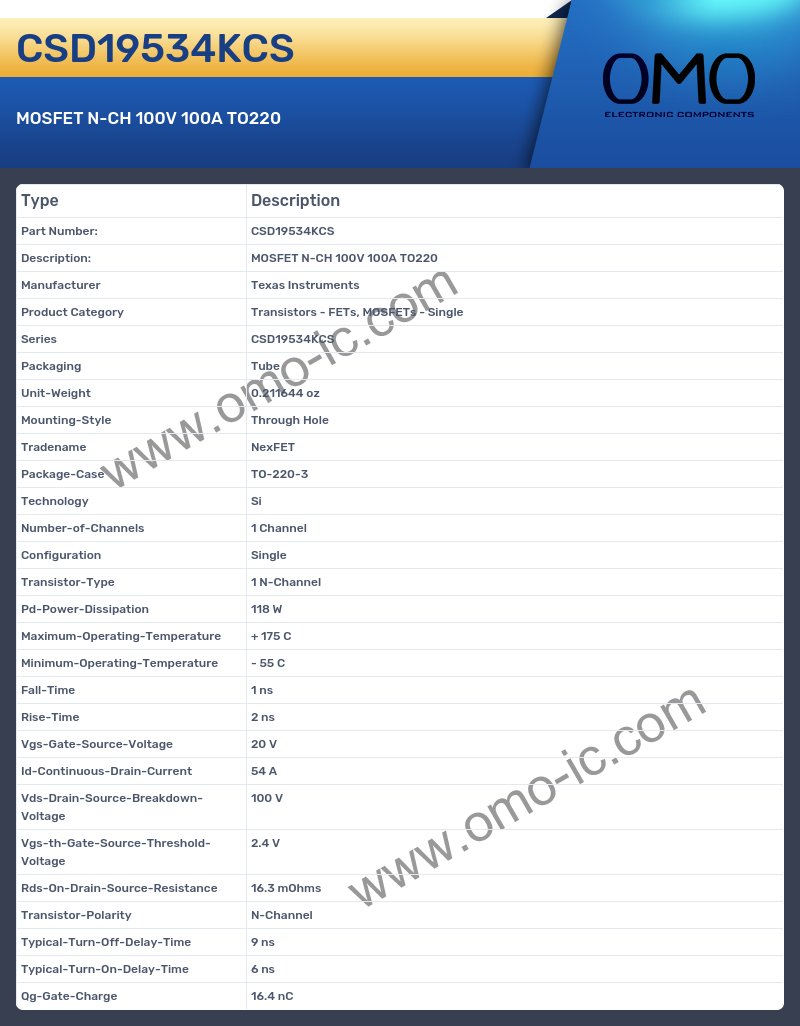

CSD19534KCS Specifications
