DAC7715U Overview

Product belongs to the DAC7715 series. This product is categorized as Digital to Analog Converters Type: Precision DAC Tube Alternate Packaging is the packaging method for this product Weight of 0.014829 oz SMD/SMT Mounting-Style SOIC-16 Operational temperature range: -40°C ~ 85°C Output-Type: Voltage - Buffered Number of channels: 4 Channel Supplier device package: 16-SOIC Data-Interface: SPI 12 bits The Voltage-Supply-Analog is ±14.25 V ~ 15.75 V. The Voltage Supply Digital for this product is 14.25 V ~ 15.75 V. The architecture of this product is R-2R . External is the reference type. Number of D-A converters: 4 The 10μs is an impressive 15 us. No Differential-Output Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial interface type Maximum supply voltage of 15.75 V Minimum supply voltage is 14.25 V Number-of-Converters: 4 Converter 89 kS/s Sampling Rate

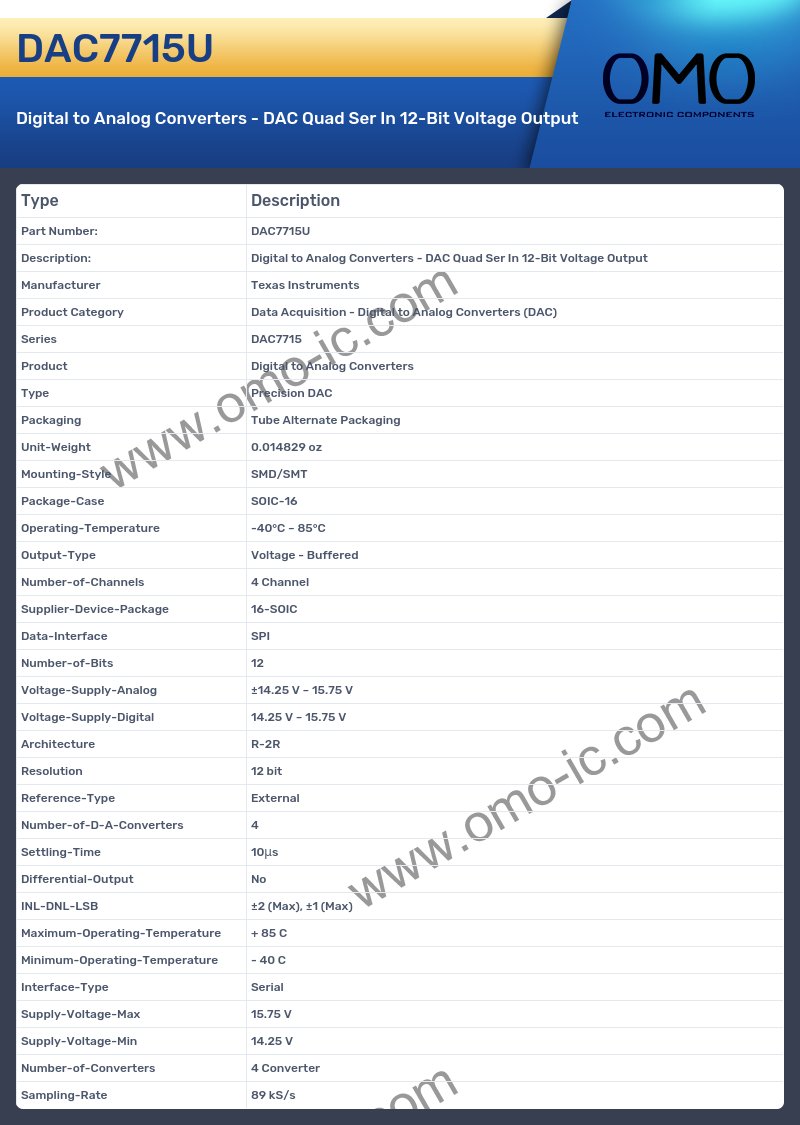

DAC7715U Image

DAC7715U Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DAC7715
• Product Digital to Analog Converters
• Type Precision DAC
• Packaging Tube Alternate Packaging
• Unit-Weight 0.014829 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Operating-Temperature -40°C ~ 85°C
• Output-Type Voltage - Buffered
• Number-of-Channels 4 Channel
• Supplier-Device-Package 16-SOIC
• Data-Interface SPI
• Number-of-Bits 12
• Voltage-Supply-Analog ±14.25 V ~ 15.75 V
• Voltage-Supply-Digital 14.25 V ~ 15.75 V
• Architecture R-2R
• Resolution 12 bit
• Reference-Type External
• Number-of-D-A-Converters 4
• Settling-Time 10μs
• Differential-Output No
• INL-DNL-LSB ±2 (Max), ±1 (Max)
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial
• Supply-Voltage-Max 15.75 V
• Supply-Voltage-Min 14.25 V
• Number-of-Converters 4 Converter
• Sampling-Rate 89 kS/s
