DAC7716SRHAT

DAC7716SRHAT Overview

Product belongs to the DAC7716 series. This product is categorized as Digital to Analog Converters Type: Precision DAC Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.003668 oz SMD/SMT Mounting-Style VQFN-40 Operational temperature range: -40°C ~ 105°C Output-Type: Voltage - Buffered Number of channels: 4 Channel Supplier device package: 40-VQFN (6x6) Data-Interface: SPI 12 bits The Voltage-Supply-Analog is 4.75 V ~ 24 V, -4.75 V ~ -18 V. The Voltage Supply Digital for this product is 2.7 V ~ 5.5 V. The architecture of this product is R-2R . External is the reference type. Number of D-A converters: 4 The 7μs (Typ) is an impressive 15 us. No Differential-Output Maximum operating temperature of + 105 C Minimum operating temperature: - 40 C Serial 3-Wire SPI interface type The DAC7716EVM. Number-of-Converters: 4 Converter

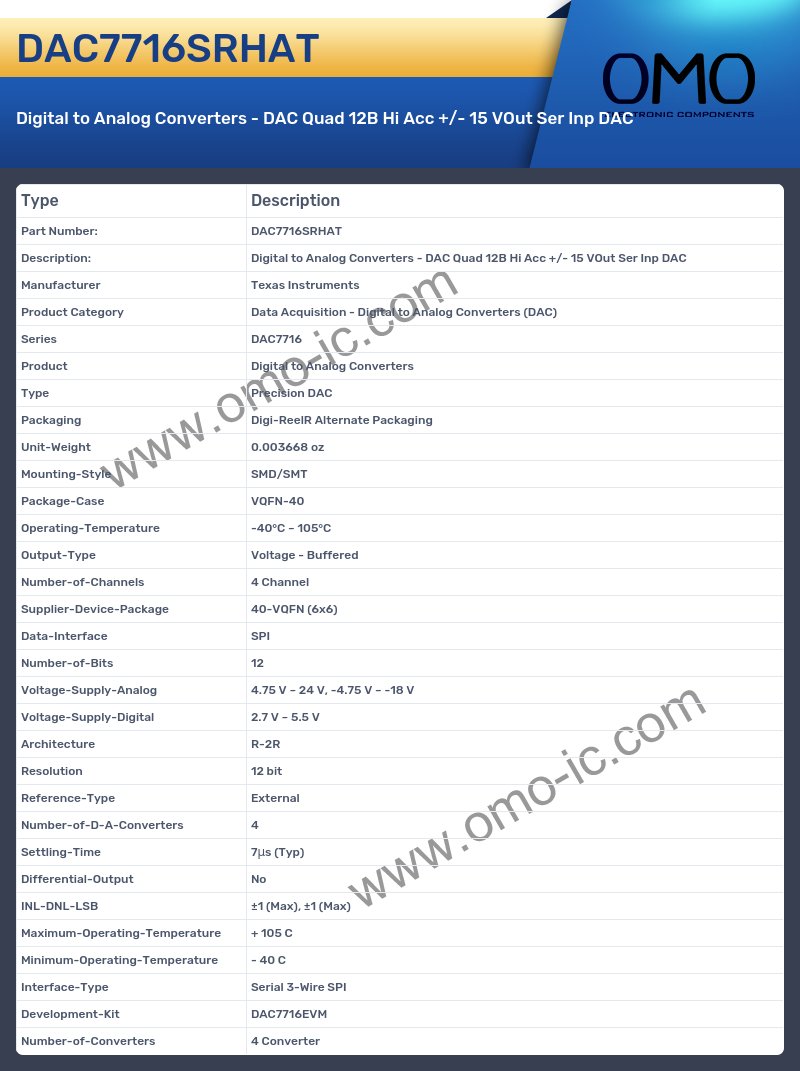

DAC7716SRHAT Image

DAC7716SRHAT Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DAC7716
• Product Digital to Analog Converters
• Type Precision DAC
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.003668 oz
• Mounting-Style SMD/SMT
• Package-Case VQFN-40
• Operating-Temperature -40°C ~ 105°C
• Output-Type Voltage - Buffered
• Number-of-Channels 4 Channel
• Supplier-Device-Package 40-VQFN (6x6)
• Data-Interface SPI
• Number-of-Bits 12
• Voltage-Supply-Analog 4.75 V ~ 24 V, -4.75 V ~ -18 V
• Voltage-Supply-Digital 2.7 V ~ 5.5 V
• Architecture R-2R
• Resolution 12 bit
• Reference-Type External
• Number-of-D-A-Converters 4
• Settling-Time 7μs (Typ)
• Differential-Output No
• INL-DNL-LSB ±1 (Max), ±1 (Max)
• Maximum-Operating-Temperature + 105 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial 3-Wire SPI
• Development-Kit DAC7716EVM
• Number-of-Converters 4 Converter
