DAC7734E

DAC7734E Overview

Product belongs to the DAC7734 series. This product is categorized as Digital to Analog Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.021175 oz SMD/SMT Mounting-Style SSOP-48 Operational temperature range: -40°C ~ 85°C Output-Type: Voltage - Buffered Number of channels: 4 Channel Supplier device package: 48-SSOP Data-Interface: SPI 16 bits The Voltage-Supply-Analog is ±14.25 V ~ 15.75 V. The Voltage Supply Digital for this product is 5V. The architecture of this product is R-2R . External is the reference type. Number of D-A converters: 4 The 11μs is an impressive 15 us. No Differential-Output Power-off control: 170 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 50 uA is 92 nA. Serial interface type Maximum supply voltage of 15.75 V Minimum supply voltage is 14.25 V Number-of-Converters: 4 Converter

DAC7734E Image

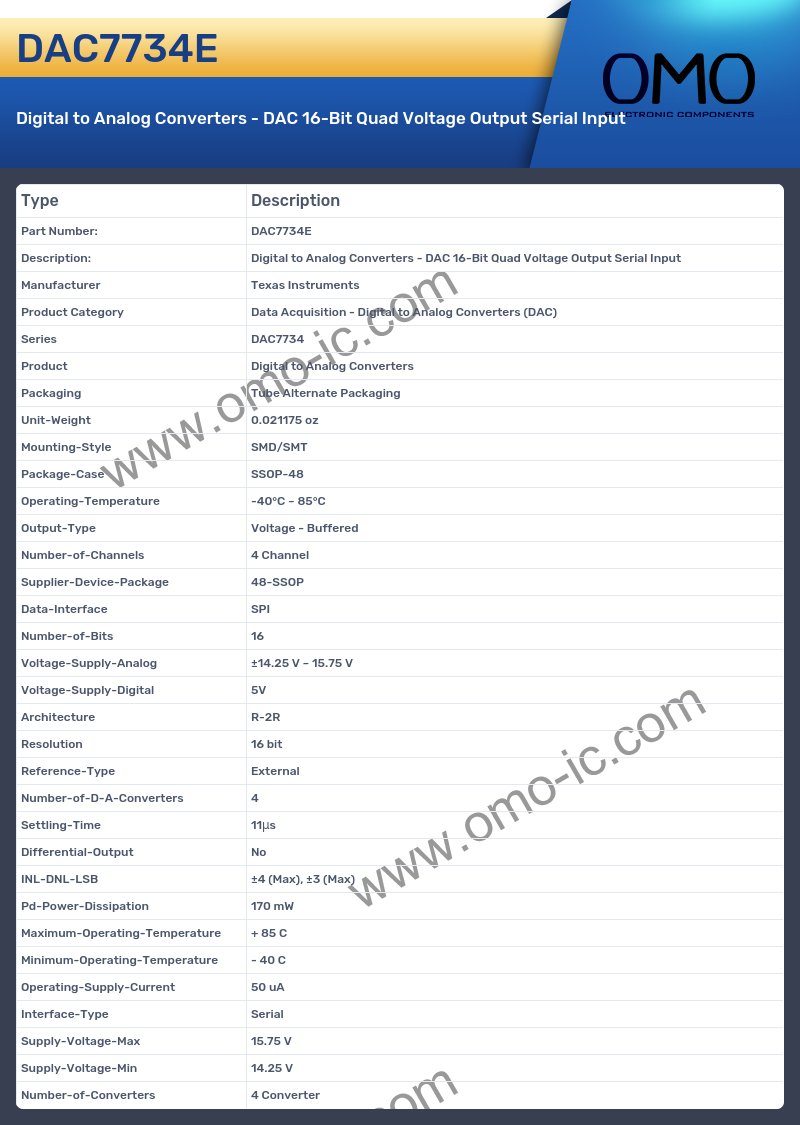

DAC7734E Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DAC7734
• Product Digital to Analog Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.021175 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-48
• Operating-Temperature -40°C ~ 85°C
• Output-Type Voltage - Buffered
• Number-of-Channels 4 Channel
• Supplier-Device-Package 48-SSOP
• Data-Interface SPI
• Number-of-Bits 16
• Voltage-Supply-Analog ±14.25 V ~ 15.75 V
• Voltage-Supply-Digital 5V
• Architecture R-2R
• Resolution 16 bit
• Reference-Type External
• Number-of-D-A-Converters 4
• Settling-Time 11μs
• Differential-Output No
• INL-DNL-LSB ±4 (Max), ±3 (Max)
• Pd-Power-Dissipation 170 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 50 uA
• Interface-Type Serial
• Supply-Voltage-Max 15.75 V
• Supply-Voltage-Min 14.25 V
• Number-of-Converters 4 Converter
