DAC7800LU

DAC7800LU Overview

Product belongs to the DAC7800 series. This product is categorized as Digital to Analog Converters Tube is the packaging method for this product Weight of 0.014829 oz SMD/SMT Mounting-Style SOIC-16 Operational temperature range: -40°C ~ 85°C Output-Type: Current - Unbuffered Number of channels: 2 Channel Supplier device package: 16-SOIC Data-Interface: SPI 12 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. The architecture of this product is R-2R . External is the reference type. Number of D-A converters: 2 The 800ns is an impressive 15 us. No Differential-Output Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial SPI interface type Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V Number-of-Converters: 2 Converter 1.25 MS/s Sampling Rate

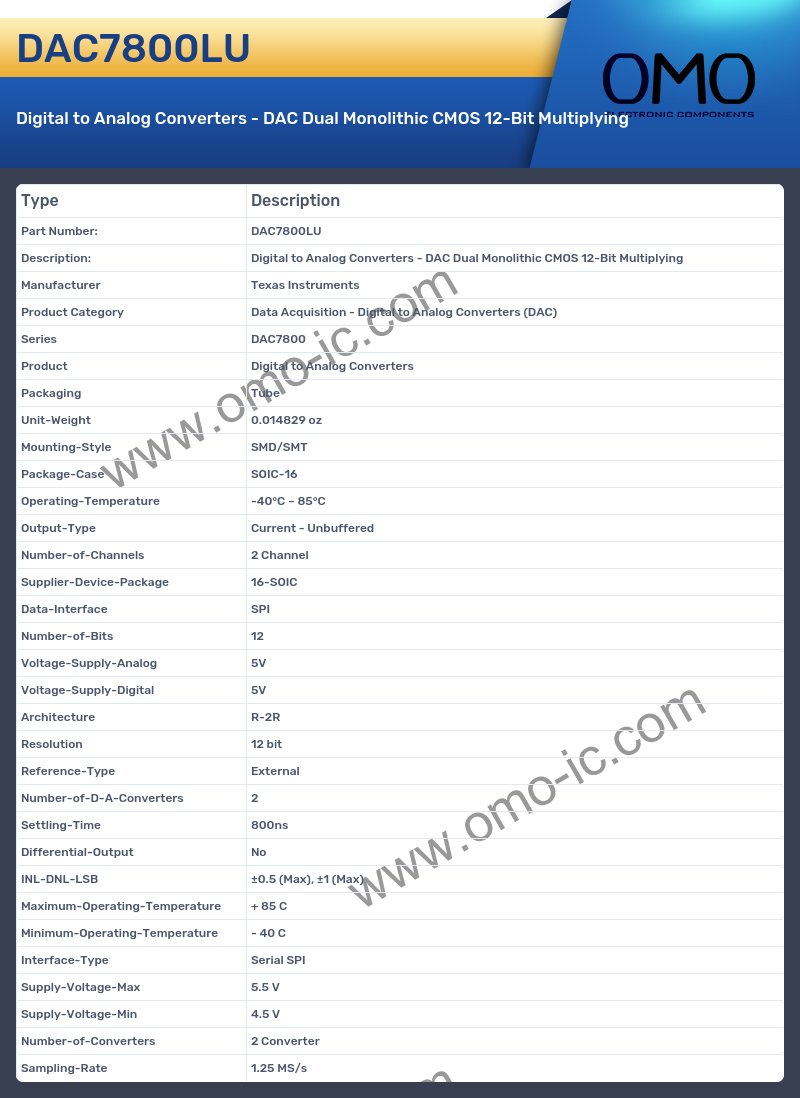

DAC7800LU Image

DAC7800LU Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DAC7800
• Product Digital to Analog Converters
• Packaging Tube
• Unit-Weight 0.014829 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Operating-Temperature -40°C ~ 85°C
• Output-Type Current - Unbuffered
• Number-of-Channels 2 Channel
• Supplier-Device-Package 16-SOIC
• Data-Interface SPI
• Number-of-Bits 12
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Architecture R-2R
• Resolution 12 bit
• Reference-Type External
• Number-of-D-A-Converters 2
• Settling-Time 800ns
• Differential-Output No
• INL-DNL-LSB ±0.5 (Max), ±1 (Max)
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial SPI
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Number-of-Converters 2 Converter
• Sampling-Rate 1.25 MS/s
