DAC7802LP

DAC7802LP Overview

Product belongs to the - series. Tube is the packaging method for this product 24-DIP (0.300", 7.62mm) Operational temperature range: -40°C ~ 85°C Output-Type: Current - Unbuffered Supplier device package: 24-PDIP Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. The architecture of this product is R-2R . External is the reference type. Number of D-A converters: 2 The 800ns is an impressive 15 us. No Differential-Output

DAC7802LP Image

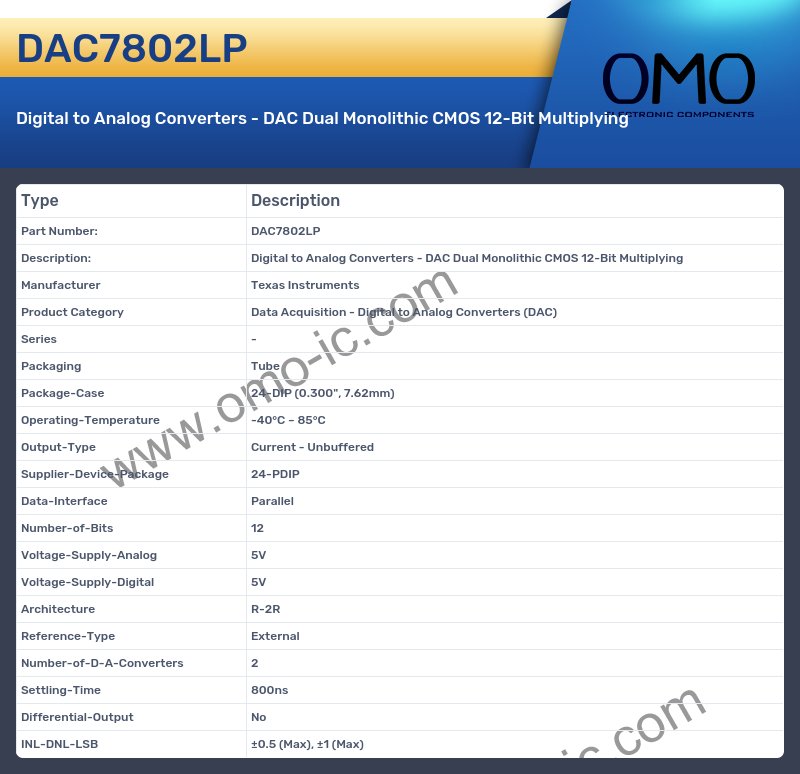

DAC7802LP Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series -
• Packaging Tube
• Package-Case 24-DIP (0.300", 7.62mm)
• Operating-Temperature -40°C ~ 85°C
• Output-Type Current - Unbuffered
• Supplier-Device-Package 24-PDIP
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Architecture R-2R
• Reference-Type External
• Number-of-D-A-Converters 2
• Settling-Time 800ns
• Differential-Output No
• INL-DNL-LSB ±0.5 (Max), ±1 (Max)
