DAC811BH

DAC811BH Overview

Product belongs to the DAC811 series. This product is categorized as Digital to Analog Converters Tube is the packaging method for this product Through Hole Mounting-Style CDIP-28 SB Operational temperature range: -25°C ~ 85°C Output-Type: Voltage - Buffered Number of channels: 1 Channel Supplier device package: 28-CDIP SB Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is ±11.4 V ~ 16.5 V. The Voltage Supply Digital for this product is 5V. The architecture of this product is R-2R . Internal is the reference type. Number of D-A converters: 1 The 4μs is an impressive 15 us. No Differential-Output Maximum operating temperature of + 85 C Minimum operating temperature: - 25 C Parallel interface type Number-of-Converters: 1 Converter

DAC811BH Image

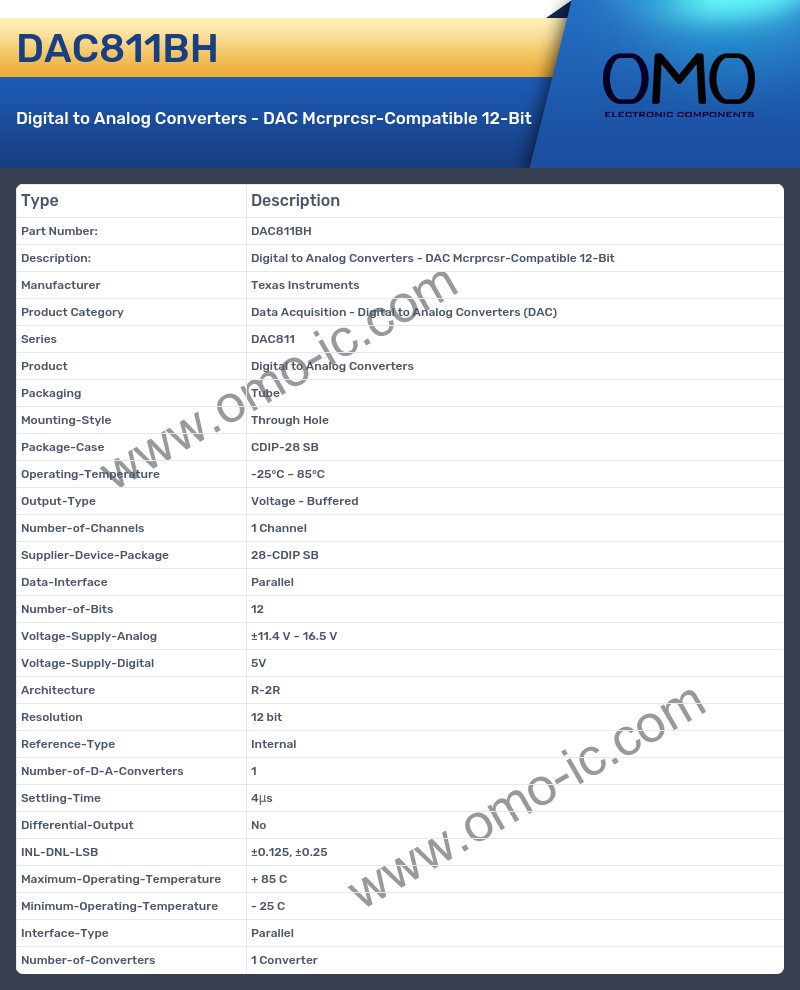

DAC811BH Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DAC811
• Product Digital to Analog Converters
• Packaging Tube
• Mounting-Style Through Hole
• Package-Case CDIP-28 SB
• Operating-Temperature -25°C ~ 85°C
• Output-Type Voltage - Buffered
• Number-of-Channels 1 Channel
• Supplier-Device-Package 28-CDIP SB
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog ±11.4 V ~ 16.5 V
• Voltage-Supply-Digital 5V
• Architecture R-2R
• Resolution 12 bit
• Reference-Type Internal
• Number-of-D-A-Converters 1
• Settling-Time 4μs
• Differential-Output No
• INL-DNL-LSB ±0.125, ±0.25
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 25 C
• Interface-Type Parallel
• Number-of-Converters 1 Converter
