DAC8412FPC Overview

Product belongs to the DAC8412 series. This product is categorized as Digital to Analog Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.041719 oz SMD/SMT Mounting-Style PLCC-28 Operational temperature range: -40°C ~ 85°C Output-Type: Voltage - Buffered Number of channels: 4 Channel Supplier device package: 28-PLCC (11.51x11.51) Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is 5 V ~ 15 V, -15V. The Voltage Supply Digital for this product is 5V. The architecture of this product is R-2R . External is the reference type. Number of D-A converters: 4 The 10μs (Typ) is an impressive 15 us. No Differential-Output Power-off control: 1000 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 8.5 mA is 92 nA. Parallel interface type Maximum supply voltage of 15 V Minimum supply voltage is 5 V Number-of-Converters: 4 Converter Reference voltage is 10 V .

DAC8412FPC Image

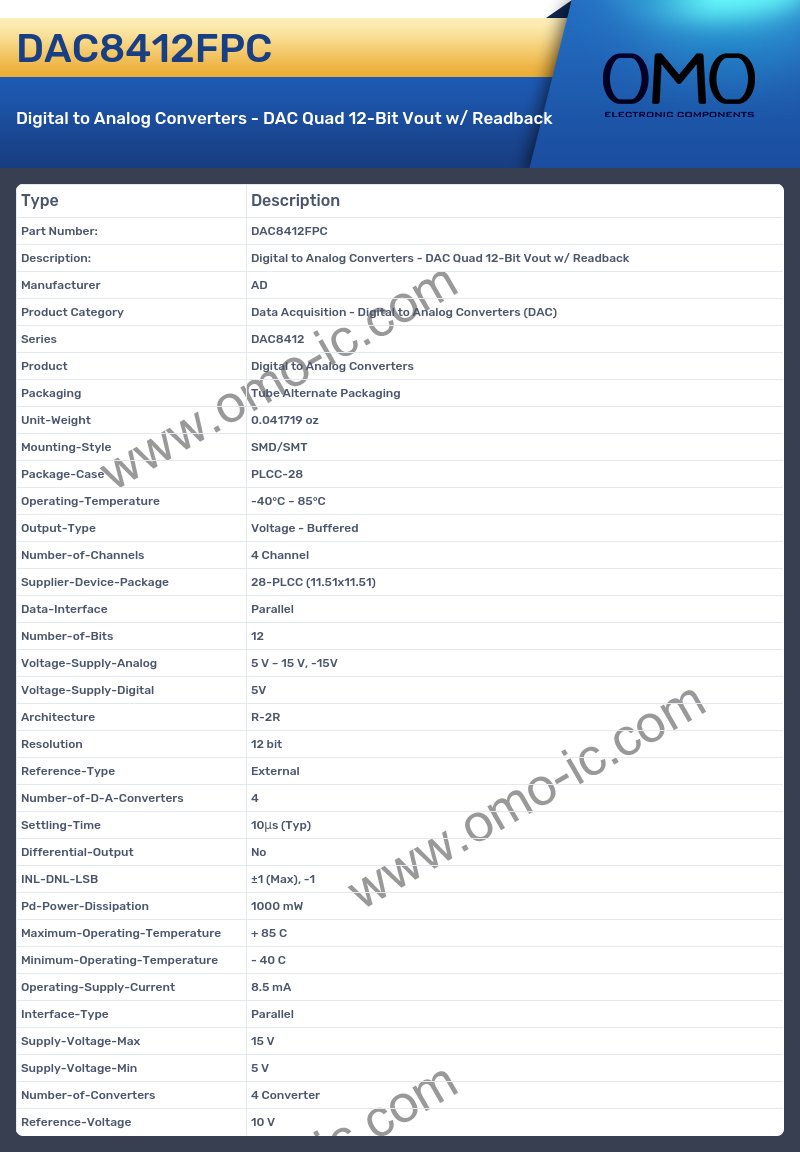

DAC8412FPC Specifications

• Manufacturer AD
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DAC8412
• Product Digital to Analog Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.041719 oz
• Mounting-Style SMD/SMT
• Package-Case PLCC-28
• Operating-Temperature -40°C ~ 85°C
• Output-Type Voltage - Buffered
• Number-of-Channels 4 Channel
• Supplier-Device-Package 28-PLCC (11.51x11.51)
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog 5 V ~ 15 V, -15V
• Voltage-Supply-Digital 5V
• Architecture R-2R
• Resolution 12 bit
• Reference-Type External
• Number-of-D-A-Converters 4
• Settling-Time 10μs (Typ)
• Differential-Output No
• INL-DNL-LSB ±1 (Max), -1
• Pd-Power-Dissipation 1000 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 8.5 mA
• Interface-Type Parallel
• Supply-Voltage-Max 15 V
• Supply-Voltage-Min 5 V
• Number-of-Converters 4 Converter
• Reference-Voltage 10 V
