DAC902EG4

DAC902EG4 Overview

Product belongs to the SpeedPlus series. This product is categorized as Digital to Analog Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.004145 oz SMD/SMT Mounting-Style TSSOP-28 Operational temperature range: -40°C ~ 85°C Output-Type: Current - Unbuffered Number of channels: 1 Channel Supplier device package: 28-TSSOP Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is 2.7 V ~ 5.5 V. The Voltage Supply Digital for this product is 2.7 V ~ 5.5 V. The architecture of this product is Current Source . External, Internal is the reference type. Number of D-A converters: 1 The 30μs (Typ) is an impressive 15 us. Yes Differential-Output Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel interface type Maximum supply voltage of 5.5 V Minimum supply voltage is 2.7 V Number-of-Converters: 1 Converter 200 MS/s Sampling Rate

DAC902EG4 Image

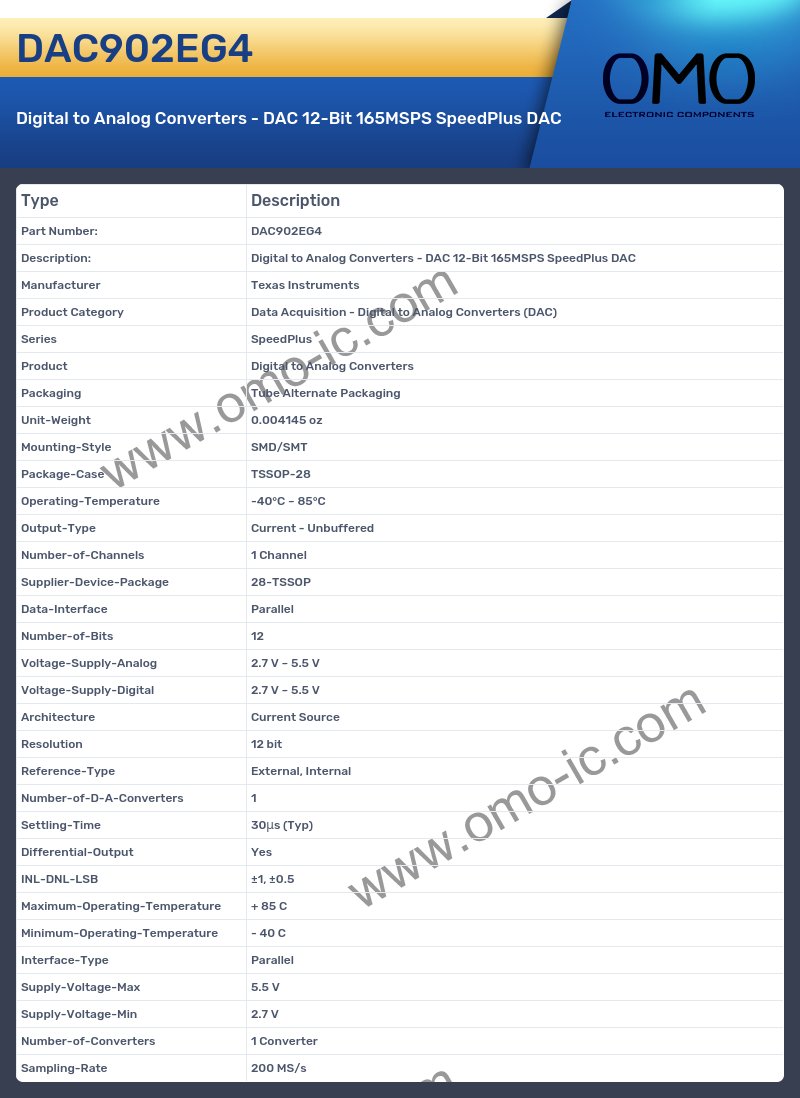

DAC902EG4 Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series SpeedPlus
• Product Digital to Analog Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.004145 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-28
• Operating-Temperature -40°C ~ 85°C
• Output-Type Current - Unbuffered
• Number-of-Channels 1 Channel
• Supplier-Device-Package 28-TSSOP
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog 2.7 V ~ 5.5 V
• Voltage-Supply-Digital 2.7 V ~ 5.5 V
• Architecture Current Source
• Resolution 12 bit
• Reference-Type External, Internal
• Number-of-D-A-Converters 1
• Settling-Time 30μs (Typ)
• Differential-Output Yes
• INL-DNL-LSB ±1, ±0.5
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2.7 V
• Number-of-Converters 1 Converter
• Sampling-Rate 200 MS/s
