DN1509N8-G

DN1509N8-G Overview

Reel is the packaging method for this product Weight of 0.001862 oz SMD/SMT Mounting-Style SOT-89-3 Si is the technology used. Number of channels: 1 Channel Configuration Single Dual Drain Transistor type: 1 N-Channel Power-off control: 1.6 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 16 ns of 16 ns. This product has a 16 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 360 mA. This product has a Vds-Drain-Source-Breakdown-Voltageof 90 V. The 6 Ohms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 15 ns This product has a 12 ns. This product operates in Depletion channel mode for optimal performance.

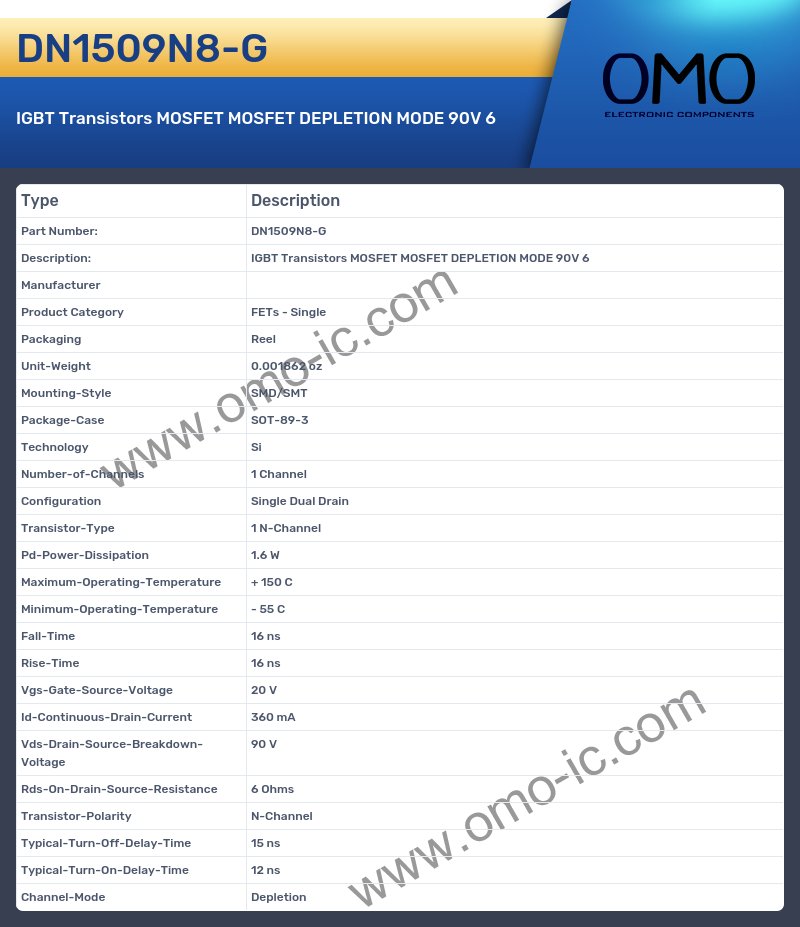

DN1509N8-G Image

DN1509N8-G Specifications

• Manufacturer
• Product Category FETs - Single
• Packaging Reel
• Unit-Weight 0.001862 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-89-3
• Technology Si
• Number-of-Channels 1 Channel
• Configuration Single Dual Drain
• Transistor-Type 1 N-Channel
• Pd-Power-Dissipation 1.6 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 16 ns
• Rise-Time 16 ns
• Vgs-Gate-Source-Voltage 20 V
• Id-Continuous-Drain-Current 360 mA
• Vds-Drain-Source-Breakdown-Voltage 90 V
• Rds-On-Drain-Source-Resistance 6 Ohms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 15 ns
• Typical-Turn-On-Delay-Time 12 ns
• Channel-Mode Depletion
