DRV777DR

DRV777DR Overview

Product belongs to the DRV777 series. This product is categorized as Electromechanical Drivers Type: 7-bit Integrated Motor and Relay Driver Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.023492 oz SMD/SMT Mounting-Style Wide - 40 C to + 125 C operating temperature range for diverse applications SOIC-16 NMOS is the technology used. Operational temperature range: -40°C ~ 125°C (TJ) Surface Mount mounting type Product function is Driver - Fully Integrated, Control and Power Stage. Versatile General Purpose applications for maximum usability Interface: Parallel Voltage Supply Range: 5 V ~ 20 V Supplier device package: 16-SOIC Number-of-Outputs: 7 The Low Side (7). Voltage-Load range is 5 V ~ 20 V. Brushed DC motor type is used for high-performance and efficient operation. Power-off control: 0.86 W This product operates at a 5 V to 20 V supply voltage for reliable performance. Output voltage: 0.4 V 1 A is 92 nA. This product is rated for 16 V load voltage for versatile use. Output current: 1 A

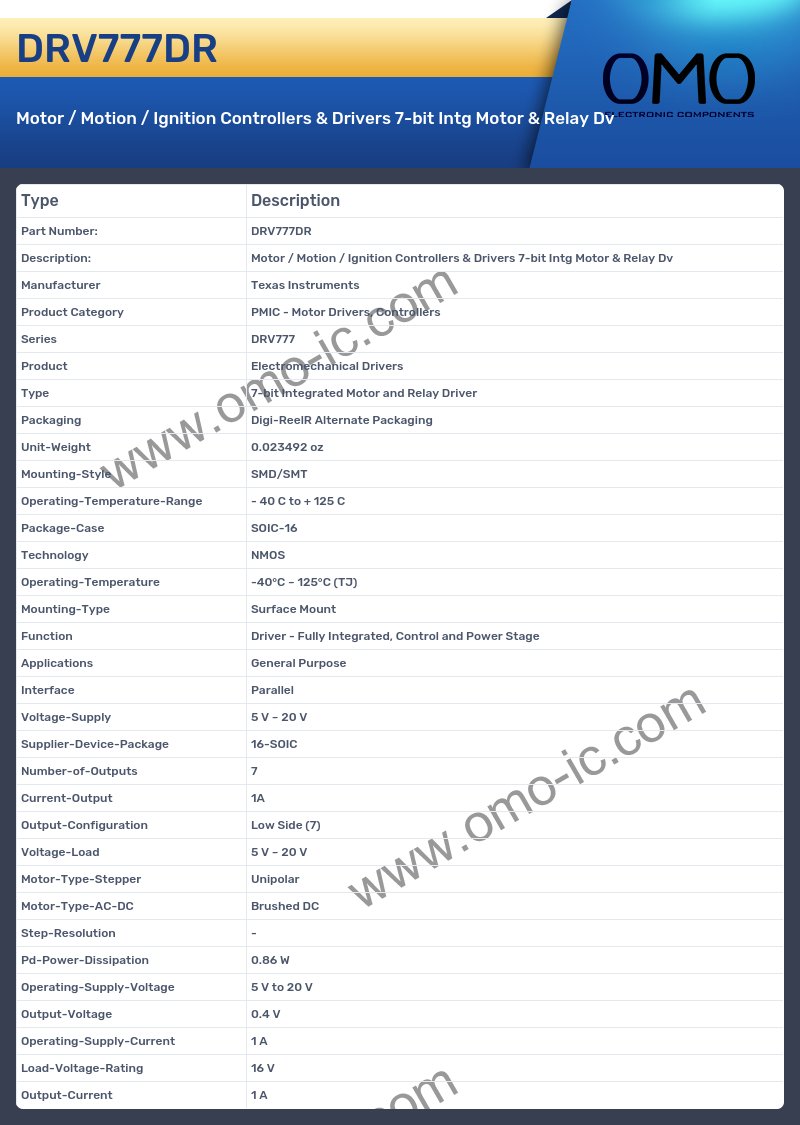

DRV777DR Image

DRV777DR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Motor Drivers, Controllers
• Series DRV777
• Product Electromechanical Drivers
• Type 7-bit Integrated Motor and Relay Driver
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.023492 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 125 C
• Package-Case SOIC-16
• Technology NMOS
• Operating-Temperature -40°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Function Driver - Fully Integrated, Control and Power Stage
• Applications General Purpose
• Interface Parallel
• Voltage-Supply 5 V ~ 20 V
• Supplier-Device-Package 16-SOIC
• Number-of-Outputs 7
• Current-Output 1A
• Output-Configuration Low Side (7)
• Voltage-Load 5 V ~ 20 V
• Motor-Type-Stepper Unipolar
• Motor-Type-AC-DC Brushed DC
• Step-Resolution -
• Pd-Power-Dissipation 0.86 W
• Operating-Supply-Voltage 5 V to 20 V
• Output-Voltage 0.4 V
• Operating-Supply-Current 1 A
• Load-Voltage-Rating 16 V
• Output-Current 1 A
