DRV8804DW

DRV8804DW Overview

Product belongs to the DRV8804 series. Tube Alternate Packaging is the packaging method for this product Weight of 0.028254 oz Wide - 40 C to + 85 C operating temperature range for diverse applications SOIC-20 Wide Power MOSFET is the technology used. Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Product function is Driver - Fully Integrated, Control and Power Stage. Versatile General Purpose applications for maximum usability Interface: SPI Voltage Supply Range: 8.2 V ~ 60 V Supplier device package: 20-SOIC Number-of-Outputs: 4 Output The Low Side (4). Voltage-Load range is 8.2 V ~ 60 V. Brushed DC motor type is used for high-performance and efficient operation. This product operates at a 8.2 V to 60 V supply voltage for reliable performance. 1.6 mA is 92 nA. Output current: 2 A The DRV8804EVM.

DRV8804DW Image

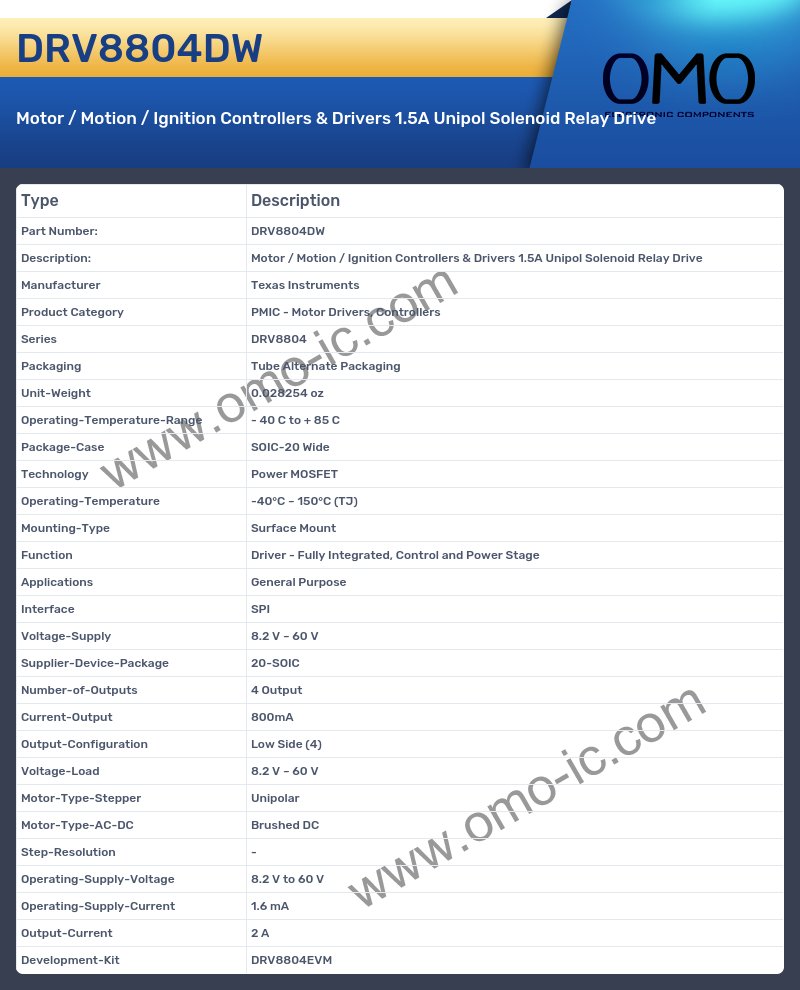

DRV8804DW Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Motor Drivers, Controllers
• Series DRV8804
• Packaging Tube Alternate Packaging
• Unit-Weight 0.028254 oz
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case SOIC-20 Wide
• Technology Power MOSFET
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Function Driver - Fully Integrated, Control and Power Stage
• Applications General Purpose
• Interface SPI
• Voltage-Supply 8.2 V ~ 60 V
• Supplier-Device-Package 20-SOIC
• Number-of-Outputs 4 Output
• Current-Output 800mA
• Output-Configuration Low Side (4)
• Voltage-Load 8.2 V ~ 60 V
• Motor-Type-Stepper Unipolar
• Motor-Type-AC-DC Brushed DC
• Step-Resolution -
• Operating-Supply-Voltage 8.2 V to 60 V
• Operating-Supply-Current 1.6 mA
• Output-Current 2 A
• Development-Kit DRV8804EVM
