DRV8833PWP

DRV8833PWP Overview

Product belongs to the DRV8833 series. This product is categorized as Brushed DC Motor Drivers Type: Dual H-Bridge Driver Tube Alternate Packaging is the packaging method for this product Weight of 0.002212 oz SMD/SMT Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications HTSSOP-16 NMOS is the technology used. Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Versatile DC Motors, General Purpose, Solenoids, Stepper Motors applications for maximum usability Interface: PWM Voltage Supply Range: 2.7 V ~ 10.8 V Supplier device package: 16-HTSSOP Number-of-Outputs: 2 Output Current-Output-Channel is 1.5A The Half Bridge (4). This product supports a Inductive of Inductive, Capacitive, Resistive for versatile applications. The 160 mOhm LS, 200 mOhm HS. The product's 2A is 4A. Voltage-Load range is 2.7 V ~ 10.8 V. This product operates at a 2.7 V to 10.8 V supply voltage for reliable performance. 1.7 mA to 3 mA is 92 nA. Output current: 1.5 A The DRV8833EVM.

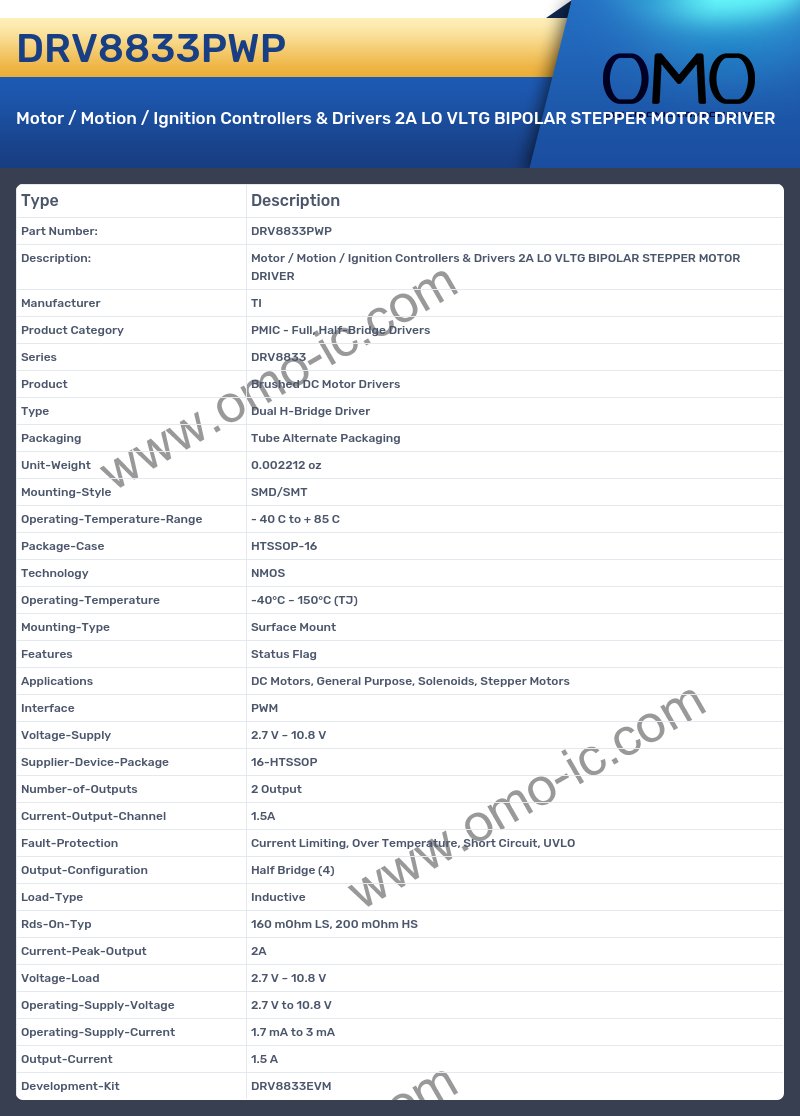

DRV8833PWP Image

DRV8833PWP Specifications

• Manufacturer TI
• Product Category PMIC - Full, Half-Bridge Drivers
• Series DRV8833
• Product Brushed DC Motor Drivers
• Type Dual H-Bridge Driver
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002212 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case HTSSOP-16
• Technology NMOS
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Features Status Flag
• Applications DC Motors, General Purpose, Solenoids, Stepper Motors
• Interface PWM
• Voltage-Supply 2.7 V ~ 10.8 V
• Supplier-Device-Package 16-HTSSOP
• Number-of-Outputs 2 Output
• Current-Output-Channel 1.5A
• Fault-Protection Current Limiting, Over Temperature, Short Circuit, UVLO
• Output-Configuration Half Bridge (4)
• Load-Type Inductive
• Rds-On-Typ 160 mOhm LS, 200 mOhm HS
• Current-Peak-Output 2A
• Voltage-Load 2.7 V ~ 10.8 V
• Operating-Supply-Voltage 2.7 V to 10.8 V
• Operating-Supply-Current 1.7 mA to 3 mA
• Output-Current 1.5 A
• Development-Kit DRV8833EVM
