DS3486M

DS3486M Overview

Product belongs to the DS3486 series. Type: Receiver Tube is the packaging method for this product Weight of 0.019312 oz SMD/SMT Mounting-Style SOIC-16 Narrow Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Voltage Supply Range: 4.75 V ~ 5.25 V Supplier device package: 16-SOIC This product has a 0/4 number of drivers and receivers. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C This product operates at a 5 V supply voltage for reliable performance. 85 mA is 92 nA. RS-422 RS-423 interface type The product has 4 Receiver receivers. Signal type of the receiver is Differential.

DS3486M Image

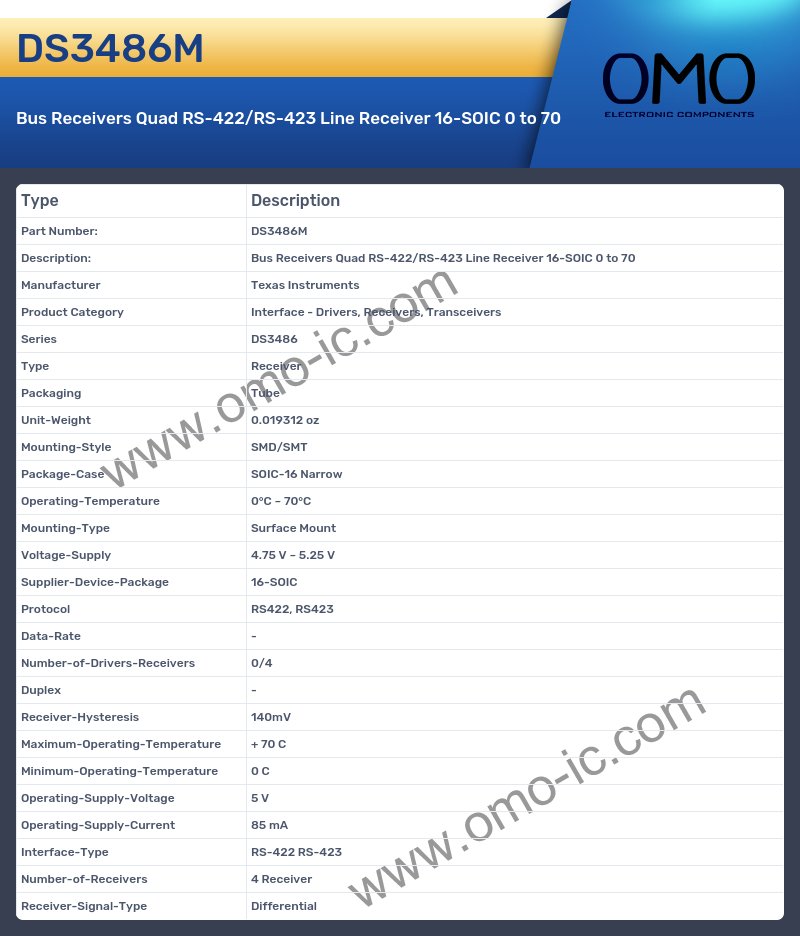

DS3486M Specifications

• Manufacturer Texas Instruments
• Product Category Interface - Drivers, Receivers, Transceivers
• Series DS3486
• Type Receiver
• Packaging Tube
• Unit-Weight 0.019312 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16 Narrow
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Voltage-Supply 4.75 V ~ 5.25 V
• Supplier-Device-Package 16-SOIC
• Protocol RS422, RS423
• Data-Rate -
• Number-of-Drivers-Receivers 0/4
• Duplex -
• Receiver-Hysteresis 140mV
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Voltage 5 V
• Operating-Supply-Current 85 mA
• Interface-Type RS-422 RS-423
• Number-of-Receivers 4 Receiver
• Receiver-Signal-Type Differential
