DSPIC33EP128MC502-E/MM

DSPIC33EP128MC502-E/MM Overview

Product belongs to the dsPIC 33EP series. Tube is the packaging method for this product 28-VQFN Exposed Pad Operational temperature range: -40°C ~ 125°C (TA) Supplier device package: 28-QFN-S (6x6) This product has 21 I/O ports for versatile connectivity. Operating frequency: 60 MIPs Program memory type: FLASH CAN, I2C, IrDA, LIN, QEI, SPI, UART/USART interface Supply Voltage: 3 V ~ 3.6 V 16-Bit architecture Internal oscillator type

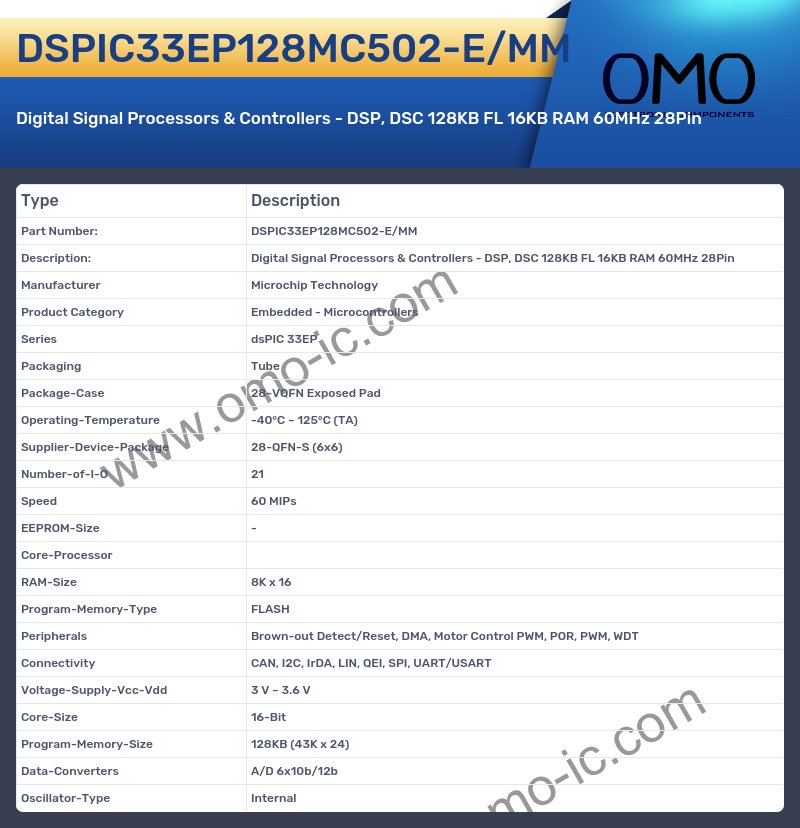

DSPIC33EP128MC502-E/MM Image

DSPIC33EP128MC502-E/MM Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series dsPIC 33EP
• Packaging Tube
• Package-Case 28-VQFN Exposed Pad
• Operating-Temperature -40°C ~ 125°C (TA)
• Supplier-Device-Package 28-QFN-S (6x6)
• Number-of-I-O 21
• Speed 60 MIPs
• EEPROM-Size -
• Core-Processor
• RAM-Size 8K x 16
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, WDT
• Connectivity CAN, I2C, IrDA, LIN, QEI, SPI, UART/USART
• Voltage-Supply-Vcc-Vdd 3 V ~ 3.6 V
• Core-Size 16-Bit
• Program-Memory-Size 128KB (43K x 24)
• Data-Converters A/D 6x10b/12b
• Oscillator-Type Internal

DSPIC33EP128MC502-E/MM FAQ

• A: At what frequency does the Series?

  Q: The product Series is dsPIC 33EP.

• A: At what frequency does the Packaging?

  Q: The product Packaging is Tube.

• A: What is the Package-Case of the product?

  Q: The Package-Case of the product is 28-VQFN Exposed Pad.

• A: What is the Operating-Temperature of the product?

  Q: The Operating-Temperature of the product is -40°C ~ 125°C (TA).

• A: At what frequency does the Supplier-Device-Package?

  Q: The product Supplier-Device-Package is 28-QFN-S (6x6).

• A: At what frequency does the Number-of-I-O?

  Q: The product Number-of-I-O is 21.

• A: At what frequency does the Speed?

  Q: The product Speed is 60 MIPs.

• A: What is the Program-Memory-Type of the product?

  Q: The Program-Memory-Type of the product is FLASH.

• A: What is the Connectivity of the product?

  Q: The Connectivity of the product is CAN, I2C, IrDA, LIN, QEI, SPI, UART/USART.

• A: What is the Voltage-Supply-Vcc-Vdd of the product?

  Q: The Voltage-Supply-Vcc-Vdd of the product is 3 V ~ 3.6 V.

• A: Is the cutoff frequency of the product Core-Size?

  Q: Yes, the product's Core-Size is indeed 16-Bit

• A: What is the Oscillator-Type of the product?

  Q: The Oscillator-Type of the product is Internal.
