DSPIC33FJ09GS302-E/SS

DSPIC33FJ09GS302-E/SS Overview

Product belongs to the dsPIC 33F series. Tube is the packaging method for this product 28-SSOP (0.209", 5.30mm Width) Operational temperature range: -40°C ~ 125°C (TA) Supplier device package: 28-SSOP This product has 21 I/O ports for versatile connectivity. Operating frequency: 40 MIPs Program memory type: FLASH I2C, IrDA, LIN, SPI, UART/USART interface Supply Voltage: 3 V ~ 3.6 V 16-Bit architecture Internal oscillator type

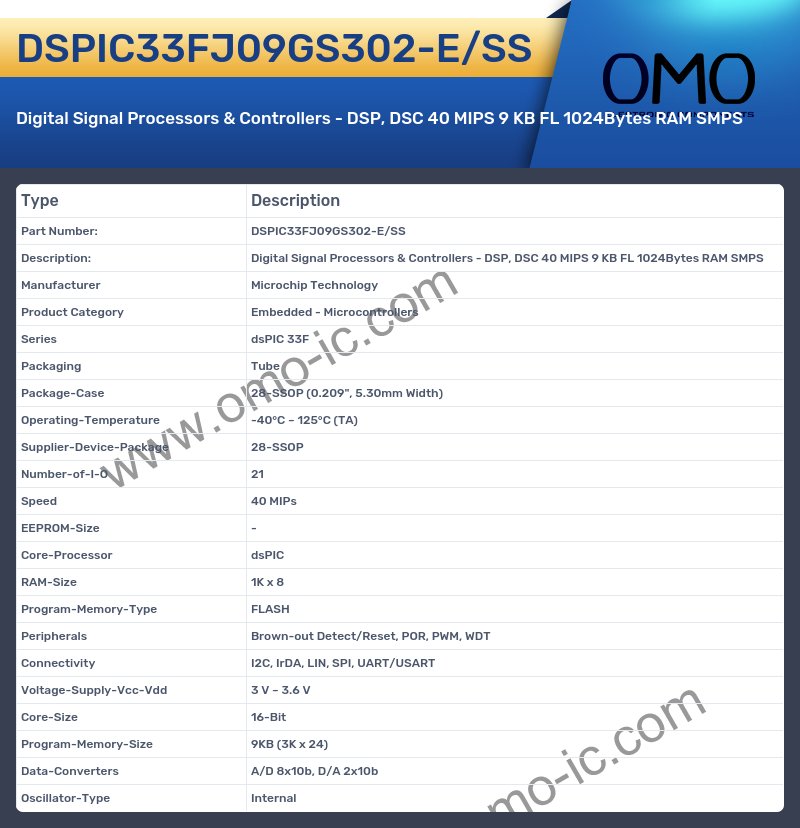

DSPIC33FJ09GS302-E/SS Image

DSPIC33FJ09GS302-E/SS Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series dsPIC 33F
• Packaging Tube
• Package-Case 28-SSOP (0.209", 5.30mm Width)
• Operating-Temperature -40°C ~ 125°C (TA)
• Supplier-Device-Package 28-SSOP
• Number-of-I-O 21
• Speed 40 MIPs
• EEPROM-Size -
• Core-Processor dsPIC
• RAM-Size 1K x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, POR, PWM, WDT
• Connectivity I2C, IrDA, LIN, SPI, UART/USART
• Voltage-Supply-Vcc-Vdd 3 V ~ 3.6 V
• Core-Size 16-Bit
• Program-Memory-Size 9KB (3K x 24)
• Data-Converters A/D 8x10b, D/A 2x10b
• Oscillator-Type Internal
