E-L9823013TR

E-L9823013TR Overview

Product belongs to the L9823 series. This product is categorized as Driver ICs - Various Type: Low Side Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.010857 oz SMD/SMT Mounting-Style SO-24 The - for this product is CMOS/TTL. Operational temperature range: -40°C ~ 150°C (TJ) Output-Type: N-Channel Interface: SPI Supplier device package: 24-SO The Ratio-Input:Output for this product is 1899/12/30 1:08:00. Number-of-Outputs: 8 Supply Voltage: - The Low Side. The 800 mOhm. Voltage-Load range is 4.5 V ~ 5.5 V. Our product delivers a 500mA of 50mA for efficient power management. The Switch-Type is General Purpose. Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C Output voltage: 50 V 6 mA is 92 nA. Output current: 2 A Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V Number-of-Drivers: 8 Driver This product has a Maximum-Turn-Off-Delay-Time of 20 us. 20 us maximum turn-on delay time

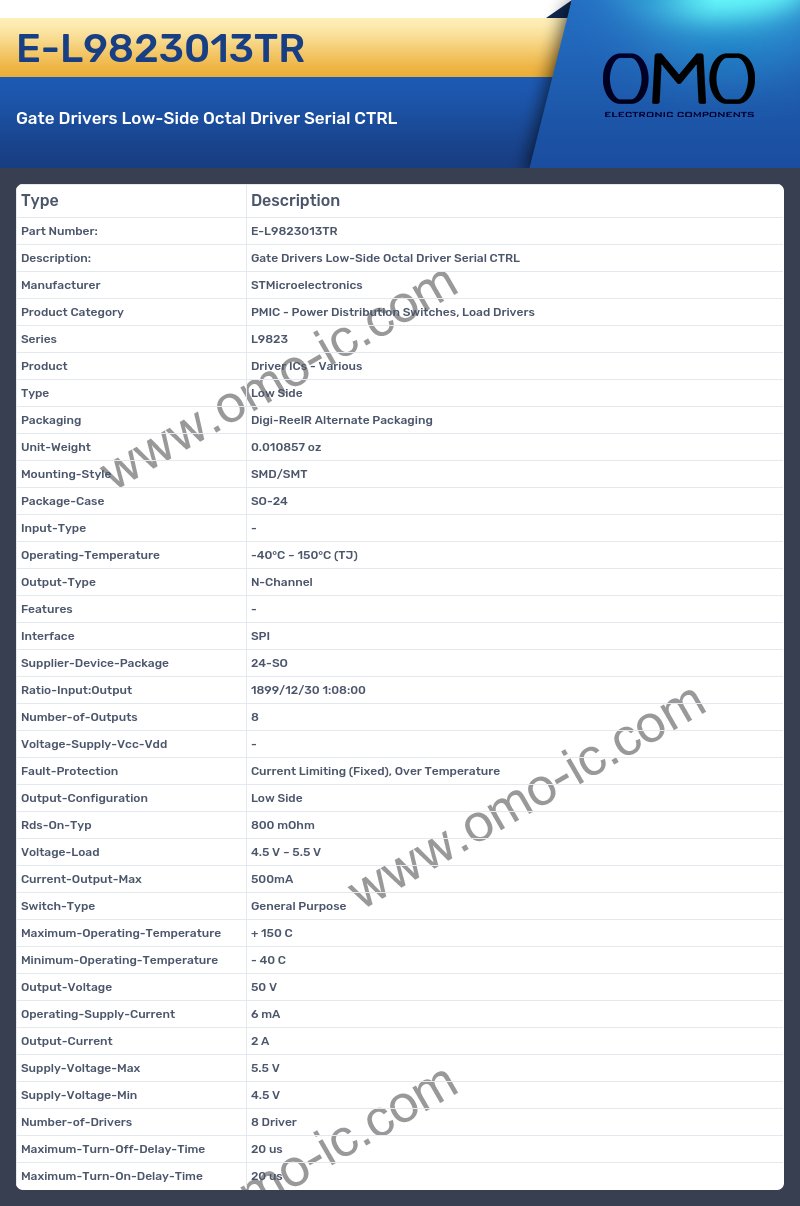

E-L9823013TR Image

E-L9823013TR Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series L9823
• Product Driver ICs - Various
• Type Low Side
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.010857 oz
• Mounting-Style SMD/SMT
• Package-Case SO-24
• Input-Type -
• Operating-Temperature -40°C ~ 150°C (TJ)
• Output-Type N-Channel
• Features -
• Interface SPI
• Supplier-Device-Package 24-SO
• Ratio-Input:Output 1899/12/30 1:08:00
• Number-of-Outputs 8
• Voltage-Supply-Vcc-Vdd -
• Fault-Protection Current Limiting (Fixed), Over Temperature
• Output-Configuration Low Side
• Rds-On-Typ 800 mOhm
• Voltage-Load 4.5 V ~ 5.5 V
• Current-Output-Max 500mA
• Switch-Type General Purpose
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 50 V
• Operating-Supply-Current 6 mA
• Output-Current 2 A
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Number-of-Drivers 8 Driver
• Maximum-Turn-Off-Delay-Time 20 us
• Maximum-Turn-On-Delay-Time 20 us
